spoked handwheel

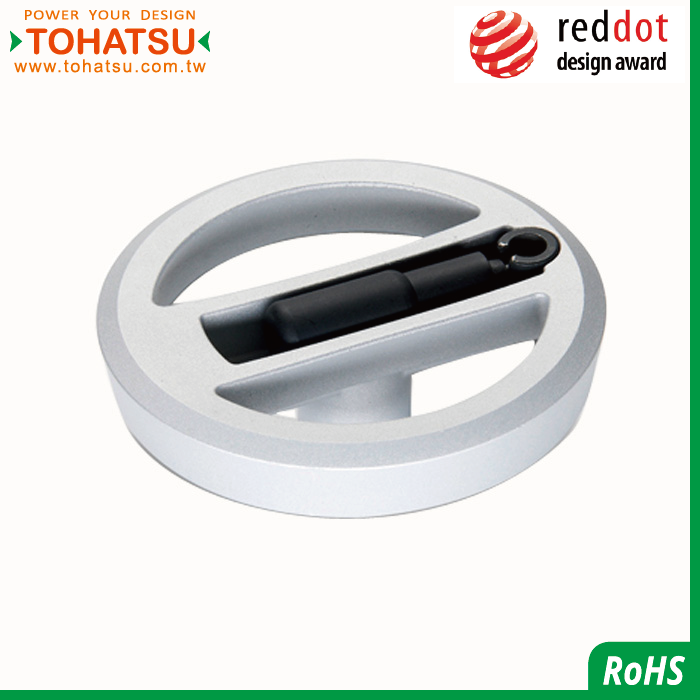

Spoke handwheel (folding rotary handle) (material: aluminum)
SGR924.3

Various handwheels are often used in machine tool equipment and mechanical operation, which can not only help us operate mechanical equipment, but also reduce manpower.
Common handwheel categories are: spoke handwheel, dial handwheel, solid handwheel

Wheel of Fortune
Advantages: 1. Beautiful appearance. 2. Aging resistance, corrosion resistance, high temperature resistance, good insulation. 3. Lightweight and sturdy structure.
It is suitable for printing, food, woodworking, medical and other machinery and equipment industries, and has a long service life.

dial handwheel
Advantages: smooth surface, user-friendly design, good feel, sturdy and durable, accurate reading, beautiful mechanical structure.
It is suitable for precise display or reading adjustment of various machine tools, CNC machine tools and other mechanical equipment in woodworking, printing, food, medical treatment, etc.

Solid handwheel
Advantages: 1. Good insulation. 2. Good temperature resistance. 3. Strong mechanical hardness. 4. Corrosion resistance. 5. Anti-aging. 6. Anti-friction. 7. Not easy to deform.
Suitable for various mechanical adjustments

Specification

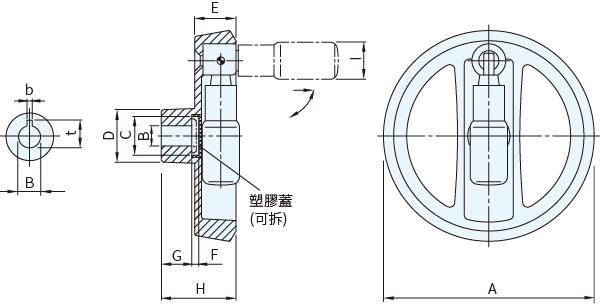

尺寸圖/Dimensional drawing
DIN6885 鍵槽規格
B 10 12 14 16 18 22 26 30 34
b 3 4 5 5 6 6 8 8 10
t 11.4 13.8 16.3 18.3 20.8 24.8 29.3 33.3 37.3
品號
A
B(H7)
C
D
E
F
G
H
I
備註
SGR924.3-0010 125 12 23 31 24.5 4 18 45 22 無鍵槽
SGR924.3-0020 140 14 23 36 26 4 19 47 24 無鍵槽
SGR924.3-0030 160 14 23 36 26 4 20 48 24 無鍵槽
SGR924.3-0040 200 18 23 42 27 4 24 53 25 無鍵槽
SGR924.3-0012 125 12 23 31 24.5 4 18 45 22 有鍵槽
SGR924.3-0022 140 14 23 36 26 4 19 47 24 有鍵槽
SGR924.3-0032 160 14 23 36 26 4 20 48 24 有鍵槽
SGR924.3-0042 200 18 23 42 27 4 24 53 25 有鍵槽
SGR924.3-0011 125 14 23 31 24.5 4 18 45 22 無鍵槽
SGR924.3-0021 140 16 23 36 26 4 19 47 24 無鍵槽
SGR924.3-0031 160 16 23 36 26 4 20 48 24 無鍵槽
SGR924.3-0041 200 20 23 42 27 4 24 53 25 無鍵槽
SGR924.3-0013 125 14 23 31 24.5 4 18 45 22 有鍵槽
SGR924.3-0023 140 16 23 36 26 4 19 47 24 有鍵槽
SGR924.3-0033 160 16 23 36 26 4 20 48 24 有鍵槽
SGR924.3-0043 200 20 23 42 27 4 24 53 25 有鍵槽
