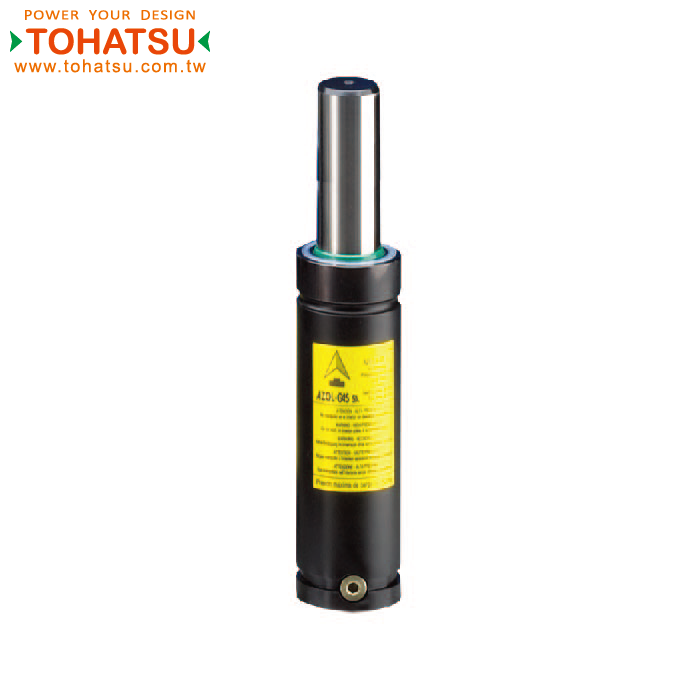

Nitrogen Aas Spring
Gas spring (ISO standard (initial load 250kgf))
AG

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Specification

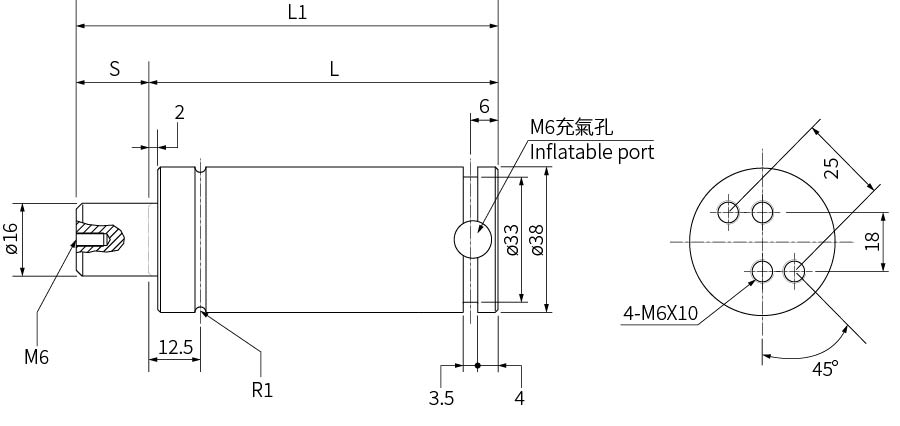

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
AG-250X10 20~150 0~80 1.6 10 10 70 60
AG-250X13 20~150 0~80 1.6 13 13 76 63
AG-250X16 20~150 0~80 1.6 16 16 82 66
AG-250X19 20~150 0~80 1.6 19 19 88 69
AG-250X25 20~150 0~80 1.6 25 25 100 75
AG-250X38 20~150 0~80 1.6 38 38 126 88
AG-250X50 20~150 0~80 1.6 50 50 150 100
AG-250X63 20~150 0~80 1.6 63 63.5 177 113.5
AG-250X80 20~150 0~80 1.6 80 80 210 130
AG-250X100 20~150 0~80 1.6 100 100 250 150
AG-250X125 20~150 0~80 1.6 125 125 300 175
