Nitrogen Aas Spring

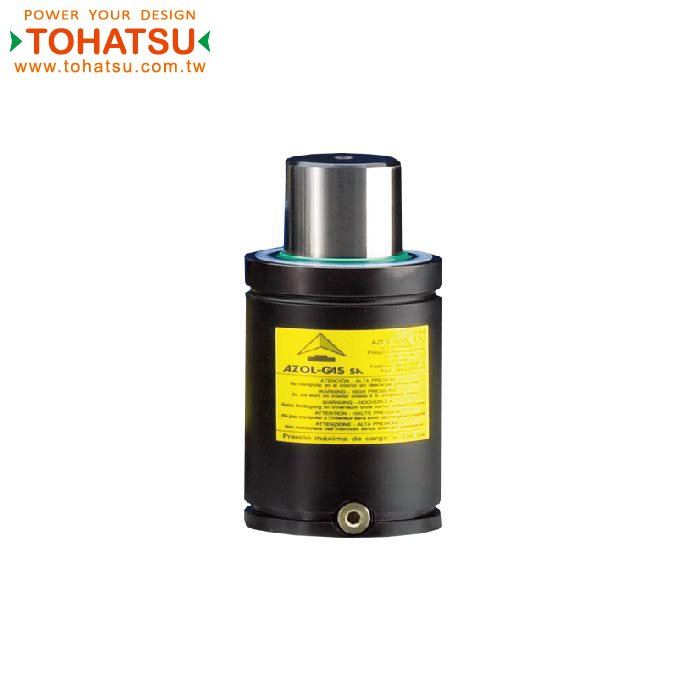

Gas spring (compact height type (initial load 500kgf))
CW

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
CW-500X10 20~150 0~80 1.6 10 50 40 0.24
CW-500X13 20~150 0~80 1.6 13 56 43 0.26
CW-500X16 20~150 0~80 1.6 16 62 46 0.27
CW-500X19 20~150 0~80 1.6 19 68 49 0.28
CW-500X25 20~150 0~80 1.6 25 80 55 0.31
CW-500X32 20~150 0~80 1.6 32 94 62 0.33
CW-500X38 20~150 0~80 1.6 38 106 68 0.36
CW-500X50 20~150 0~80 1.6 50 130 80 0.41
CW-500X63 20~150 0~80 1.6 63 156 93 0.46
CW-500X75 20~150 0~80 1.6 75 180 105 0.51
CW-500X80 20~150 0~80 1.6 80 190 110 0.53
CW-500X100 20~150 0~80 1.6 100 230 130 0.61
CW-500X125 20~150 0~80 1.6 125 280 155 0.71
