Products

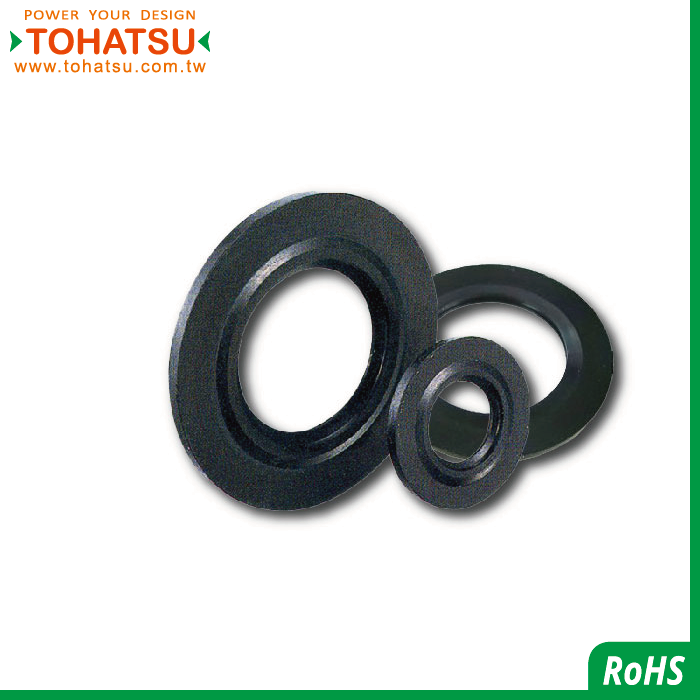

Seal Washers
Seal Washers(Standard type II)
SPCW SUSW SPCW-F

Gasket is a kind of sealing spare parts used in machinery, equipment and pipelines as long as there is fluid. It uses internal and external materials to play a sealing role.
Important 4 factors affecting gasket selection (temperature, application, medium, pressure)
Standard of use of rubber gasket:
1. Good elasticity and recovery
2. Can fit well with the contact surface
3. Does not pollute the medium
4. No hardening at low temperature
5. Small shrinkage and easy disassembly.

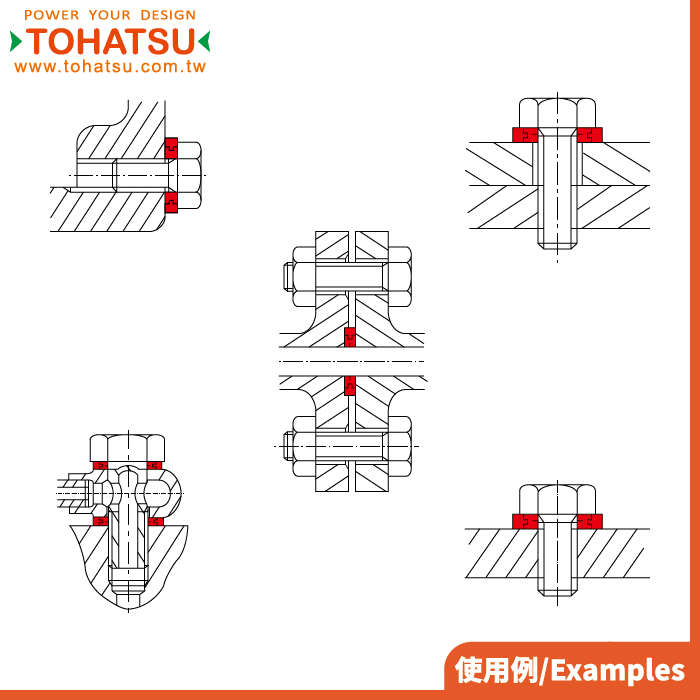

●Product introduction
Features of Gaskets
1. Has excellent leak-proof function.
2. Excellent oil resistance, heat resistance and weather resistance
3. Can be used repeatedly (2 to 3 times).
4. Excellent usability.
When using ferrules, there is no need to distinguish between front and back.
Even if the gasket is installed in the screw, turn the screw down and it will not come off.

●Precautions for use
1. Aperture:
Standard type I uses JIS B 1001 bolt hole diameter class 2 or less, and chamfered thread chamfer (approximately C0.2).
Standard II type and nut type, use JIS B 1001 bolt hole diameter class 1 or less, chamfered thread chamfer (about C0.2).
2. Surface roughness of the contact surface of the mounting part:
According to JIS B 0601, the finish of the contact surface of the gasket mounting portion should be 10 μmRz or less.
3. Applicable temperature:

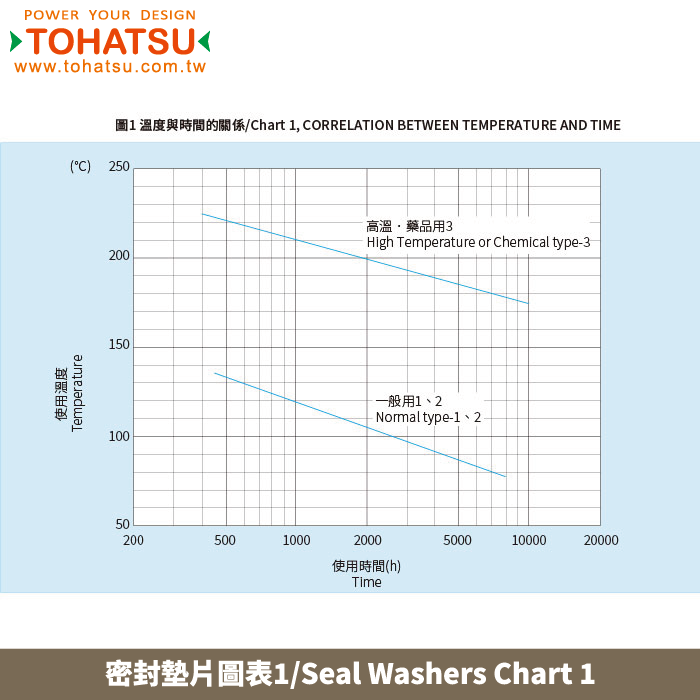

This depends on the type of gasket and the conditions of use. Figure 1 shows an example of the relationship between operating temperature and operating time.
4. Working limit pressure:
It depends on the type and size of the gasket.

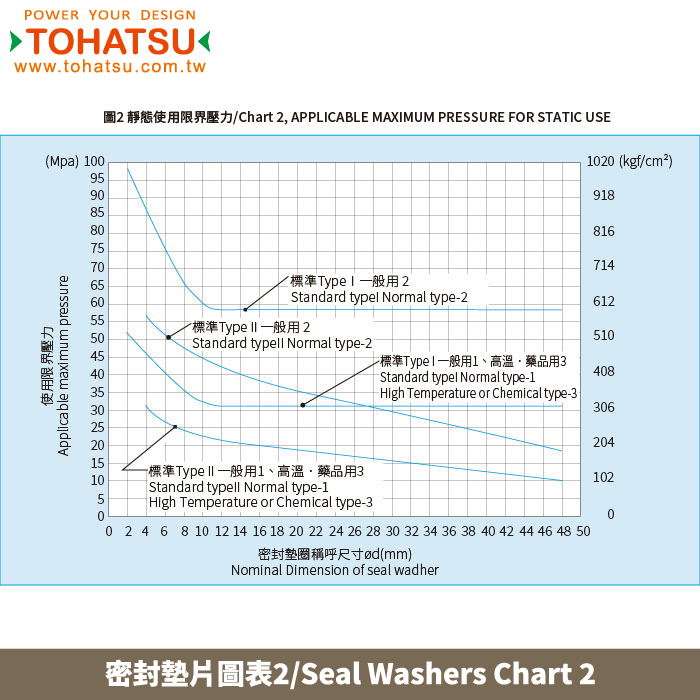

1) Figure 2 shows examples of working limit pressures using standard Types I, II and III static pressures. When used under fluctuating pressure, the working limit pressure should be the static working limit pressure × 0.4 times.
2) Thread use type
Regardless of size, the working ultimate pressure should be 294 kPa {3 kgf/cm2}.
5. Tightening torque
Gasket tightening torque may vary depending on gasket type, screw type used, lubrication conditions and tightening speed.
6. The thread type cannot be used for screws and bolts with different pitches.
7. The SUS304 core metal used in our gaskets is generally non-magnetic, but may show magnetic properties due to press processing.
8. Since the oil (liquid) used, the environment of use, the conditions of use and installation conditions will have different effects on the function of the product, it is recommended that customers check before use.

●Save the precautions for use
1. Store in a cool and dark place, avoid direct sunlight and high temperature (40℃ or higher).
2. Be careful not to damage the rubber part when assembling.
3. It is recommended to use it up within two years

Specification

尺寸圖\Dimensions
規格表\Specification Table
品號
用途
橡膠材質+墊圈材質
適用稱呼尺寸
螺絲/螺栓
適用稱呼尺寸
孔徑
密封墊華司尺寸
d
密封墊華司尺寸
D
密封墊華司尺寸
D1
密封墊華司尺寸
T
最大鎖緊力矩kgf.cm
SPCW-4-S1 一般用 NBR+SPCC M4 4.5 3.8 9.2 7 1.2 -
SPCW-5-S1 一般用 NBR+SPCC M5 5.5 4.8 10 8 1.2 -
SPCW-6-S1 一般用 NBR+SPCC M6 6.6 5.8 11 7.5 1.2 81
SPCW-8-S1 一般用 NBR+SPCC M8 9 7.8 13.5 10 1.2 174
SPCW-10-S1 一般用 NBR+SPCC M10 11 9.8 15.5 12 1.2 320
SPCW-12-S1 一般用 NBR+SPCC M12 13.5 11.8 18 14 1.2 530
SPCW-14-S1 一般用 NBR+SPCC M14 15.5 13.8 20 16.5 1.2 610
SPCW-16-S1 一般用 NBR+SPCC M16 17.5 15.8 22.5 18.5 1.2 910
SPCW-18-S1 一般用 NBR+SPCC M18 20 17.8 24.5 20.5 1.2 1130
SPCW-20-S1 一般用 NBR+SPCC M20 22 19.8 26.5 22.5 1.2 -
SPCW-22-S1 一般用 NBR+SPCC M22 24 21.75 30 26 1.6(1.5) 1910
SPCW-24-S1 一般用 NBR+SPCC M24 26 23.75 32 27 1.6(1.5) 2550
SPCW-27-S1 一般用 NBR+SPCC M27 30 26.75 35 30 1.6(1.5) 3170
SPCW-30-S1 一般用 NBR+SPCC M30 33 29.75 38 33 1.6(1.5) 3830
SPCW-33-S1 一般用 NBR+SPCC M33 36 32.75 41 36 1.6(1.5) 4580
SPCW-36-S1 一般用 NBR+SPCC M36 39 35.75 44.5 39.5 1.6(1.5) 5440
SPCW-42-S1 一般用 NBR+SPCC M42 45 41.7 50.5 45.5 1.6(1.5) 7270
SPCW-48-S1 一般用 NBR+SPCC M48 52 47.7 56 51.8 1.6(1.5) 8230
SUSW-4-S1 一般用 NBR+SUS304 M4 4.5 3.8 9.2 7 1.2 -
SUSW-5-S1 一般用 NBR+SUS304 M5 5.5 4.8 10 8 1.2 -
SUSW-6-S1 一般用 NBR+SUS304 M6 6.6 5.8 11 7.5 1.2 81
SUSW-8-S1 一般用 NBR+SUS304 M8 9 7.8 13.5 10 1.2 174
SUSW-10-S1 一般用 NBR+SUS304 M10 11 9.8 15.5 12 1.2 320
SUSW-12-S1 一般用 NBR+SUS304 M12 13.5 11.8 18 14 1.2 530
SUSW-14-S1 一般用 NBR+SUS304 M14 15.5 13.8 20 16.5 1.2 610
SUSW-16-S1 一般用 NBR+SUS304 M16 17.5 15.8 22.5 18.5 1.2 910
SUSW-20-S1 一般用 NBR+SUS304 M20 22 19.8 26.5 22.5 1.2 -
SUSW-22-S1 一般用 NBR+SUS304 M22 24 21.75 30 26 1.6(1.5) 1910
SUSW-24-S1 一般用 NBR+SUS304 M24 26 23.75 32 27 1.6(1.5) 2550
SUSW-27-S1 一般用 NBR+SUS304 M27 30 26.75 35 30 1.6(1.5) 3170
SUSW-30-S1 一般用 NBR+SUS304 M30 33 29.75 38 33 1.6(1.5) 3830
SUSW-33-S1 一般用 NBR+SUS304 M33 36 32.75 41 36 1.6(1.5) 4580
SUSW-36-S1 一般用 NBR+SUS304 M36 39 35.75 44.5 39.5 1.6(1.5) 5440
SUSW-42-S1 一般用 NBR+SUS304 M42 45 41.7 50.5 45.5 1.6(1.5) 7270
SUSW-48-S1 一般用 NBR+SUS304 M48 52 47.7 56 51.8 1.6(1.5) 8230
SPCW-4F-S1 高溫 / 藥品用 FKM+SPCC M4 4.5 3.8 9.2 7 1.2 -
SPCW-5F-S1 高溫 / 藥品用 FKM+SPCC M5 5.5 4.8 10 8 1.2 -
SPCW-6F-S1 高溫 / 藥品用 FKM+SPCC M6 6.6 5.8 11 7.5 1.2 81
SPCW-8F-S1 高溫 / 藥品用 FKM+SPCC M8 9 7.8 13.5 10 1.2 174
SPCW-10F-S1 高溫 / 藥品用 FKM+SPCC M10 11 9.8 15.5 12 1.2 320
SPCW-12F-S1 高溫 / 藥品用 FKM+SPCC M12 13.5 11.8 18 14 1.2 530
SPCW-14F-S1 高溫 / 藥品用 FKM+SPCC M14 15.5 13.8 20 16.5 1.2 610
SPCW-16F-S1 高溫 / 藥品用 FKM+SPCC M16 17.5 15.8 22.5 18.5 1.2 910
SPCW-18F-S1 高溫 / 藥品用 FKM+SPCC M18 20 17.8 24.5 20.5 1.2 1130
SPCW-20F-S1 高溫 / 藥品用 FKM+SPCC M20 22 19.8 26.5 22.5 1.2 -
SPCW-22F-S1 高溫 / 藥品用 FKM+SPCC M22 24 21.75 30 26 1.6(1.5) 1910
SPCW-24F-S1 高溫 / 藥品用 FKM+SPCC M24 26 23.75 32 27 1.6(1.5) 2550
SPCW-27F-S1 高溫 / 藥品用 FKM+SPCC M27 30 26.75 35 30 1.6(1.5) 3170
SPCW-30F-S1 高溫 / 藥品用 FKM+SPCC M30 33 29.75 38 33 1.6(1.5) 3830
SPCW-33F-S1 高溫 / 藥品用 FKM+SPCC M33 36 32.75 41 36 1.6(1.5) 4580
SPCW-36F-S1 高溫 / 藥品用 FKM+SPCC M36 39 35.75 44.5 39.5 1.6(1.5) 5440
SPCW-42F-S1 高溫 / 藥品用 FKM+SPCC M42 45 41.7 50.5 45.5 1.6(1.5) 7270
SPCW-48F-S1 高溫 / 藥品用 FKM+SPCC M48 52 47.7 56 51.8 1.6(1.5) 8230

注意事項

1. 公稱尺寸t()中的尺寸適用於一般用途2。

2. 最大擰緊扭矩與JIS B 1180附錄六角螺栓相同,扭矩係數為0.2。 所示的最大擰緊扭矩為參考值。 表中的“-”顯示沒有 JIS B 1180 Annex 六角螺栓設置。
