MEGA COLL(Round Wire Spring)

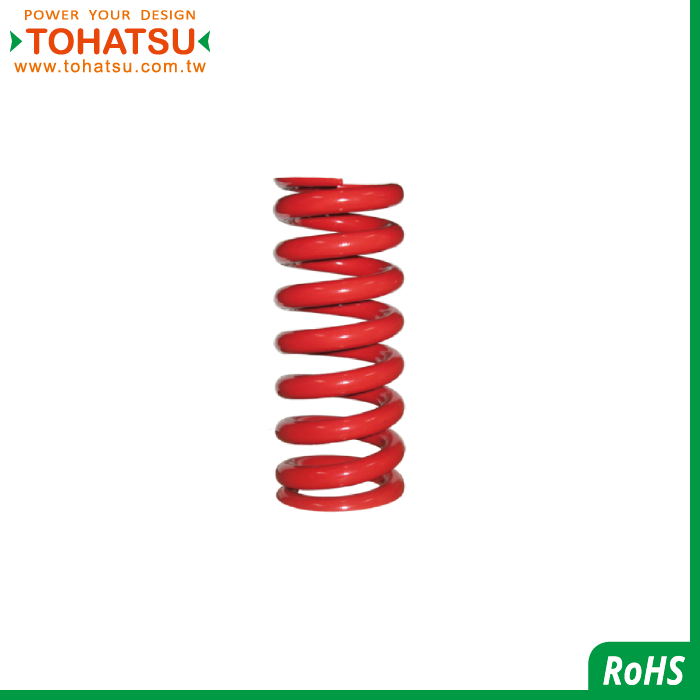

Round Wire Spring (MEGA COLL (Super High Load) Compression 32%)
MCH

MEGA COLL strong round wire spring specially developed for special machinery and equipment
MEGA COLL is an ultra-heavy load spring, small in size, space-saving, easy to install, and improves efficiency

Load calculation method
Load (N) = Spring constant (N/mm) × compression (mm)

Specification

品號
Product No.
材質
Materials
外徑
Outer diameter
內徑
Inner diameter
線徑
Wire Diameter
自由長
Free length
定數(N/mm)
Spring constant
參考荷重(N)
Reference load
MCH-72-090 SWOSC-V 72 44 14 90 388.3 11183.04
MCH-72-100 SWOSC-V 72 44 14 100 349.1 11171.2
MCH-72-125 SWOSC-V 72 44 14 125 279.5 11180
MCH-72-150 SWOSC-V 72 44 14 150 232.4 11155.2
MCH-72-175 SWOSC-V 72 44 14 175 199.1 11149.6
MCH-72-200 SWOSC-V 72 44 14 200 174.6 11174.4
MCH-72-250 SWOSC-V 72 44 14 250 139.6 11168
MCH-72-300 SWOSC-V 72 44 14 300 116.3 11164.8
