Die spring

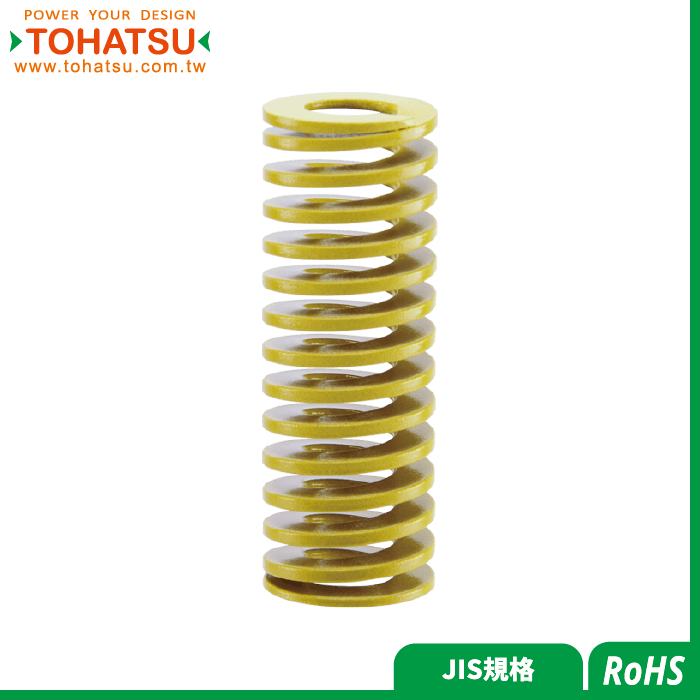

Die spring (JIS standard. Compression 50%)
TF

Die spring (flat wire spring) is suitable for occasions with high load and very limited space, mainly used in stamping dies, various die-casting dies, injection dies and mechanical equipment with precise structure

How to use the mold spring
1. First calculate the maximum working stroke required by the spring.
2. When assembling the spring, it must be preloaded to make it have internal pressure, otherwise the life of the spring will be reduced. Generally, the preload is 3~5% of the total length.
3. The spring must have bolts and outer guide bushes.
4. When the punch is re-ground, the spring will increase the compression at this time. Please grind the gasket at the same time to keep the original compression.

Points for attention in the use of springs
1. The specifications of each spring are different, do not easily replace each other when using
2. The guide length of the spring refers to the length of the central axis of the spring and the depth of the installation hole. If the guide length is insufficient, the spring will bend or tilt under the force, which will lead to the early failure of the spring. When the spring stroke is guaranteed, the guide length is greater than 1/2 of the free length
4. The upper and lower mounting surfaces of the spring must be parallel to each other. Do not cut the spring or process the connector so that it cannot be flush with the end surface.
5. The old and new springs cannot be mixed together, which will cause the spring to bear uneven load.
6. Prevent iron filings, scraps and other debris from being mixed in the spring

Load calculation method
Load (N) = Spring constant (N/mm) × compression (mm)

Specification

產品資訊\Product Information
材質
Materials
顏色(電著塗裝)
Color (Electric painting)
最大壓縮量(%)
Maximum Compression (%)
使用標準次數(萬)
Standard times of use (X10,000)
荷重(N)
Load (N)
使用溫度(ºC)
Operating temperature (ºC)
MIN MAX
SWOSC-V
黃色
Yellow
40 100 58.8 2260 -30~150
45
50
68.6 2540
50 30 78.5 2820
尺寸圖\Dimensions
外觀公差\Appearance Tolerances
外徑(D)
內徑(d)
自由長(L)
荷重(N)
Load (N)
旋向
Winding
>60mm <70mm >33mm <38.5mm >50mm <55mm
+0/-0.7 +0/-1 +0.7/+0.1 -0/+1 ±0.5 ±2% ±10%
Right hand screw
規格表\Specification Table
品號
Product No.
外徑
Outer diameter
內徑
Inner diameter
自由長
Free length
定數(N/mm)
Spring constant
TF08-010 8 4 10 15.24
TF08-015 8 4 15 10.16
TF08-020 8 4 20 7.62
TF08-025 8 4 25 6.1
TF08-030 8 4 30 5.08
TF08-035 8 4 35 4.36
TF08-040 8 4 40 3.81
TF08-045 8 4 45 3.39
TF08-050 8 4 50 3.05
TF08-055 8 4 55 2.77
TF08-060 8 4 60 2.54
TF08-065 8 4 65 2.35
TF08-070 8 4 70 2.18
TF08-075 8 4 75 2.03
TF08-080 8 4 80 1.91
TF10-020 10 5 20 9.81
TF10-025 10 5 25 7.85
TF10-030 10 5 30 6.54
TF10-035 10 5 35 5.61
TF10-040 10 5 40 4.91
TF10-045 10 5 45 4.36
TF10-050 10 5 50 3.92
TF10-055 10 5 55 3.57
TF10-060 10 5 60 3.27
TF10-065 10 5 65 3.02
TF10-070 10 5 70 2.8
TF10-075 10 5 75 2.62
TF10-080 10 5 80 2.45
TF10-090 10 5 90 2.18
TF12-020 12 6 20 13.62
TF12-025 12 6 25 10.9
TF12-030 12 6 30 9.08
TF12-035 12 6 35 7.78
TF12-040 12 6 40 6.81
TF12-045 12 6 45 6.05
TF12-050 12 6 50 5.45
TF12-055 12 6 55 4.95
TF12-060 12 6 60 4.54
TF12-065 12 6 65 4.19
TF12-070 12 6 70 3.89
TF12-075 12 6 75 3.63
TF12-080 12 6 80 3.41
TF12-090 12 6 90 3.03
TF14-025 14 7 25 13.95
TF14-030 14 7 30 11.62
TF14-035 14 7 35 9.96
TF14-040 14 7 40 8.72
TF14-045 14 7 45 7.75
TF14-050 14 7 50 6.97
TF14-055 14 7 55 6.34
TF14-060 14 7 60 5.81
TF14-065 14 7 65 5.36
TF14-070 14 7 70 4.98
TF14-075 14 7 75 4.65
TF14-080 14 7 80 4.36
TF14-090 14 7 90 3.87
TF14-100 14 7 100 3.49
TF16-025 16 8 25 16.56
TF16-030 16 8 30 13.8
TF16-035 16 8 35 11.83
TF16-040 16 8 40 10.35
TF16-045 16 8 45 9.2
TF16-050 16 8 50 8.28
TF16-055 16 8 55 7.53
TF16-060 16 8 60 6.9
TF16-065 16 8 65 6.37
TF16-070 16 8 70 5.91
TF16-075 16 8 75 5.52
TF16-080 16 8 80 5.18
TF16-090 16 8 90 4.6
TF16-100 16 8 100 4.14
TF16-125 16 8 125 3.31
TF18-025 18 9 25 20.09
TF18-030 18 9 30 16.74
TF18-035 18 9 35 14.35
TF18-040 18 9 40 12.56
TF18-045 18 9 45 11.16
TF18-050 18 9 50 10.04
TF18-055 18 9 55 9.13
TF18-060 18 9 60 8.37
TF18-065 18 9 65 7.73
TF18-070 18 9 70 7.17
TF18-075 18 9 75 6.7
TF18-080 18 9 80 6.28
TF18-090 18 9 90 5.58
TF18-100 18 9 100 5.02
TF18-125 18 9 125 4.02
TF20-025 20 11 25 25.24
TF20-030 20 11 30 21.04
TF20-035 20 11 35 18.03
TF20-040 20 11 40 15.78
TF20-045 20 11 45 14.02
TF20-050 20 11 50 12.62
TF20-055 20 11 55 11.47
TF20-060 20 11 60 10.52
TF20-065 20 11 65 9.71
TF20-070 20 11 70 9.02
TF20-075 20 11 75 8.41
TF20-080 20 11 80 7.89
TF20-090 20 11 90 7.01
TF20-100 20 11 100 6.31
TF20-125 20 11 125 5.05
TF20-150 20 11 150 4.21
TF22-025 22 11 25 31.38
TF22-030 22 11 30 26.15
TF22-035 22 11 35 22.41
TF22-040 22 11 40 19.61
TF22-045 22 11 45 17.43
TF22-050 22 11 50 15.69
TF22-055 22 11 55 14.26
TF22-060 22 11 60 13.07
TF22-065 22 11 65 12.07
TF22-070 22 11 70 11.21
TF22-075 22 11 75 10.46
TF22-080 22 11 80 9.81
TF22-090 22 11 90 8.72
TF22-100 22 11 100 7.84
TF22-125 22 11 125 6.28
TF22-150 22 11 150 5.23
TF25-025 25 13.5 25 39.2
TF25-030 25 13.5 30 32.67
TF25-035 25 13.5 35 28
TF25-040 25 13.5 40 24.5
TF25-045 25 13.5 45 21.78
TF25-050 25 13.5 50 19.6
TF25-055 25 13.5 55 17.82
TF25-060 25 13.5 60 16.33
TF25-065 25 13.5 65 15.08
TF25-070 25 13.5 70 14
TF25-075 25 13.5 75 13.07
TF25-080 25 13.5 80 12.25
TF25-090 25 13.5 90 10.89
TF25-100 25 13.5 100 9.8
TF25-125 25 13.5 125 7.84
TF25-150 25 13.5 150 6.53
TF25-175 25 13.5 175 5.6
TF25-200 25 13.5 200 4.9
TF27-025 27 13.5 25 47.11
TF27-030 27 13.5 30 39.26
TF27-035 27 13.5 35 33.65
TF27-040 27 13.5 40 29.44
TF27-045 27 13.5 45 26.17
TF27-050 27 13.5 50 23.56
TF27-055 27 13.5 55 21.41
TF27-060 27 13.5 60 19.63
TF27-065 27 13.5 65 18.12
TF27-070 27 13.5 70 16.83
TF27-075 27 13.5 75 15.7
TF27-080 27 13.5 80 14.72
TF27-090 27 13.5 90 13.09
TF27-100 27 13.5 100 11.78
TF27-125 27 13.5 125 9.42
TF27-150 27 13.5 150 7.85
TF27-175 27 13.5 175 6.73
TF27-200 27 13.5 200 5.89
TF30-025 30 16 25 56.62
TF30-030 30 16 30 47.19
TF30-035 30 16 35 40.44
TF30-040 30 16 40 35.39
TF30-045 30 16 45 31.46
TF30-050 30 16 50 28.31
TF30-055 30 16 55 25.74
TF30-060 30 16 60 23.59
TF30-065 30 16 65 21.78
TF30-070 30 16 70 20.22
TF30-075 30 16 75 18.87
TF30-080 30 16 80 17.69
TF30-090 30 16 90 15.73
TF30-100 30 16 100 14.16
TF30-125 30 16 125 11.32
TF30-150 30 16 150 9.44
TF30-175 30 16 175 8.09
TF30-200 30 16 200 7.08
TF35-040 35 20 40 47.94
TF35-045 35 20 45 42.62
TF35-050 35 20 50 38.36
TF35-055 35 20 55 34.87
TF35-060 35 20 60 31.96
TF35-065 35 20 65 29.5
TF35-070 35 20 70 27.4
TF35-075 35 20 75 25.57
TF35-080 35 20 80 23.97
TF35-090 35 20 90 21.31
TF35-100 35 20 100 19.18
TF35-125 35 20 125 15.34
TF35-150 35 20 150 12.79
TF35-175 35 20 175 10.96
TF35-200 35 20 200 9.59
TF40-040 40 22 40 62.67
TF40-045 40 22 45 55.7
TF40-050 40 22 50 50.13
TF40-055 40 22 55 45.58
TF40-060 40 22 60 41.78
TF40-065 40 22 65 38.56
TF40-070 40 22 70 35.81
TF40-075 40 22 75 33.42
TF40-080 40 22 80 31.33
TF40-090 40 22 90 27.85
TF40-100 40 22 100 25.07
TF40-125 40 22 125 20.05
TF40-150 40 22 150 16.71
TF40-175 40 22 175 14.32
TF40-200 40 22 200 12.53
TF40-225 40 22 225 11.14
TF40-250 40 22 250 10.03
TF40-275 40 22 275 9.12
TF40-300 40 22 300 8.36
TF50-050 50 27.5 50 78.44
TF50-055 50 27.5 55 71.31
TF50-060 50 27.5 60 65.37
TF50-065 50 27.5 65 60.34
TF50-070 50 27.5 70 56.03
TF50-075 50 27.5 75 52.3
TF50-080 50 27.5 80 49.03
TF50-090 50 27.5 90 43.58
TF50-100 50 27.5 100 39.22
TF50-125 50 27.5 125 31.38
TF50-150 50 27.5 150 26.15
TF50-175 50 27.5 175 22.41
TF50-200 50 27.5 200 19.61
TF50-225 50 27.5 225 17.43
TF50-250 50 27.5 250 15.69
TF50-275 50 27.5 275 14.26
TF50-300 50 27.5 300 13.07
TF50-350 50 27.5 350 11.21
TF50-400 50 27.5 400 9.81
TF50-450 50 27.5 450 8.72
TF50-500 50 27.5 500 7.84
TF60-060 60 33 60 94.07
TF60-070 60 33 70 80.63
TF60-080 60 33 80 70.56
TF60-090 60 33 90 62.72
TF60-100 60 33 100 56.44
TF60-125 60 33 125 45.16
TF60-150 60 33 150 37.63
TF60-175 60 33 175 32.25
TF60-200 60 33 200 28.22
TF60-225 60 33 225 25.09
TF60-250 60 33 250 22.58
TF60-275 60 33 275 20.53
TF60-300 60 33 300 18.81
TF60-350 60 33 350 16.13
TF60-400 60 33 400 14.11
TF60-450 60 33 450 12.54
TF60-500 60 33 500 11.29
TF70-070 70 38.5 70 114.29
TF70-080 70 38.5 80 100
TF70-090 70 38.5 90 88.89
TF70-100 70 38.5 100 80
TF70-125 70 38.5 125 64
TF70-150 70 38.5 150 53.33
TF70-175 70 38.5 175 45.71
TF70-200 70 38.5 200 40
TF70-225 70 38.5 225 35.56
TF70-250 70 38.5 250 32
TF70-275 70 38.5 275 29.09
TF70-300 70 38.5 300 26.67
TF70-350 70 38.5 350 22.86
注意事項\Matters needing attention
