Die spring

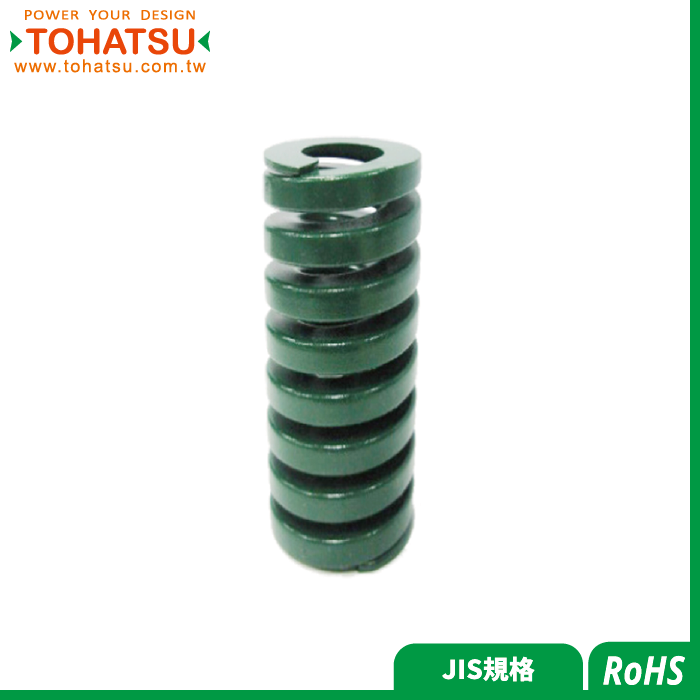

Die spring (JIS standard. Compression 24%)
TH

Die spring (flat wire spring) is suitable for occasions with high load and very limited space, mainly used in stamping dies, various die-casting dies, injection dies and mechanical equipment with precise structure

How to use the mold spring
1. First calculate the maximum working stroke required by the spring.
2. When assembling the spring, it must be preloaded to make it have internal pressure, otherwise the life of the spring will be reduced. Generally, the preload is 3~5% of the total length.
3. The spring must have bolts and outer guide bushes.
4. When the punch is re-ground, the spring will increase the compression at this time. Please grind the gasket at the same time to keep the original compression.

Points for attention in the use of springs
1. The specifications of each spring are different, do not easily replace each other when using
2. The guide length of the spring refers to the length of the central axis of the spring and the depth of the installation hole. If the guide length is insufficient, the spring will bend or tilt under the force, which will lead to the early failure of the spring. When the spring stroke is guaranteed, the guide length is greater than 1/2 of the free length
4. The upper and lower mounting surfaces of the spring must be parallel to each other. Do not cut the spring or process the connector so that it cannot be flush with the end surface.
5. The old and new springs cannot be mixed together, which will cause the spring to bear uneven load.
6. Prevent iron filings, scraps and other debris from being mixed in the spring

Load calculation method
Load (N) = Spring constant (N/mm) × compression (mm)

Specification

產品資訊\Product Information
材質
Materials
顏色(電著塗裝)
Color (Electric painting)
最大壓縮量(%)
Maximum Compression (%)
使用標準次數(萬)
Standard times of use (X10,000)
荷重(N)
Load (N)
使用溫度(ºC)
Operating temperature (ºC)
MIN MAX
SWOSC-V
綠色
Green
19.2 100 88.3 490.3 -30~150
21.6
50
98.1 549.3
24 30 107.9 608
尺寸圖\Dimensions
外觀公差\Appearance Tolerances
外徑(D)
內徑(d)
自由長(L)
荷重(N)
Load (N)
旋向
Winding
>60mm <70mm >33mm <38.5mm >50mm <55mm
+0/-0.7 +0/-1 +0.7/+0.1 -0/+1 ±0.5 ±1% ±10%
Right hand screw
規格表\Specification Table
品號
Product No.
外徑
Outer diameter
內徑
Inner diameter
自由長
Free length
定數(N/mm)
Spring constant
TH08-010 8 4 10 86.25
TH08-015 8 4 15 57.5
TH08-020 8 4 20 43.13
TH08-025 8 4 25 34.5
TH08-030 8 4 30 28.75
TH08-035 8 4 35 24.64
TH08-040 8 4 40 21.56
TH08-045 8 4 45 19.17
TH08-050 8 4 50 17.25
TH08-055 8 4 55 15.68
TH08-060 8 4 60 14.38
TH08-065 8 4 65 13.27
TH08-070 8 4 70 12.32
TH08-075 8 4 75 11.5
TH08-080 8 4 80 10.78
TH10-020 10 5 20 61.34
TH10-025 10 5 25 49.07
TH10-030 10 5 30 40.9
TH10-035 10 5 35 35.05
TH10-040 10 5 40 30.67
TH10-045 10 5 45 27.26
TH10-050 10 5 50 24.54
TH10-055 10 5 55 22.31
TH10-060 10 5 60 20.45
TH10-065 10 5 65 18.87
TH10-070 10 5 70 17.53
TH10-075 10 5 75 16.36
TH10-080 10 5 80 15.34
TH10-090 10 5 90 13.63
TH12-020 12 6 20 86.34
TH12-025 12 6 25 69.07
TH12-030 12 6 30 57.56
TH12-035 12 6 35 49.34
TH12-040 12 6 40 43.17
TH12-045 12 6 45 38.37
TH12-050 12 6 50 34.54
TH12-055 12 6 55 31.4
TH12-060 12 6 60 28.78
TH12-065 12 6 65 26.57
TH12-070 12 6 70 24.67
TH12-075 12 6 75 23.02
TH12-080 12 6 80 21.59
TH12-090 12 6 90 19.19
TH14-025 14 7 25 96.3
TH14-030 14 7 30 80.25
TH14-035 14 7 35 68.78
TH14-040 14 7 40 60.19
TH14-045 14 7 45 53.5
TH14-050 14 7 50 48.15
TH14-055 14 7 55 43.77
TH14-060 14 7 60 40.12
TH14-065 14 7 65 37.04
TH14-070 14 7 70 34.39
TH14-075 14 7 75 32.1
TH14-080 14 7 80 30.09
TH14-090 14 7 90 26.75
TH14-100 14 7 100 24.07
TH16-025 16 8 25 125.37
TH16-030 16 8 30 104.48
TH16-035 16 8 35 89.55
TH16-040 16 8 40 78.36
TH16-045 16 8 45 69.65
TH16-050 16 8 50 62.69
TH16-055 16 8 55 56.99
TH16-060 16 8 60 52.24
TH16-065 16 8 65 48.22
TH16-070 16 8 70 44.78
TH16-075 16 8 75 41.79
TH16-080 16 8 80 39.18
TH16-090 16 8 90 34.83
TH16-100 16 8 100 31.34
TH16-125 16 8 125 25.07
TH18-025 18 9 25 157.96
TH18-030 18 9 30 131.64
TH18-035 18 9 35 112.83
TH18-040 18 9 40 98.73
TH18-045 18 9 45 87.76
TH18-050 18 9 50 78.98
TH18-055 18 9 55 71.8
TH18-060 18 9 60 65.82
TH18-065 18 9 65 60.75
TH18-070 18 9 70 56.42
TH18-075 18 9 75 52.65
TH18-080 18 9 80 49.36
TH18-090 18 9 90 43.88
TH18-100 18 9 100 31.34
TH18-125 18 9 125 31.59
TH20-025 20 10 25 196.11
TH20-030 20 10 30 163.43
TH20-035 20 10 35 140.08
TH20-040 20 10 40 122.57
TH20-045 20 10 45 108.95
TH20-050 20 10 50 98.06
TH20-055 20 10 55 89.14
TH20-060 20 10 60 81.71
TH20-065 20 10 65 75.43
TH20-070 20 10 70 70.04
TH20-075 20 10 75 65.37
TH20-080 20 10 80 61.28
TH20-090 20 10 90 54.48
TH20-100 20 10 100 49.03
TH20-125 20 10 125 39.22
TH20-150 20 10 150 32.69
TH22-025 22 11 25 236.11
TH22-030 22 11 30 196.76
TH22-035 22 11 35 168.65
TH22-040 22 11 40 147.57
TH22-045 22 11 45 131.17
TH22-050 22 11 50 118.06
TH22-055 22 11 55 107.32
TH22-060 22 11 60 98.38
TH22-065 22 11 65 90.81
TH22-070 22 11 70 84.33
TH22-075 22 11 75 78.7
TH22-080 22 11 80 73.78
TH22-090 22 11 90 65.59
TH22-100 22 11 100 59.03
TH22-125 22 11 125 47.22
TH22-150 22 11 150 39.35
TH25-025 25 12.5 25 306.85
TH25-030 25 12.5 30 255.71
TH25-035 25 12.5 35 219.18
TH25-040 25 12.5 40 191.78
TH25-045 25 12.5 45 170.47
TH25-050 25 12.5 50 153.43
TH25-055 25 12.5 55 139.48
TH25-060 25 12.5 60 127.85
TH25-065 25 12.5 65 118.02
TH25-070 25 12.5 70 109.59
TH25-075 25 12.5 75 102.28
TH25-080 25 12.5 80 95.89
TH25-090 25 12.5 90 85.24
TH25-100 25 12.5 100 76.71
TH25-125 25 12.5 125 61.37
TH25-150 25 12.5 150 51.14
TH25-175 25 12.5 175 43.84
TH25-200 25 12.5 200 38.36
TH27-025 27 13.5 25 357.78
TH27-030 27 13.5 30 298.15
TH27-035 27 13.5 35 255.56
TH27-040 27 13.5 40 223.61
TH27-045 27 13.5 45 198.77
TH27-050 27 13.5 50 178.89
TH27-055 27 13.5 55 162.63
TH27-060 27 13.5 60 149.07
TH27-065 27 13.5 65 137.61
TH27-070 27 13.5 70 127.78
TH27-075 27 13.5 75 119.26
TH27-080 27 13.5 80 111.81
TH27-090 27 13.5 90 99.38
TH27-100 27 13.5 100 89.44
TH27-125 27 13.5 125 71.56
TH27-150 27 13.5 150 59.63
TH27-175 27 13.5 175 51.11
TH27-200 27 13.5 200 44.72
TH30-025 30 15 25 440.74
TH30-030 30 15 30 367.28
TH30-035 30 15 35 314.81
TH30-040 30 15 40 275.46
TH30-045 30 15 45 244.86
TH30-050 30 15 50 220.37
TH30-055 30 15 55 200.34
TH30-060 30 15 60 183.64
TH30-065 30 15 65 169.52
TH30-070 30 15 70 157.41
TH30-075 30 15 75 146.91
TH30-080 30 15 80 137.73
TH30-090 30 15 90 122.43
TH30-100 30 15 100 110.19
TH30-125 30 15 125 88.15
TH30-150 30 15 150 73.46
TH30-175 30 15 175 62.96
TH30-200 30 15 200 55.09
TH35-040 35 17.5 40 375
TH35-045 35 17.5 45 333.33
TH35-050 35 17.5 50 300
TH35-055 35 17.5 55 272.73
TH35-060 35 17.5 60 250
TH35-065 35 17.5 65 230.77
TH35-070 35 17.5 70 214.29
TH35-075 35 17.5 75 200
TH35-080 35 17.5 80 187.5
TH35-090 35 17.5 90 166.67
TH35-100 35 17.5 100 150
TH35-125 35 17.5 125 120
TH35-150 35 17.5 150 100
TH35-175 35 17.5 175 85.71
TH35-200 35 17.5 200 75
TH40-040 40 20 40 490.74
TH40-045 40 20 45 436.21
TH40-050 40 20 50 392.59
TH40-055 40 20 55 356.9
TH40-060 40 20 60 327.16
TH40-065 40 20 65 301.99
TH40-070 40 20 70 280.42
TH40-075 40 20 75 261.73
TH40-080 40 20 80 245.37
TH40-090 40 20 90 218.11
TH40-100 40 20 100 196.3
TH40-125 40 20 125 157.04
TH40-150 40 20 150 130.86
TH40-175 40 20 175 112.17
TH40-200 40 20 200 98.15
TH40-225 40 20 225 87.24
TH40-250 40 20 250 78.52
TH40-275 40 20 275 71.38
TH40-300 40 20 300 65.43
TH50-050 50 25 50 612.96
TH50-055 50 25 55 557.24
TH50-060 50 25 60 510.8
TH50-065 50 25 65 471.51
TH50-070 50 25 70 437.83
TH50-075 50 25 75 408.64
TH50-080 50 25 80 383.1
TH50-090 50 25 90 340.53
TH50-100 50 25 100 306.48
TH50-125 50 25 125 245.19
TH50-150 50 25 150 204.32
TH50-175 50 25 175 175.13
TH50-200 50 25 200 153.24
TH50-225 50 25 225 136.21
TH50-250 50 25 250 122.59
TH50-275 50 25 275 111.45
TH50-300 50 25 300 102.16
TH50-350 50 25 350 87.57
TH60-060 60 30 60 736.11
TH60-070 60 30 70 630.95
TH60-080 60 30 80 552.08
TH60-090 60 30 90 490.74
TH60-100 60 30 100 441.67
TH60-125 60 30 125 353.33
TH60-150 60 30 150 294.44
TH60-175 60 30 175 252.38
TH60-200 60 30 200 220.83
TH60-225 60 30 225 196.3
TH60-250 60 30 250 176.67
TH60-275 60 30 275 160.61
TH60-300 60 30 300 147.22
TH60-350 60 30 350 126.19
TH70-070 70 38.5 70 773.81
TH70-080 70 38.5 80 677.08
TH70-090 70 38.5 90 601.85
TH70-100 70 38.5 100 541.67
TH70-125 70 38.5 125 433.33
TH70-150 70 38.5 150 361.11
TH70-175 70 38.5 175 309.52
TH70-200 70 38.5 200 270.83
TH70-225 70 38.5 225 240.74
TH70-250 70 38.5 250 216.67
TH70-275 70 38.5 275 196.97
TH70-300 70 38.5 300 180.56
TH70-350 70 38.5 350 154.76
注意事項\Matters needing attention
