Products

Plastic screw

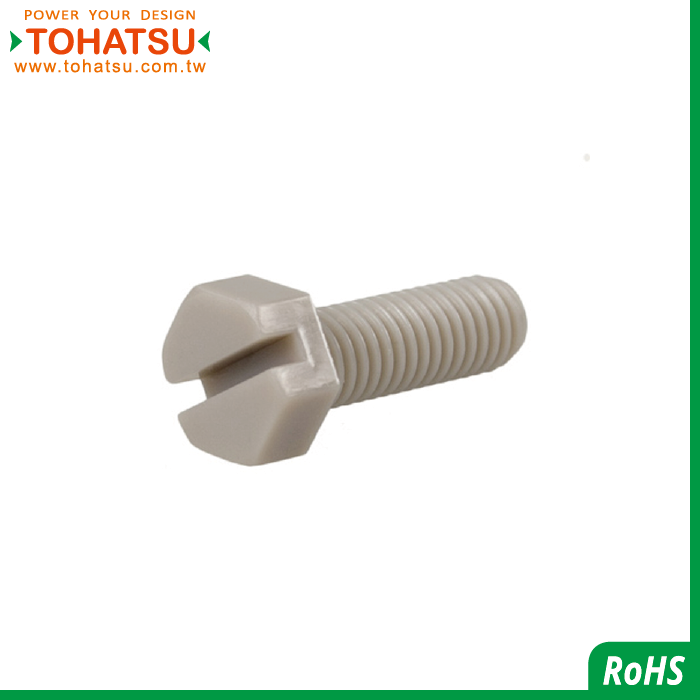

Outer Hexagon Slotted Bolt (Material: PEEK)
PEEKSH

External hexagon screws are mainly used for thin-walled parts or occasions subject to shock, vibration or alternating load. The preload contact area is large, and a large preload force can be used

Engineering plastic screws
Features such as insulation, non-magnetic, corrosion resistance, never rust Strength, impact resistance comparable to metal
1. Medical equipment industry (insulation, non-magnetic, environmental protection, anti-interference, make medical equipment safer to use)
2. Wind power industry (isolation and insulation of chassis circuit PCB board)
3. Aerospace industry (insulation and anti-interference on electronic equipment)
4. Office equipment industry (never rusted, beautiful and practical)
5. Petrochemical industry (high temperature resistance, chemical resistance, corrosion resistance, prolong the service life of equipment)
6. Electronics industry (insulation, anti-interference, light weight)
7. Communication industry (insulation, non-magnetic, safety)
8. Shipbuilding industry (acid resistance, alkali resistance, corrosion resistance, prolong service life)

Specification

塑膠螺絲材質特性表/Plastic material characteristics table
  PC PPS RENY PEEK PVC PI PP PTFE PFA PVDF 陶瓷/CERAMIC PA POM
輕量性
吸水性
耐煮沸水性
耐低溫
強韌性
抗蠕變性
抗老化
難燃性
抗電性
耐磨耗
高強度
耐藥性
耐熱性
品號
Product No.
型號
Model number
材質+處理
Material + Surface Treatment
螺紋規格
Thread Specifications
螺桿長
Screw length
牙長
Effective thread length
N0098-000224 PEEKSH-M4X6 PEEK M4X0.7 6 全牙
N0098-000217 PEEKSH-M4X8 PEEK M4X0.7 8 全牙
N0098-000230 PEEKSH-M4X10 PEEK M4X0.7 10 全牙
N0098-000202 PEEKSH-M4X12 PEEK M4X0.7 12 全牙
N0098-000215 PEEKSH-M4X15 PEEK M4X0.7 15 全牙
N0098-000201 PEEKSH-M4X20 PEEK M4X0.7 20 全牙
N0098-000228 PEEKSH-M4X25 PEEK M4X0.7 25 全牙
N0098-000219 PEEKSH-M4X30 PEEK M4X0.7 30 全牙
N0098-000211 PEEKSH-M5X15 PEEK M5X0.8 15 全牙
N0098-000205 PEEKSH-M5X17 PEEK M5X0.8 17 全牙
N0098-000223 PEEKSH-M5X25 PEEK M5X0.8 25 全牙
N0098-000220 PEEKSH-M5X30 PEEK M5X0.8 30 全牙
N0098-000216 PEEKSH-M6X10 PEEK M6X1 10 全牙
N0098-000203 PEEKSH-M6X12 PEEK M6X1 12 全牙
N0098-000209 PEEKSH-M6X15 PEEK M6X1 15 全牙
N0098-000213 PEEKSH-M6X18 PEEK M6X1 18 全牙
N0098-000206 PEEKSH-M6X20 PEEK M6X1 20 全牙
N0098-000208 PEEKSH-M6X25 PEEK M6X1 25 全牙
N0098-000212 PEEKSH-M6X30 PEEK M6X1 30 全牙
N0098-000229 PEEKSH-M6X35 PEEK M6X1 35 全牙
N0098-000222 PEEKSH-M6X40 PEEK M6X1 40 全牙
N0098-000221 PEEKSH-M8X10 PEEK M8X1.25 10 全牙
N0098-000225 PEEKSH-M8X15 PEEK M8X1.25 15 全牙
N0098-000226 PEEKSH-M8X20 PEEK M8X1.25 20 全牙
N0098-000214 PEEKSH-M8X25 PEEK M8X1.25 25 全牙
N0098-000207 PEEKSH-M8X30 PEEK M8X1.25 30 全牙
N0098-000218 PEEKSH-M8X35 PEEK M8X1.25 35 全牙
N0098-000227 PEEKSH-M8X40 PEEK M8X1.25 40 全牙
N0098-000204 PEEKSH-M8X45 PEEK M8X1.25 45 全牙
N0098-000210 PEEKSH-M10X20 PEEK M10X1.5 20 全牙
N0098-000231 PEEKSH-M10X40 PEEK M10X1.5 40 全牙
