Nitrogen Aas Spring

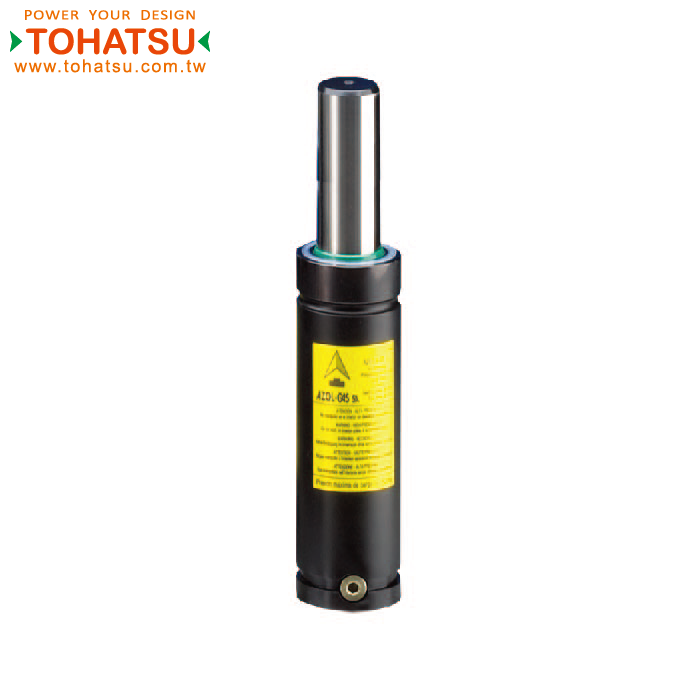

Gas spring (ISO standard (initial load 5000kgf))
AG

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Specification

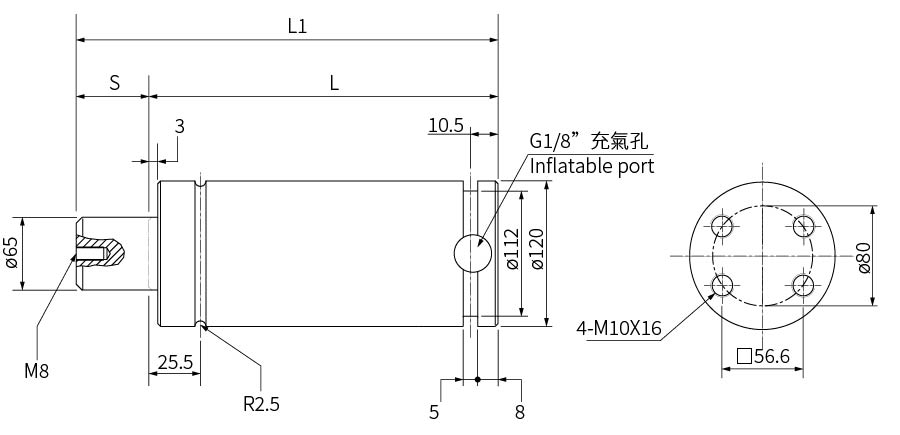

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
AG-5000X25 20~150 0~80 2 25 190 165 9.78
AG-5000X38 20~150 0~80 2 38 216 178 10.31
AG-5000X50 20~150 0~80 2 50 240 190 10.8
AG-5000X63.5 20~150 0~80 2 63.5 267 203.5 11.35
AG-5000X80 20~150 0~80 2 80 300 220 12.02
AG-5000X100 20~150 0~80 2 100 340 240 12.83
AG-5000X125 20~150 0~80 2 125 390 265 13.85
AG-5000X160 20~150 0~80 2 160 460 300 15.27
AG-5000X175 20~150 0~80 2 175 490 315 15.88
AG-5000X200 20~150 0~80 2 200 540 340 16.9
AG-5000X225 20~150 0~80 2 225 590 365 17.92
AG-5000X250 20~150 0~80 2 250 640 390 18.93
AG-5000X300 20~150 0~80 2 300 740 440 20.97
