Products

Machine Screws

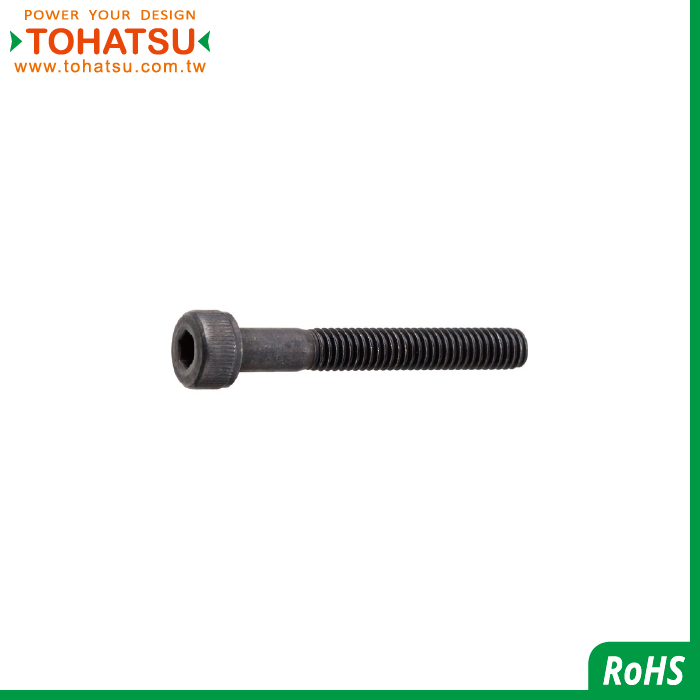

Hexagon socket head cap screws (anti-loosening) (Material: SCM435)
Y013

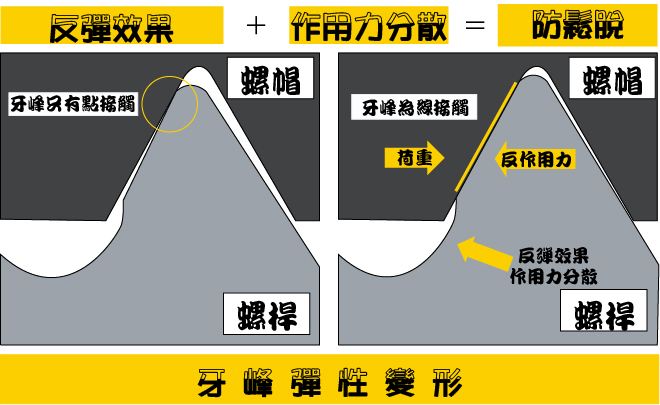

Using special thread shape, it has a strong anti-loosening effect

Characteristics of socket head cap screws
1. It is not easy to slip teeth.
2. It can be countersunk in use, that is, the whole nut is sunk into the workpiece, which can keep the surface of the workpiece smooth and beautiful.
3. More assembly occasions, especially narrow occasions, so it is very convenient to assemble and maintain, and it is also convenient to debug.
4. The tools we usually use are adjustable wrenches, screwdrivers and open-end wrenches, etc., and special wrenches must be used to remove the socket head cap screws. Therefore, it is not easy for ordinary people to disassemble, which is also a benefit.

Specification

螺牙特點
品號
Product No.
型號
Model number
材質+處理
Material + Surface Treatment
螺紋規格
Thread Specifications
螺桿長
Screw length
牙長
Effective thread length
RU-856-0965 Y013-0408 SCM435+染黑 M4X0.7 8 全牙
RU-856-0966 Y013-0410 SCM435+染黑 M4X0.7 10 全牙
RU-856-0967 Y013-0412 SCM435+染黑 M4X0.7 12 全牙
RU-856-0968 Y013-0414 SCM435+染黑 M4X0.7 14 全牙
RU-856-0969 Y013-0415 SCM435+染黑 M4X0.7 15 全牙
RU-856-0970 Y013-0416 SCM435+染黑 M4X0.7 16 全牙
RU-856-0971 Y013-0420 SCM435+染黑 M4X0.7 20 全牙
RU-856-0972 Y013-0425 SCM435+染黑 M4X0.7 25 全牙
RU-856-0975 Y013-0510 SCM435+染黑 M5X0.8 10 全牙
RU-856-0976 Y013-0512 SCM435+染黑 M5X0.8 12 全牙
RU-856-0977 Y013-0515 SCM435+染黑 M5X0.8 15 全牙
RU-856-0978 Y013-0516 SCM435+染黑 M5X0.8 16 全牙
RU-856-0979 Y013-0520 SCM435+染黑 M5X0.8 20 全牙
RU-856-0980 Y013-0525 SCM435+染黑 M5X0.8 25 全牙
RU-856-0984 Y013-0610 SCM435+染黑 M6X1 10 全牙
RU-856-0985 Y013-0612 SCM435+染黑 M6X1 12 全牙
RU-856-0986 Y013-0615 SCM435+染黑 M6X1 15 全牙
RU-856-0987 Y013-0616 SCM435+染黑 M6X1 16 全牙
RU-856-0988 Y013-0620 SCM435+染黑 M6X1 20 全牙
RU-856-0989 Y013-0625 SCM435+染黑 M6X1 25 全牙
RU-856-0990 Y013-0630 SCM435+染黑 M6X1 30 全牙
RU-856-0995 Y013-0812 SCM435+染黑 M8X1.25 12 全牙
RU-856-0996 Y013-0815 SCM435+染黑 M8X1.25 15 全牙
RU-856-0997 Y013-0816 SCM435+染黑 M8X1.25 16 全牙
RU-856-0998 Y013-0820 SCM435+染黑 M8X1.25 20 全牙
RU-856-0999 Y013-0825 SCM435+染黑 M8X1.25 25 全牙
RU-856-1000 Y013-0830 SCM435+染黑 M8X1.25 30 全牙
RU-856-1001 Y013-0835 SCM435+染黑 M8X1.25 35 全牙
RU-856-1005 Y013-1020 SCM435+染黑 M10X1.5 20 全牙
RU-856-1006 Y013-1025 SCM435+染黑 M10X1.5 25 全牙
RU-856-1007 Y013-1030 SCM435+染黑 M10X1.5 30 全牙
RU-856-1008 Y013-1035 SCM435+染黑 M10X1.5 35 全牙
RU-856-1009 Y013-1040 SCM435+染黑 M10X1.5 40 全牙
RU-856-1012 Y013-1230 SCM435+染黑 M12X1.75 30 全牙
RU-856-1013 Y013-1235 SCM435+染黑 M12X1.75 35 全牙
RU-856-1014 Y013-1240 SCM435+染黑 M12X1.75 40 全牙
RU-856-1015 Y013-1245 SCM435+染黑 M12X1.75 45 全牙
RU-856-1016 Y013-1250 SCM435+染黑 M12X1.75 50 全牙
RU-856-1019 Y013-1635 SCM435+染黑 M16X2 35 全牙
RU-856-1020 Y013-1640 SCM435+染黑 M16X2 40 全牙
RU-856-1021 Y013-1645 SCM435+染黑 M16X2 45 全牙
RU-856-1022 Y013-1650 SCM435+染黑 M16X2 50 全牙
RU-856-1023 Y013-1655 SCM435+染黑 M16X2 55 全牙
RU-856-1024 Y013-1660 SCM435+染黑 M16X2 60 全牙
RU-856-0973 Y013-0430 SCM435+染黑 M4X0.7 30 半牙
RU-856-0974 Y013-0435 SCM435+染黑 M4X0.7 35 半牙
RU-856-0981 Y013-0530 SCM435+染黑 M5X0.8 30 半牙
RU-856-0982 Y013-0535 SCM435+染黑 M5X0.8 35 半牙
RU-856-0983 Y013-0540 SCM435+染黑 M5X0.8 40 半牙
RU-856-0991 Y013-0635 SCM435+染黑 M6X1 35 半牙
RU-856-0992 Y013-0640 SCM435+染黑 M6X1 40 半牙
RU-856-0993 Y013-0645 SCM435+染黑 M6X1 45 半牙
RU-856-0994 Y013-0650 SCM435+染黑 M6X1 50 半牙
RU-856-1002 Y013-0840 SCM435+染黑 M8X1.25 40 半牙
RU-856-1003 Y013-0845 SCM435+染黑 M8X1.25 45 半牙
RU-856-1004 Y013-0850 SCM435+染黑 M8X1.25 50 半牙
RU-856-1010 Y013-1045 SCM435+染黑 M10X1.5 45 半牙
RU-856-1011 Y013-1050 SCM435+染黑 M10X1.5 50 半牙
RU-856-1017 Y013-1260 SCM435+染黑 M12X1.75 60 半牙
RU-856-1018 Y013-1270 SCM435+染黑 M12X1.75 70 半牙
