Die spring

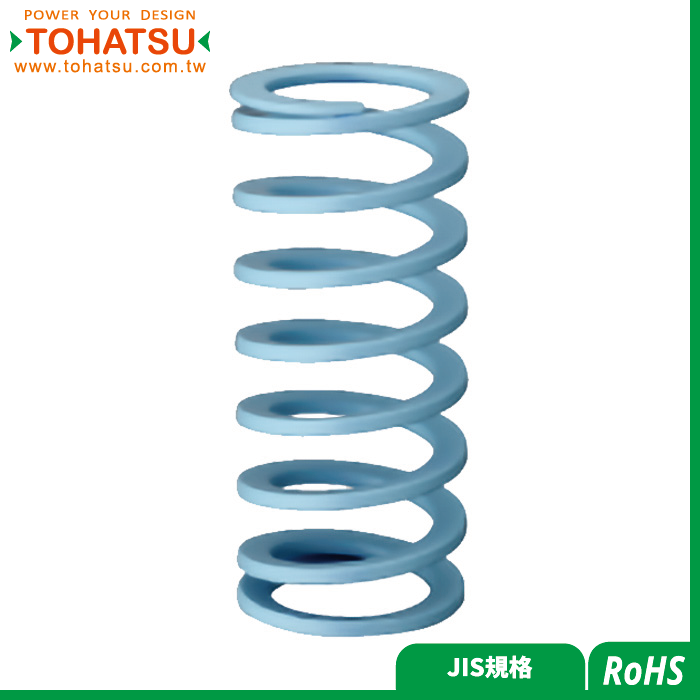

Die spring (JIS standard. Compression 65%)
TU

Die spring (flat wire spring) is suitable for occasions with high load and very limited space, mainly used in stamping dies, various die-casting dies, injection dies and mechanical equipment with precise structure

How to use the mold spring
1. First calculate the maximum working stroke required by the spring.
2. When assembling the spring, it must be preloaded to make it have internal pressure, otherwise the life of the spring will be reduced. Generally, the preload is 3~5% of the total length.
3. The spring must have bolts and outer guide bushes.
4. When the punch is re-ground, the spring will increase the compression at this time. Please grind the gasket at the same time to keep the original compression.

Points for attention in the use of springs
1. The specifications of each spring are different, do not easily replace each other when using
2. The guide length of the spring refers to the length of the central axis of the spring and the depth of the installation hole. If the guide length is insufficient, the spring will bend or tilt under the force, which will lead to the early failure of the spring. When ensuring the spring stroke, the guide length is greater than 1/2 of the free length.
4. The upper and lower mounting surfaces of the spring must be parallel to each other. Do not cut the spring or process the connector so that it cannot be flush with the end surface.
5. The old and new springs cannot be mixed together, which will cause the spring to bear uneven load.
6. Prevent iron filings, scraps and other debris from being mixed in the spring

Specification

產品資訊\Product Information
材質
Materials
顏色(電著塗裝)
Color (Electric painting)
最大壓縮量(%)
Maximum Compression (%)
使用標準次數(萬)
Standard times of use (X10,000)
荷重(N)
Load (N)
使用溫度(ºC)
Operating temperature (ºC)
MIN MAX
SWOSC-V
淺藍
Pale Blue
60 100 68.6 588.4 -30~150
62.5
50
71.5 612.9
65 30 74.3 637.4
尺寸圖\Dimensions
外觀公差\Appearance Tolerances
外徑(D)
內徑(d)
自由長(L)
荷重(N)
Load (N)
旋向
Winding
>50mm <55mm
+0.5/-0.1 +0.7/+0.1 ±0.5 ±1.5% ±10%
Right hand screw
規格表\Specification Table
品號
Product No.
外徑
Outer diameter
內徑
Inner diameter
自由長
Free length
定數(N/mm)
Spring constant
TU10.5-020 10.5 6 20 5.72
TU10.5-025 10.5 6 25 4.57
TU10.5-030 10.5 6 30 3.81
TU10.5-035 10.5 6 35 3.27
TU10.5-040 10.5 6 40 2.86
TU10.5-045 10.5 6 45 2.54
TU10.5-050 10.5 6 50 2.29
TU10.5-055 10.5 6 55 2.08
TU10.5-060 10.5 6 60 1.91
TU10.5-065 10.5 6 65 1.76
TU10.5-070 10.5 6 70 1.63
TU10.5-075 10.5 6 75 1.52
TU10.5-080 10.5 6 80 1.43
TU12.5-015 12.5 7 15 8.71
TU12.5-020 12.5 7 20 6.53
TU12.5-025 12.5 7 25 5.23
TU12.5-030 12.5 7 30 4.36
TU12.5-035 12.5 7 35 3.73
TU12.5-040 12.5 7 40 3.27
TU12.5-045 12.5 7 45 2.9
TU12.5-050 12.5 7 50 2.61
TU12.5-055 12.5 7 55 2.38
TU12.5-060 12.5 7 60 2.18
TU12.5-065 12.5 7 65 2.01
TU12.5-070 12.5 7 70 1.87
TU12.5-075 12.5 7 75 1.74
TU12.5-080 12.5 7 80 1.63
TU12.5-090 12.5 7 90 1.45
TU12.5-100 12.5 7 100 1.31
TU14.5-020 14.5 8.5 20 8.18
TU14.5-025 14.5 8.5 25 6.54
TU14.5-030 14.5 8.5 30 5.45
TU14.5-035 14.5 8.5 35 4.67
TU14.5-040 14.5 8.5 40 4.09
TU14.5-045 14.5 8.5 45 3.63
TU14.5-050 14.5 8.5 50 3.27
TU14.5-055 14.5 8.5 55 2.97
TU14.5-060 14.5 8.5 60 2.73
TU14.5-065 14.5 8.5 65 2.52
TU14.5-070 14.5 8.5 70 2.34
TU14.5-075 14.5 8.5 75 2.18
TU14.5-080 14.5 8.5 80 2.04
TU14.5-090 14.5 8.5 90 1.82
TU14.5-100 14.5 8.5 100 1.64
TU14.5-110 14.5 8.5 110 1.49
TU14.5-120 14.5 8.5 120 1.36
TU14.5-125 14.5 8.5 125 1.31
TU14.5-150 14.5 8.5 150 1.09
TU17-030 17 10.5 30 8.17
TU17-035 17 10.5 35 7
TU17-040 17 10.5 40 6.13
TU17-045 17 10.5 45 5.44
TU17-050 17 10.5 50 4.9
TU17-055 17 10.5 55 4.45
TU17-060 17 10.5 60 4.08
TU17-065 17 10.5 65 3.77
TU17-070 17 10.5 70 3.5
TU17-075 17 10.5 75 3.27
TU17-080 17 10.5 80 3.06
TU17-090 17 10.5 90 2.72
TU17-100 17 10.5 100 2.45
TU17-110 17 10.5 110 2.23
TU17-120 17 10.5 120 2.04
TU17-125 17 10.5 125 1.96
TU17-150 17 10.5 150 1.63
TU17-175 17 10.5 175 1.4
TU21-025 21 13.5 25 15.04
TU21-030 21 13.5 30 12.53
TU21-035 21 13.5 35 10.74
TU21-040 21 13.5 40 9.4
TU21-045 21 13.5 45 8.36
TU21-050 21 13.5 50 7.52
TU21-055 21 13.5 55 6.84
TU21-060 21 13.5 60 6.27
TU21-065 21 13.5 65 5.78
TU21-070 21 13.5 70 5.37
TU21-075 21 13.5 75 5.01
TU21-080 21 13.5 80 4.7
TU21-090 21 13.5 90 4.18
TU21-100 21 13.5 100 3.76
TU21-110 21 13.5 110 3.42
TU21-120 21 13.5 120 3.13
TU21-125 21 13.5 125 3.01
TU21-130 21 13.5 130 2.89
TU21-140 21 13.5 140 2.69
TU21-150 21 13.5 150 2.51
TU21-175 21 13.5 175 2.15
TU21-200 21 13.5 200 1.88
TU26-030 26 16.5 30 16.34
TU26-035 26 16.5 35 14.01
TU26-040 26 16.5 40 12.26
TU26-045 26 16.5 45 10.9
TU26-050 26 16.5 50 9.81
TU26-055 26 16.5 55 8.92
TU26-060 26 16.5 60 8.17
TU26-065 26 16.5 65 7.54
TU26-070 26 16.5 70 7
TU26-075 26 16.5 75 6.54
TU26-080 26 16.5 80 6.13
TU26-090 26 16.5 90 5.45
TU26-100 26 16.5 100 4.9
TU26-110 26 16.5 110 4.46
TU26-120 26 16.5 120 4.09
TU26-125 26 16.5 125 3.92
TU26-130 26 16.5 130 3.77
TU26-140 26 16.5 140 3.5
TU26-150 26 16.5 150 3.27
TU26-175 26 16.5 175 2.8
TU26-200 26 16.5 200 2.45
TU26-225 26 16.5 225 2.18
TU26-250 26 16.5 250 1.96
TU31-035 31 21 35 17.75
TU31-040 31 21 40 15.53
TU31-045 31 21 45 13.8
TU31-050 31 21 50 12.42
TU31-055 31 21 55 11.29
TU31-060 31 21 60 10.35
TU31-065 31 21 65 9.56
TU31-070 31 21 70 8.87
TU31-075 31 21 75 8.28
TU31-080 31 21 80 7.76
TU31-090 31 21 90 6.9
TU31-100 31 21 100 6.21
TU31-110 31 21 110 5.65
TU31-120 31 21 120 5.18
TU31-125 31 21 125 4.97
TU31-130 31 21 130 4.78
TU31-140 31 21 140 4.44
TU31-150 31 21 150 4.14
TU31-160 31 21 160 3.88
TU31-170 31 21 170 3.65
TU31-175 31 21 175 3.55
TU31-180 31 21 180 3.45
TU31-190 31 21 190 3.27
TU31-200 31 21 200 3.11
TU31-250 31 21 250 2.48
TU31-300 31 21 300 2.07
TU37-040 37 26 40 19.2
TU37-045 37 26 45 17.07
TU37-050 37 26 50 15.36
TU37-055 37 26 55 13.97
TU37-060 37 26 60 12.8
TU37-065 37 26 65 11.82
TU37-070 37 26 70 10.97
TU37-075 37 26 75 10.24
TU37-080 37 26 80 9.6
TU37-090 37 26 90 8.54
TU37-100 37 26 100 7.68
TU37-110 37 26 110 6.98
TU37-120 37 26 120 6.4
TU37-130 37 26 130 5.91
TU37-140 37 26 140 5.49
TU37-150 37 26 150 5.12
TU37-160 37 26 160 4.8
TU37-170 37 26 170 4.52
TU37-180 37 26 180 4.27
TU37-190 37 26 190 4.04
TU37-200 37 26 200 3.84
TU37-225 37 26 225 3.41
TU37-250 37 26 250 3.07
TU37-275 37 26 275 2.79
TU37-300 37 26 300 2.56
TU43-050 43 31 50 19.61
TU43-060 43 31 60 16.34
TU43-070 43 31 70 14.01
TU43-080 43 31 80 12.26
TU43-090 43 31 90 10.9
TU43-100 43 31 100 9.81
TU43-110 43 31 110 8.92
TU43-120 43 31 120 8.17
TU43-130 43 31 130 7.54
TU43-140 43 31 140 7
TU43-150 43 31 150 6.54
TU43-160 43 31 160 6.13
TU43-170 43 31 170 5.77
TU43-180 43 31 180 5.45
TU43-190 43 31 190 5.16
TU43-200 43 31 200 4.9
TU43-225 43 31 225 4.36
TU43-250 43 31 250 3.92
TU43-275 43 31 275 3.57
TU43-300 43 31 300 3.27
