Products

Plastic screw

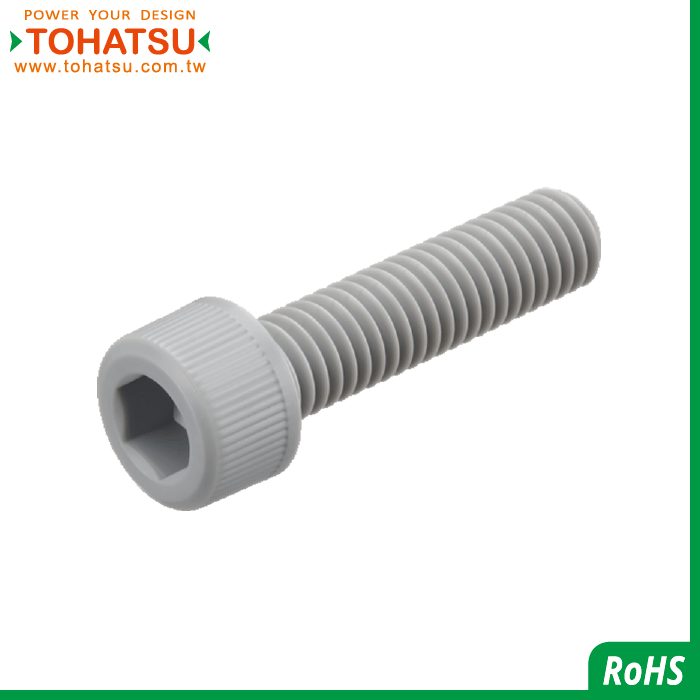

Hexagon socket head plastic screw (Material: PVC)
PVCCB

Characteristics of socket head cap screws
1. It is not easy to slip teeth.
2. It can be countersunk in use, that is, the whole nut is sunk into the workpiece, which can keep the surface of the workpiece smooth and beautiful.
3. More assembly occasions, especially narrow occasions, so it is very convenient to assemble and maintain, and it is also convenient to debug.
4. The tools we usually use are adjustable wrenches, screwdrivers and open-end wrenches, etc., and special wrenches must be used to remove the socket head cap screws. Therefore, it is not easy for ordinary people to disassemble, which is also a benefit.

Engineering plastic screws
Features such as insulation, non-magnetic, corrosion resistance, never rust Strength, impact resistance comparable to metal
1. Medical equipment industry (insulation, non-magnetic, environmental protection, anti-interference, make medical equipment safer to use)
2. Wind power industry (isolation and insulation of chassis circuit PCB board)
3. Aerospace industry (insulation and anti-interference on electronic equipment)
4. Office equipment industry (never rusted, beautiful and practical)
5. Petrochemical industry (high temperature resistance, chemical resistance, corrosion resistance, prolong the service life of equipment)
6. Electronics industry (insulation, anti-interference, light weight)
7. Communication industry (insulation, non-magnetic, safety)
8. Shipbuilding industry (acid resistance, alkali resistance, corrosion resistance, prolong service life)

Specification

塑膠螺絲材質特性表/Plastic material characteristics table
  PC PPS RENY PEEK PVC PI PP PTFE PFA PVDF 陶瓷/CERAMIC PA POM
輕量性
吸水性
耐煮沸水性
耐低溫
強韌性
抗蠕變性
抗老化
難燃性
抗電性
耐磨耗
高強度
耐藥性
耐熱性
品號
Product No.
型號
Model number
材質+處理
Material + Surface Treatment
螺紋規格
Thread Specifications
螺桿長
Screw length
牙長
Effective thread length
PVCCBM38 PVCCB PVC M3X0.5 8 全牙
PVCCBM310 PVCCB PVC M3X0.5 10 全牙
PVCCBM312 PVCCB PVC M3X0.5 12 全牙
PVCCBM315 PVCCB PVC M3X0.5 15 全牙
PVCCBM320 PVCCB PVC M3X0.5 20 全牙
PVCCBM325 PVCCB PVC M3X0.5 25 全牙
PVCCBM48 PVCCB PVC M4X0.7 8 全牙
PVCCBM410 PVCCB PVC M4X0.7 10 全牙
PVCCBM412 PVCCB PVC M4X0.7 12 全牙
PVCCBM415 PVCCB PVC M4X0.7 15 全牙
PVCCBM420 PVCCB PVC M4X0.7 20 全牙
PVCCBM425 PVCCB PVC M4X0.7 25 全牙
PVCCBM510 PVCCB PVC M5X0.8 10 全牙
PVCCBM512 PVCCB PVC M5X0.8 12 全牙
PVCCBM515 PVCCB PVC M5X0.8 15 全牙
PVCCBM520 PVCCB PVC M5X0.8 20 全牙
PVCCBM525 PVCCB PVC M5X0.8 25 全牙
PVCCBM530 PVCCB PVC M5X0.8 30 全牙
PVCCBM535 PVCCB PVC M5X0.8 35 全牙
PVCCBM610 PVCCB PVC M6X1 10 全牙
PVCCBM612 PVCCB PVC M6X1 12 全牙
PVCCBM615 PVCCB PVC M6X1 15 全牙
PVCCBM620 PVCCB PVC M6X1 20 全牙
PVCCBM625 PVCCB PVC M6X1 25 全牙
PVCCBM630 PVCCB PVC M6X1 30 全牙
PVCCBM635 PVCCB PVC M6X1 35 全牙
PVCCBM640 PVCCB PVC M6X1 40 全牙
PVCCBM812 PVCCB PVC M8X1.25 12 全牙
PVCCBM815 PVCCB PVC M8X1.25 15 全牙
PVCCBM820 PVCCB PVC M8X1.25 20 全牙
PVCCBM825 PVCCB PVC M8X1.25 25 全牙
PVCCBM830 PVCCB PVC M8X1.25 30 全牙
PVCCBM835 PVCCB PVC M8X1.25 35 全牙
PVCCBM840 PVCCB PVC M8X1.25 40 全牙
