Nitrogen Aas Spring

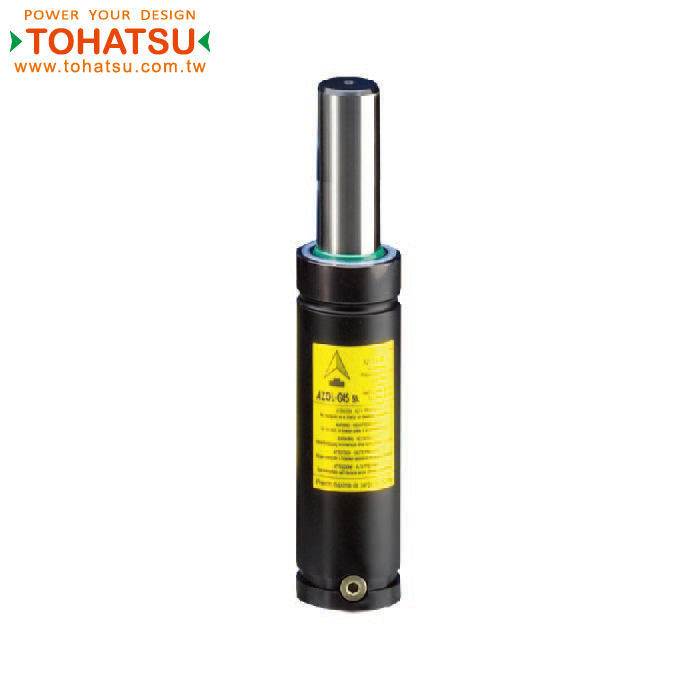

Gas spring (ISO standard (initial load 7500kgf))
AG

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Specification

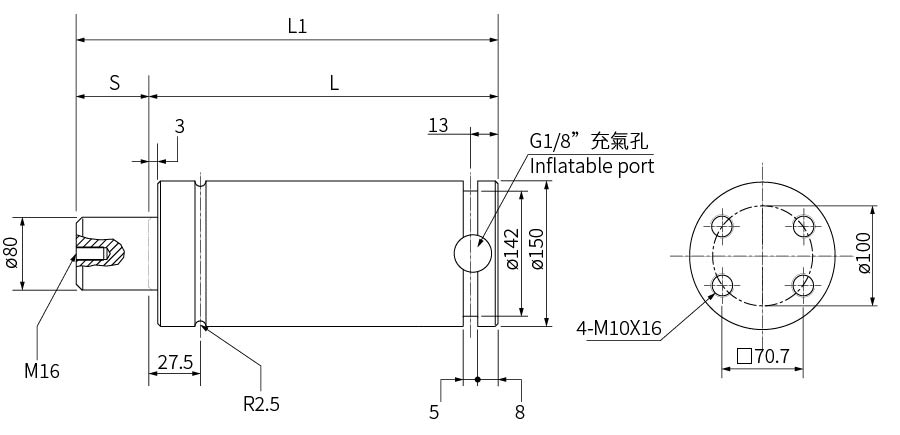

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
AG-7500X25 20~150 0~80 2 25 205 180 16.89
AG-7500X38 20~150 0~80 2 38 231 193 17.71
AG-7500X50 20~150 0~80 2 50 255 205 18.47
AG-7500X63.5 20~150 0~80 2 63.5 282 218.5 19.33
AG-7500X80 20~150 0~80 2 80 315 235 20.37
AG-7500X100 20~150 0~80 2 100 355 255 21.63
AG-7500X125 20~150 0~80 2 125 405 280 23.21
AG-7500X160 20~150 0~80 2 160 475 315 25.42
AG-7500X175 20~150 0~80 2 175 505 330 26.37
AG-7500X200 20~150 0~80 2 200 555 355 27.95
AG-7500X225 20~150 0~80 2 225 605 380 29.53
AG-7500X250 20~150 0~80 2 250 655 405 31.11
AG-7500X300 20~150 0~80 2 300 755 455 34.27
