Products

Plastic screw

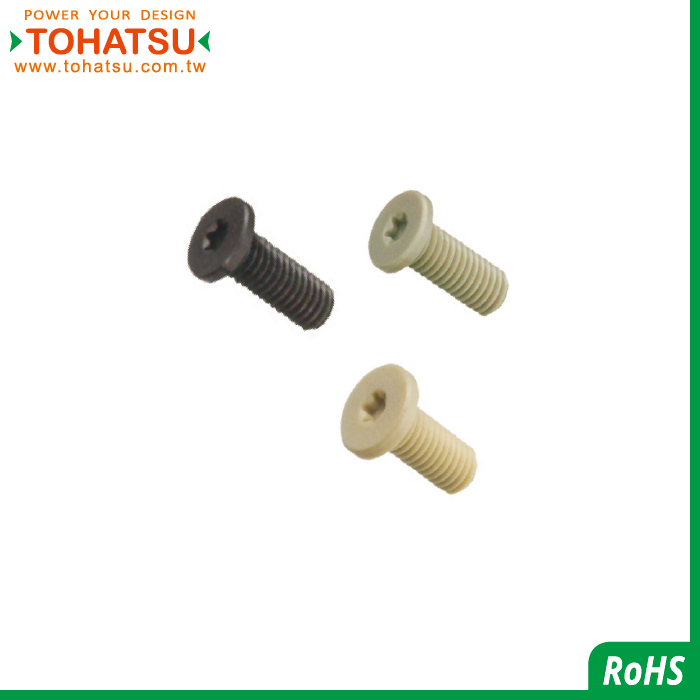

Space Saving Torx screw(Materials:RENY/PEEK/PPS)
QCMC SCFC SSPC

The star screw, also known as the Torx screw, is designed to prevent the tool protrusion from deviating from the escape groove and can withstand higher torque.

Engineering plastic screws
Features such as insulation, non-magnetic, corrosion resistance, never rust Strength, impact resistance comparable to metal
1. Medical equipment industry (insulation, non-magnetic, environmental protection, anti-interference, make medical equipment safer to use)
2. Wind power industry (isolation and insulation of chassis circuit PCB board)
3. Aerospace industry (insulation and anti-interference on electronic equipment)
4. Office equipment industry (never rusted, beautiful and practical)
5. Petrochemical industry (high temperature resistance, chemical resistance, corrosion resistance, prolong the service life of equipment)
6. Electronics industry (insulation, anti-interference, light weight)
7. Communication industry (insulation, non-magnetic, safety)
8. Shipbuilding industry (acid resistance, alkali resistance, corrosion resistance, prolong service life)

In addition to saving space for fixing parts, low-head screws can also be used as cover bolts. They are mainly used in automobiles, construction, machinery, home appliances, electronic industries, locomotives and bicycle parts.

Specification

塑膠螺絲材質特性表/Plastic material characteristics table
  PC PPS RENY PEEK PVC PI PP PTFE PFA PVDF 陶瓷/CERAMIC PA POM
輕量性
吸水性
耐煮沸水性
耐低溫
強韌性
抗蠕變性
抗老化
難燃性
抗電性
耐磨耗
高強度
耐藥性
耐熱性
品號
Product No.
型號
Model number
材質+處理
Material + Surface Treatment
螺紋規格
Thread Specifications
螺桿長
Screw length
牙長
Effective thread length
QCMC3-6 QCMC RENY M3X0.5 6 全牙
QCMC3-8 QCMC RENY M3X0.5 8 全牙
QCMC3-10 QCMC RENY M3X0.5 10 全牙
QCMC4-6 QCMC RENY M4X0.7 6 全牙
QCMC4-8 QCMC RENY M4X0.7 8 全牙
QCMC4-10 QCMC RENY M4X0.7 10 全牙
QCMC4-12 QCMC RENY M4X0.7 12 全牙
QCMC5-8 QCMC RENY M5X0.8 8 全牙
QCMC5-10 QCMC RENY M5X0.8 10 全牙
QCMC5-12 QCMC RENY M5X0.8 12 全牙
QCMC5-16 QCMC RENY M5X0.8 16 全牙
QCMC6-10 QCMC RENY M6X1 10 全牙
QCMC6-12 QCMC RENY M6X1 12 全牙
QCMC6-16 QCMC RENY M6X1 16 全牙
SCFC3-6 SCFC PEEK M3X0.5 6 全牙
SCFC3-8 SCFC PEEK M3X0.5 8 全牙
SCFC3-10 SCFC PEEK M3X0.5 10 全牙
SCFC4-6 SCFC PEEK M4X0.7 6 全牙
SCFC4-8 SCFC PEEK M4X0.7 8 全牙
SCFC4-10 SCFC PEEK M4X0.7 10 全牙
SCFC4-12 SCFC PEEK M4X0.7 12 全牙
SCFC5-8 SCFC PEEK M5X0.8 8 全牙
SCFC5-10 SCFC PEEK M5X0.8 10 全牙
SCFC5-12 SCFC PEEK M5X0.8 12 全牙
SCFC5-16 SCFC PEEK M5X0.8 16 全牙
SCFC6-10 SCFC PEEK M6X1 10 全牙
SCFC6-12 SCFC PEEK M6X1 12 全牙
SCFC6-16 SCFC PEEK M6X1 16 全牙
SSPC3-6 SSPC PPS M3X0.5 6 全牙
SSPC3-8 SSPC PPS M3X0.5 8 全牙
SSPC3-10 SSPC PPS M3X0.5 10 全牙
SSPC4-6 SSPC PPS M4X0.7 6 全牙
SSPC4-8 SSPC PPS M4X0.7 8 全牙
SSPC4-10 SSPC PPS M4X0.7 10 全牙
SSPC4-12 SSPC PPS M4X0.7 12 全牙
SSPC5-8 SSPC PPS M5X0.8 8 全牙
SSPC5-10 SSPC PPS M5X0.8 10 全牙
SSPC5-12 SSPC PPS M5X0.8 12 全牙
SSPC5-16 SSPC PPS M5X0.8 16 全牙
SSPC6-10 SSPC PPS M6X1 10 全牙
SSPC6-12 SSPC PPS M6X1 12 全牙
SSPC6-16 SSPC PPS M6X1 16 全牙
