Products

Plastic screw

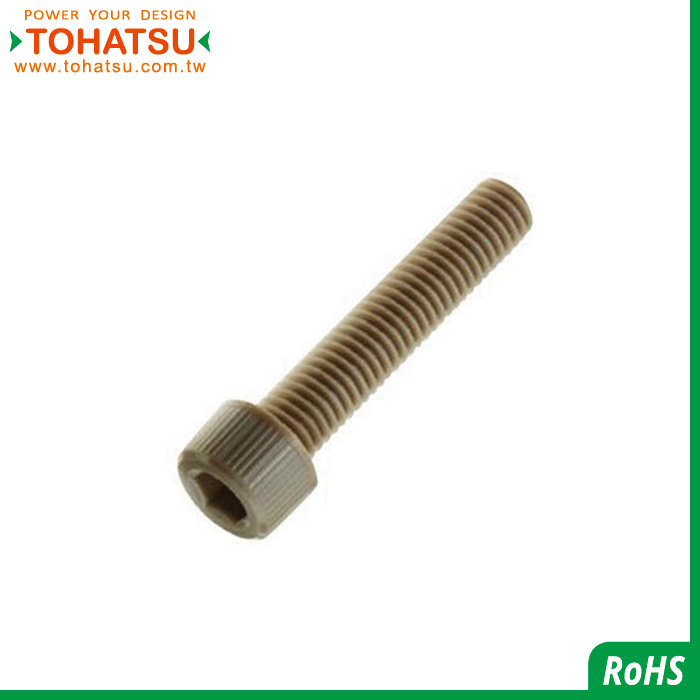

Hexagon socket head plastic screw (Material: PEEK)
SCBFPEKM

Characteristics of socket head cap screws
1. It is not easy to slip teeth.
2. It can be countersunk in use, that is, the whole nut is sunk into the workpiece, which can keep the surface of the workpiece smooth and beautiful.
3. More assembly occasions, especially narrow occasions, so it is very convenient to assemble and maintain, and it is also convenient to debug.
4. The tools we usually use are adjustable wrenches, screwdrivers and open-end wrenches, etc., and special wrenches must be used to remove the socket head cap screws. Therefore, it is not easy for ordinary people to disassemble, which is also a benefit.

Engineering plastic screws
Features such as insulation, non-magnetic, corrosion resistance, never rust Strength, impact resistance comparable to metal
1. Medical equipment industry (insulation, non-magnetic, environmental protection, anti-interference, make medical equipment safer to use)
2. Wind power industry (isolation and insulation of chassis circuit PCB board)
3. Aerospace industry (insulation and anti-interference on electronic equipment)
4. Office equipment industry (never rusted, beautiful and practical)
5. Petrochemical industry (high temperature resistance, chemical resistance, corrosion resistance, prolong the service life of equipment)
6. Electronics industry (insulation, anti-interference, light weight)
7. Communication industry (insulation, non-magnetic, safety)
8. Shipbuilding industry (acid resistance, alkali resistance, corrosion resistance, prolong service life)

Specification

塑膠螺絲材質特性表/Plastic material characteristics table
  PC PPS RENY PEEK PVC PI PP PTFE PFA PVDF 陶瓷/CERAMIC PA POM
輕量性
吸水性
耐煮沸水性
耐低溫
強韌性
抗蠕變性
抗老化
難燃性
抗電性
耐磨耗
高強度
耐藥性
耐熱性
品號
Product No.
型號
Model number
材質+處理
Material + Surface Treatment
螺紋規格
Thread Specifications
螺桿長
Screw length
牙長
Effective thread length
N017400120 SCBFPEKM3-6 PEEK M3X0.5 6 全牙
N017400121 SCBFPEKM3-8 PEEK M3X0.5 8 全牙
N017400122 SCBFPEKM3-10 PEEK M3X0.5 10 全牙
N017400123 SCBFPEKM3-12 PEEK M3X0.5 12 全牙
N017400124 SCBFPEKM3-15 PEEK M3X0.5 15 全牙
N017400125 SCBFPEKM3-16 PEEK M3X0.5 16 全牙
N017400126 SCBFPEKM3-20 PEEK M3X0.5 20 全牙
N017400127 SCBFPEKM3-25 PEEK M3X0.5 25 全牙
N017400128 SCBFPEKM4-8 PEEK M4X0.7 8 全牙
N017400129 SCBFPEKM4-10 PEEK M4X0.7 10 全牙
N017400130 SCBFPEKM4-12 PEEK M4X0.7 12 全牙
N017400131 SCBFPEKM4-15 PEEK M4X0.7 15 全牙
N017400132 SCBFPEKM4-16 PEEK M4X0.7 16 全牙
N017400133 SCBFPEKM4-20 PEEK M4X0.7 20 全牙
N017400134 SCBFPEKM4-25 PEEK M4X0.7 25 全牙
N017400135 SCBFPEKM4-30 PEEK M4X0.7 30 全牙
N017400136 SCBFPEKM4-35 PEEK M4X0.7 35 全牙
N017400137 SCBFPEKM4-40 PEEK M4X0.7 40 全牙
N017400138 SCBFPEKM5-8 PEEK M5X0.8 8 全牙
N017400139 SCBFPEKM5-10 PEEK M5X0.8 10 全牙
N017400140 SCBFPEKM5-12 PEEK M5X0.8 12 全牙
N017400141 SCBFPEKM5-15 PEEK M5X0.8 15 全牙
N017400142 SCBFPEKM5-16 PEEK M5X0.8 16 全牙
N017400143 SCBFPEKM5-20 PEEK M5X0.8 20 全牙
N017400144 SCBFPEKM5-25 PEEK M5X0.8 25 全牙
N017400145 SCBFPEKM5-30 PEEK M5X0.8 30 全牙
N017400146 SCBFPEKM5-35 PEEK M5X0.8 35 全牙
N017400147 SCBFPEKM5-40 PEEK M5X0.8 40 全牙
N017400148 SCBFPEKM6-10 PEEK M6X1 10 全牙
N017400149 SCBFPEKM6-12 PEEK M6X1 12 全牙
N017400150 SCBFPEKM6-15 PEEK M6X1 15 全牙
N017400151 SCBFPEKM6-16 PEEK M6X1 16 全牙
N017400152 SCBFPEKM6-20 PEEK M6X1 20 全牙
N017400153 SCBFPEKM6-25 PEEK M6X1 25 全牙
N017400154 SCBFPEKM6-30 PEEK M6X1 30 全牙
N017400155 SCBFPEKM6-35 PEEK M6X1 35 全牙
N017400156 SCBFPEKM6-40 PEEK M6X1 40 全牙
N017400157 SCBFPEKM6-45 PEEK M6X1 45 全牙
N017400158 SCBFPEKM6-50 PEEK M6X1 50 全牙
N017400159 SCBFPEKM8-10 PEEK M8X1.25 10 全牙
N017400160 SCBFPEKM8-12 PEEK M8X1.25 12 全牙
N017400161 SCBFPEKM8-15 PEEK M8X1.25 15 全牙
N017400162 SCBFPEKM8-16 PEEK M8X1.25 16 全牙
N017400163 SCBFPEKM8-20 PEEK M8X1.25 20 全牙
N017400164 SCBFPEKM8-25 PEEK M8X1.25 25 全牙
N017400165 SCBFPEKM8-30 PEEK M8X1.25 30 全牙
N017400166 SCBFPEKM8-35 PEEK M8X1.25 35 全牙
N017400167 SCBFPEKM8-40 PEEK M8X1.25 40 全牙
N017400168 SCBFPEKM8-45 PEEK M8X1.25 45 全牙
N017400169 SCBFPEKM8-50 PEEK M8X1.25 50 全牙
N017400170 SCBFPEKM10-20 PEEK M10X1.5 20 全牙
N017400171 SCBFPEKM10-25 PEEK M10X1.5 25 全牙
N017400172 SCBFPEKM10-30 PEEK M10X1.5 30 全牙
N017400173 SCBFPEKM10-35 PEEK M10X1.5 35 全牙
N017400174 SCBFPEKM10-40 PEEK M10X1.5 40 全牙
N017400175 SCBFPEKM10-45 PEEK M10X1.5 45 全牙
N017400176 SCBFPEKM10-50 PEEK M10X1.5 50 全牙
N017400177 SCBFPEKM12-20 PEEK M12X1.75 20 全牙
N017400178 SCBFPEKM12-25 PEEK M12X1.75 25 全牙
N017400179 SCBFPEKM12-30 PEEK M12X1.75 30 全牙
N017400180 SCBFPEKM12-35 PEEK M12X1.75 35 全牙
N017400181 SCBFPEKM12-40 PEEK M12X1.75 40 全牙
N017400182 SCBFPEKM12-45 PEEK M12X1.75 45 全牙
N017400183 SCBFPEKM12-50 PEEK M12X1.75 50 全牙
