Nitrogen Aas Spring

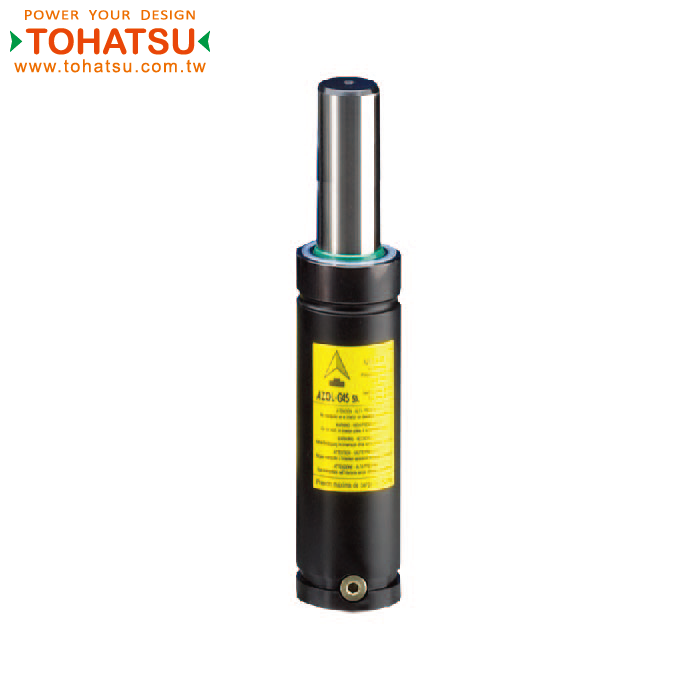

Gas spring (ISO standard (initial load 750kgf))
AG

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Specification

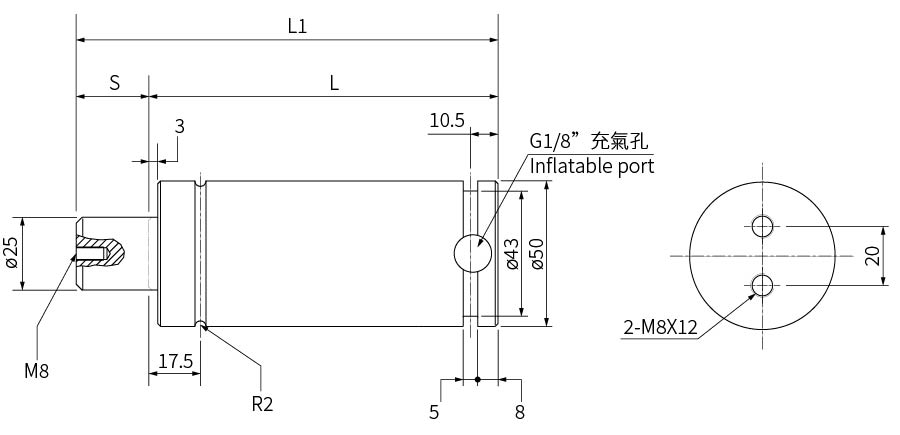

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
AG-750X13 20~150 0~80 2 13 121 108 1.12
AG-750X25 20~150 0~80 2 25 145 120 1.22
AG-750X38 20~150 0~80 2 38 171 133 1.32
AG-750X50 20~150 0~80 2 50 195 145 1.42
AG-750X63.5 20~150 0~80 2 63.5 222 158.5 1.53
AG-750X80 20~150 0~80 2 80 255 175 1.67
AG-750X100 20~150 0~80 2 100 295 195 1.83
AG-750X125 20~150 0~80 2 125 345 220 2.03
AG-750X160 20~150 0~80 2 160 415 255 2.32
AG-750X175 20~150 0~80 2 175 445 270 2.44
AG-750X200 20~150 0~80 2 200 495 295 2.65
AG-750X225 20~150 0~80 2 225 545 320 2.85
AG-750X250 20~150 0~80 2 250 595 345 3.06
AG-750X300 20~150 0~80 2 300 695 395 3.47
