Products

High Precision Washers
Die gasket (custom size)
FCS.A FCS.S FCB.B FCC.C FCA.A

Washers, also known as washers, are parts that are usually used to pad between the connector and the nut.
The main purpose is as a spacer to protect the surface of the connected parts from being scratched by the nut, to disperse the pressure of the nut on the connected parts, and to reduce the detachment caused by vibration.
Common materials: steel, stainless steel, copper, aluminum, iron, plastic, titanium
Main application industries: industry, mold, equipment...etc
Washers can be divided into three types
1. Flat washer
Function: Prevent the surface damage of the connector, increase the contact area and disperse the pressure.
2. Spring washer
Function: used to flexibly prevent loosening and vibration.
3. Anti-loose washers
Function: To prevent the loosening of the connector and prevent the rotation of the screw.

A gasket is a mechanical seal between two objects, usually used to prevent pressure, corrosion, and pipeline leakage between the two objects.
Since the machined surface cannot be perfect, the irregularities can be filled with spacers.
Main use: sealing of pipe flanges, valves, pumps, pressure vessels, etc. some professional equipment
The main application industries are petrochemical, refining, electric power, metallurgy, manufacturing and other industries

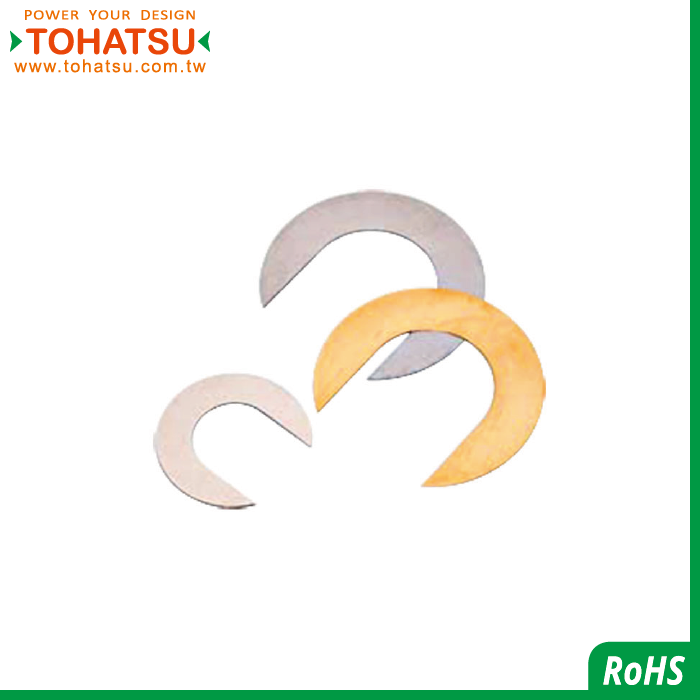

Precision washers are mainly used to adjust the height of the motor and the bearing seat, and to adjust the clearance between the inner and outer rings of the bearing and the shaft end.
The main types are washers/shims plus laminated precision washers/shims (aerospace compliant) for easily changing plate thickness, and base washers for motor mounts and pillow blocks.
Washers/washers that can be used both when tightening screws/bolts and securing spring seats, as well as end plates to prevent gears and bearings from falling off or mechanical parts often used in automation.
Precision washers/gaskets are available in various materials such as iron, hardened steel, stainless steel, brass (brass), copper, aluminum, etc.

Features
1. Provide a variety of gaskets with precise plate thickness tolerances
2. Various specifications and customized size services

application

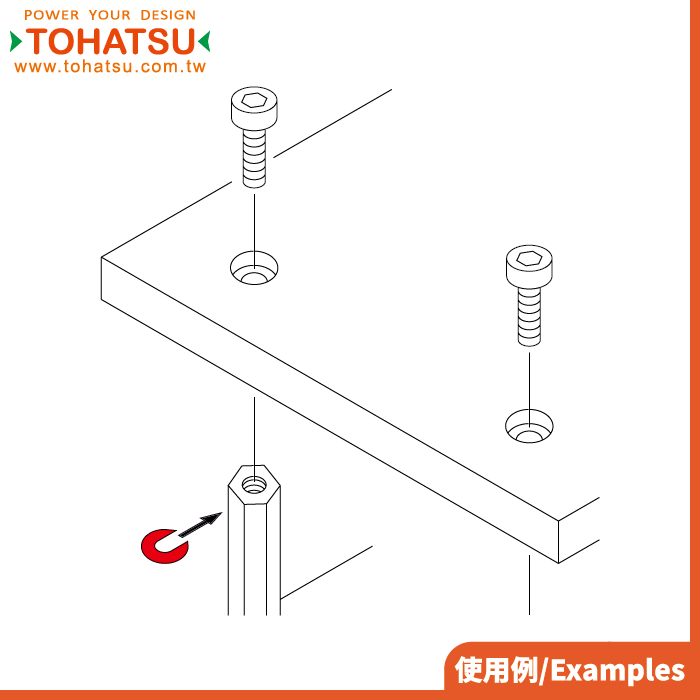

Bearing inner and outer wheels, molds, reducers, various mechanical bases

Specification

您選擇的品號:[請選擇] 詳細資料PDF預覽:點擊預覽
