Nitrogen Aas Spring

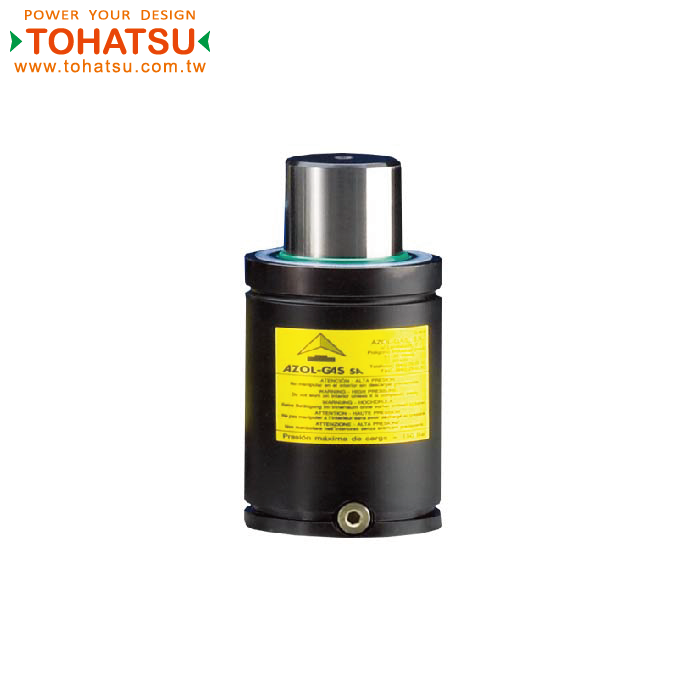

Gas spring (compact height type (initial load 6600kgf))
CW

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

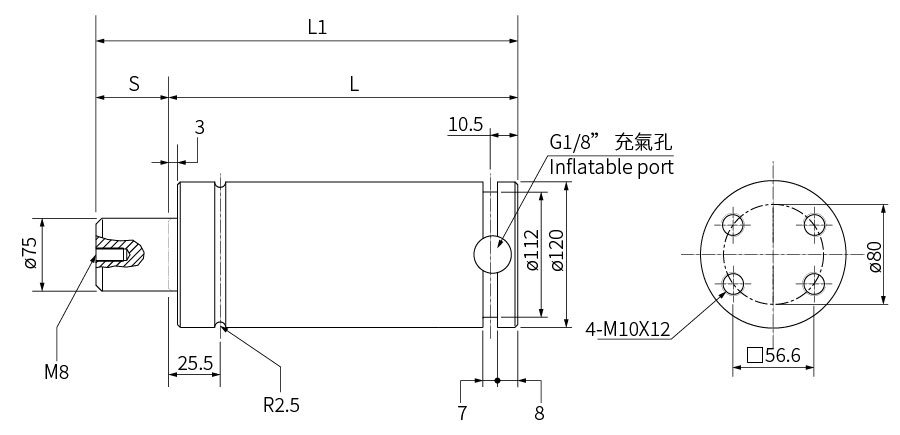

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
CW-6600X16 20~150 0~80 1.6 16 100 84 5.51
CW-6600X19 20~150 0~80 1.6 19 106 87 5.65
CW-6600X25 20~150 0~80 1.6 25 118 93 5.93
CW-6600X32 20~150 0~80 1.6 32 132 100 6.26
CW-6600X38 20~150 0~80 1.6 38 144 106 6.53
CW-6600X50 20~150 0~80 1.6 50 168 118 7.09
CW-6600X63 20~150 0~80 1.6 63 194 131 7.69
CW-6600X75 20~150 0~80 1.6 75 218 143 8.25
CW-6600X80 20~150 0~80 1.6 80 228 148 8.48
CW-6600X100 20~150 0~80 1.6 100 268 168 9.41
CW-6600X125 20~150 0~80 1.6 125 318 193 10.57
