Nitrogen Aas Spring

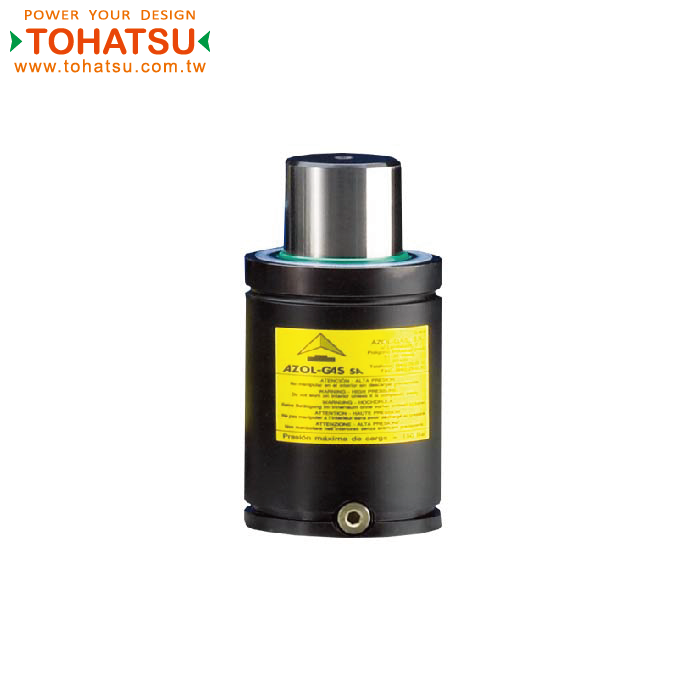

Gas spring (compact height type (initial load 9500kgf))
CW

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

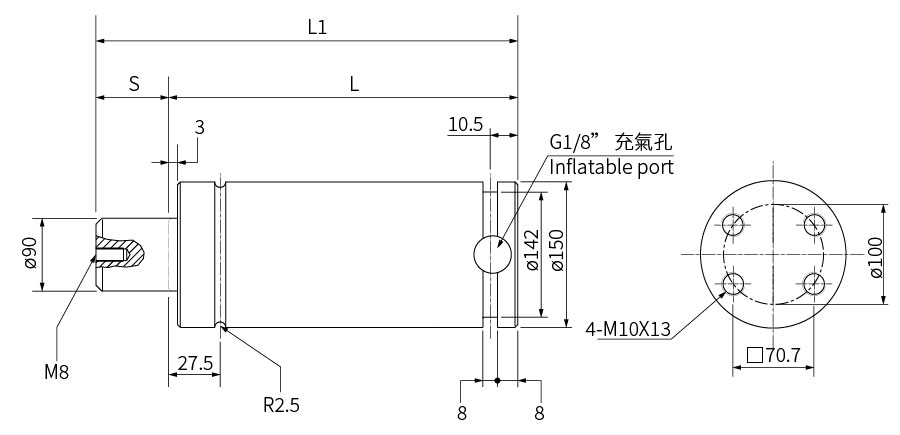

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
CW-9500X19 20~150 0~80 1.6 19 116 97 9.96
CW-9500X25 20~150 0~80 1.6 25 128 103 10.35
CW-9500X32 20~150 0~80 1.6 32 142 110 10.82
CW-9500X38 20~150 0~80 1.6 38 154 116 11.22
CW-9500X50 20~150 0~80 1.6 50 178 128 12.01
CW-9500X63 20~150 0~80 1.6 63 204 141 12.87
CW-9500X75 20~150 0~80 1.6 75 228 153 13.67
CW-9500X80 20~150 0~80 1.6 80 238 158 14
CW-9500X100 20~150 0~80 1.6 100 278 178 15.32
CW-9500X125 20~150 0~80 1.6 125 328 203 16.98
