Plastic screw

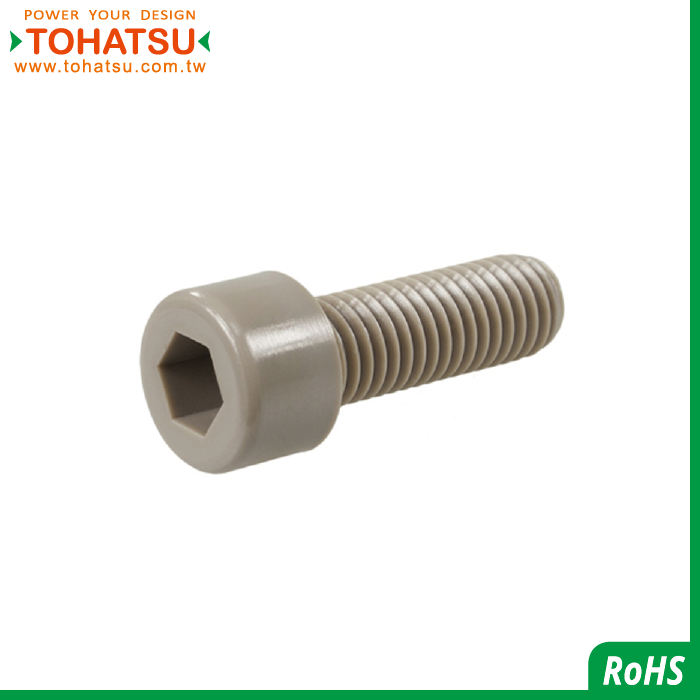

Hexagon socket head plastic screw (Material: PEEK)
PEEKSC

Characteristics of socket head cap screws
1. It is not easy to slip teeth.
2. It can be countersunk in use, that is, the whole nut is sunk into the workpiece, which can keep the surface of the workpiece smooth and beautiful.
3. More assembly occasions, especially narrow occasions, so it is very convenient to assemble and maintain, and it is also convenient to debug.
4. The tools we usually use are adjustable wrenches, screwdrivers and open-end wrenches, etc., and special wrenches must be used to remove the socket head cap screws. Therefore, it is not easy for ordinary people to disassemble, which is also a benefit.

Engineering plastic screws
Features such as insulation, non-magnetic, corrosion resistance, never rust Strength, impact resistance comparable to metal
1. Medical equipment industry (insulation, non-magnetic, environmental protection, anti-interference, make medical equipment safer to use)
2. Wind power industry (isolation and insulation of chassis circuit PCB board)
3. Aerospace industry (insulation and anti-interference on electronic equipment)
4. Office equipment industry (never rusted, beautiful and practical)
5. Petrochemical industry (high temperature resistance, chemical resistance, corrosion resistance, prolong the service life of equipment)
6. Electronics industry (insulation, anti-interference, light weight)
7. Communication industry (insulation, non-magnetic, safety)
8. Shipbuilding industry (acid resistance, alkali resistance, corrosion resistance, prolong service life)

Specification

塑膠螺絲材質特性表/Plastic material characteristics table
  PC PPS RENY PEEK PVC PI PP PTFE PFA PVDF 陶瓷/CERAMIC PA POM
輕量性
吸水性
耐煮沸水性
耐低溫
強韌性
抗蠕變性
抗老化
難燃性
抗電性
耐磨耗
高強度
耐藥性
耐熱性
品號
Product No.
型號
Model number
材質+處理
Material + Surface Treatment
螺紋規格
Thread Specifications
螺桿長
Screw length
牙長
Effective thread length
N0098-000167 PEEKSC-M4X4 PEEK M4X0.7 4 全牙
N0098-000184 PEEKSC-M4X5 PEEK M4X0.7 5 全牙
N0098-000200 PEEKSC-M4X6 PEEK M4X0.7 6 全牙
N0098-000168 PEEKSC-M4X8 PEEK M4X0.7 8 全牙
N0098-000160 PEEKSC-M4X10 PEEK M4X0.7 10 全牙
N0098-000185 PEEKSC-M4X12 PEEK M4X0.7 12 全牙
N0098-000189 PEEKSC-M4X15 PEEK M4X0.7 15 全牙
N0098-000155 PEEKSC-M4X16 PEEK M4X0.7 16 全牙
N0098-000177 PEEKSC-M4X20 PEEK M4X0.7 20 全牙
N0098-000192 PEEKSC-M4X25 PEEK M4X0.7 25 全牙
N0098-000157 PEEKSC-M4X30 PEEK M4X0.7 30 全牙
N0098-000186 PEEKSC-M5X5 PEEK M5X0.8 5 全牙
N0098-000169 PEEKSC-M5X8 PEEK M5X0.8 8 全牙
N0098-000162 PEEKSC-M5X10 PEEK M5X0.8 10 全牙
N0098-000172 PEEKSC-M5X12 PEEK M5X0.8 12 全牙
N0098-000182 PEEKSC-M5X15 PEEK M5X0.8 15 全牙
N0098-000154 PEEKSC-M5X16 PEEK M5X0.8 16 全牙
N0098-000187 PEEKSC-M5X18 PEEK M5X0.8 18 全牙
N0098-000179 PEEKSC-M5X20 PEEK M5X0.8 20 全牙
N0098-000190 PEEKSC-M5X25 PEEK M5X0.8 25 全牙
N0098-000196 PEEKSC-M5X30 PEEK M5X0.8 30 全牙
N0098-000170 PEEKSC-M6X8 PEEK M6X1 8 全牙
N0098-000158 PEEKSC-M6X10 PEEK M6X1 10 全牙
N0098-000174 PEEKSC-M6X12 PEEK M6X1 12 全牙
N0098-000164 PEEKSC-M6X15 PEEK M6X1 15 全牙
N0098-000161 PEEKSC-M6X16 PEEK M6X1 16 全牙
N0098-000175 PEEKSC-M6X20 PEEK M6X1 20 全牙
N0098-000199 PEEKSC-M6X25 PEEK M6X1 25 全牙
N0098-000193 PEEKSC-M6X30 PEEK M6X1 30 全牙
N0098-000159 PEEKSC-M6X35 PEEK M6X1 35 全牙
N0098-000163 PEEKSC-M6X40 PEEK M6X1 40 全牙
N0098-000198 PEEKSC-M8X10 PEEK M8X1.25 10 全牙
N0098-000165 PEEKSC-M8X15 PEEK M8X1.25 15 全牙
N0098-000194 PEEKSC-M8X16 PEEK M8X1.25 16 全牙
N0098-000176 PEEKSC-M8X18 PEEK M8X1.25 18 全牙
N0098-000166 PEEKSC-M8X20 PEEK M8X1.25 20 全牙
N0098-000183 PEEKSC-M8X25 PEEK M8X1.25 25 全牙
N0098-000181 PEEKSC-M8X28 PEEK M8X1.25 28 全牙
N0098-000188 PEEKSC-M8X30 PEEK M8X1.25 30 全牙
N0098-000156 PEEKSC-M8X35 PEEK M8X1.25 35 全牙
N0098-000195 PEEKSC-M8X40 PEEK M8X1.25 40 全牙
N0098-000178 PEEKSC-M8X45 PEEK M8X1.25 45 全牙
N0098-000180 PEEKSC-M10X20 PEEK M10X1.5 20 全牙
N0098-000191 PEEKSC-M10X25 PEEK M10X1.5 25 全牙
N0098-000197 PEEKSC-M10X30 PEEK M10X1.5 30 全牙
N0098-000173 PEEKSC-M10X35 PEEK M10X1.5 35 全牙
N0098-000171 PEEKSC-M10X40 PEEK M10X1.5 40 全牙
