Nitrogen Aas Spring

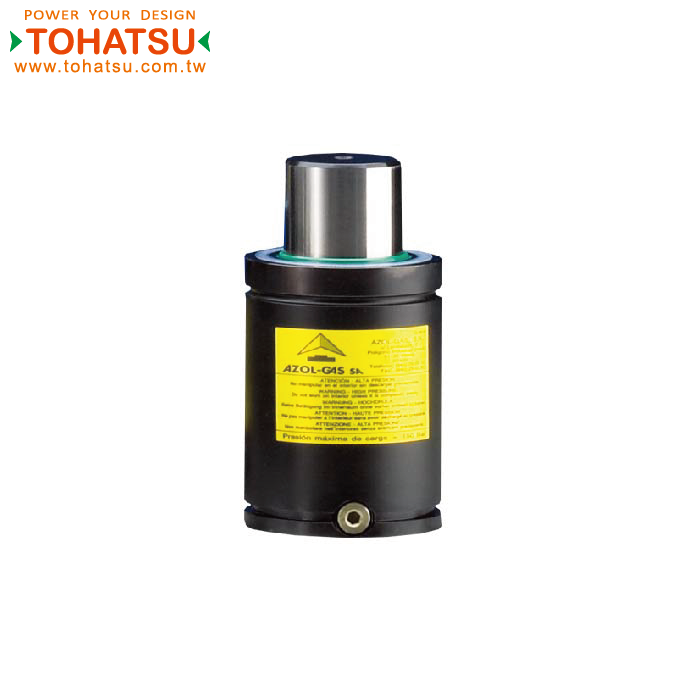

Gas spring (compact height type (initial load 320kgf))
CW

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

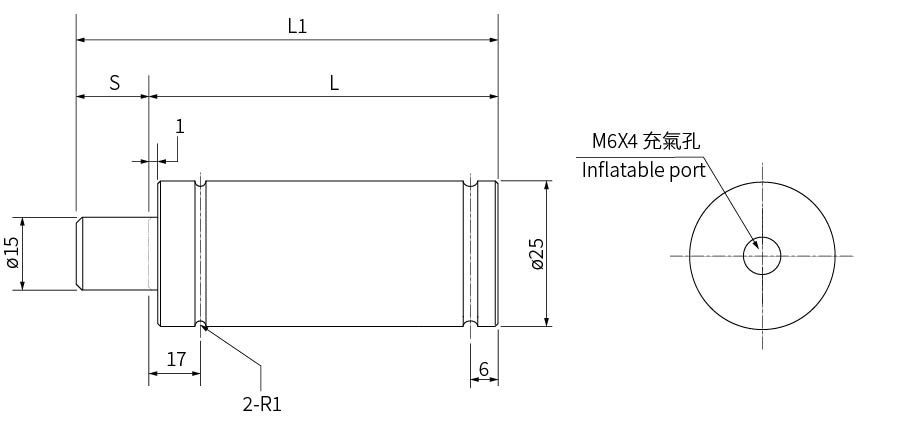

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
CW-320X7 20~180 0~80 1.6 7 44 37 0.11
CW-320X10 20~180 0~80 1.6 10 50 40 0.11
CW-320X12 20~180 0~80 1.6 12 54 42 0.12
CW-320X15 20~180 0~80 1.6 15 60 45 0.13
CW-320X19 20~180 0~80 1.6 19 68 49 0.13
CW-320X25 20~180 0~80 1.6 25 80 55 0.15
CW-320X32 20~180 0~80 1.6 32 94 62 0.16
CW-320X38 20~180 0~80 1.6 38 106 68 0.18
CW-320X50 20~180 0~80 1.6 50 130 80 0.21
CW-320X63 20~180 0~80 1.6 63 156 93 0.23
CW-320X75 20~180 0~80 1.6 75 185 110 0.26
CW-320X80 20~180 0~80 1.6 80 195 115 0.27
CW-320X100 20~180 0~80 1.6 100 235 135 0.32
CW-320X125 20~180 0~80 1.6 125 285 160 0.38
