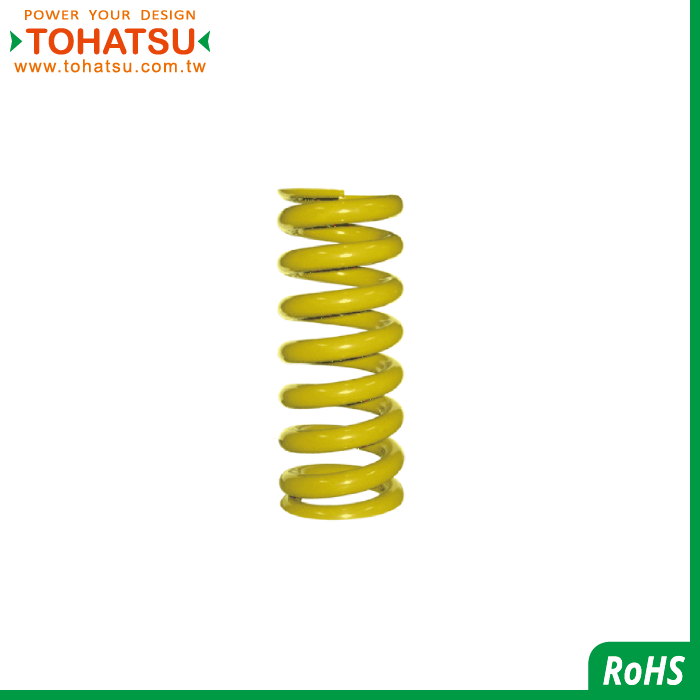

MEGA COLL(Round Wire Spring)
Round Wire Spring (MEGA COLL (Super High Load) Compression 24%)
MCB

MEGA COLL strong round wire spring is specially developed for special machinery and equipment,
MEGA COLL is an ultra-heavy load spring, small in size, space-saving, easy to install, and improves efficiency

Load calculation method
Load (N) = Spring constant (N/mm) × compression (mm)

Specification

品號
Product No.
材質
Materials
外徑
Outer diameter
內徑
Inner diameter
線徑
Wire Diameter
自由長
Free length
定數(N/mm)
Spring constant
參考荷重(N)
Reference load
MCB-72-090 SWOSC-V 72 40.5 15.75 90 754.1 16288.56
MCB-72-100 SWOSC-V 72 40.5 15.75 100 678.6 16286.4
MCB-72-125 SWOSC-V 72 40.5 15.75 125 543.3 16299
MCB-72-150 SWOSC-V 72 40.5 15.75 150 453.1 16311.6
MCB-72-175 SWOSC-V 72 40.5 15.75 175 388.3 16308.6
MCB-72-200 SWOSC-V 72 40.5 15.75 200 339.3 16286.4
MCB-72-250 SWOSC-V 72 40.5 15.75 250 271.6 16296
MCB-72-300 SWOSC-V 72 40.5 15.75 300 226.5 16308
