Nitrogen Aas Spring

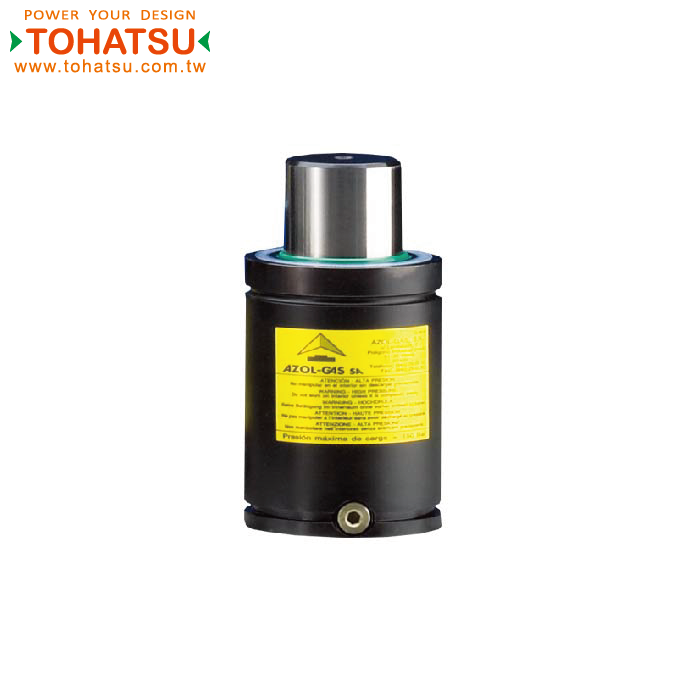

Gas spring (compact height type (initial load 2400kgf))
CW

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

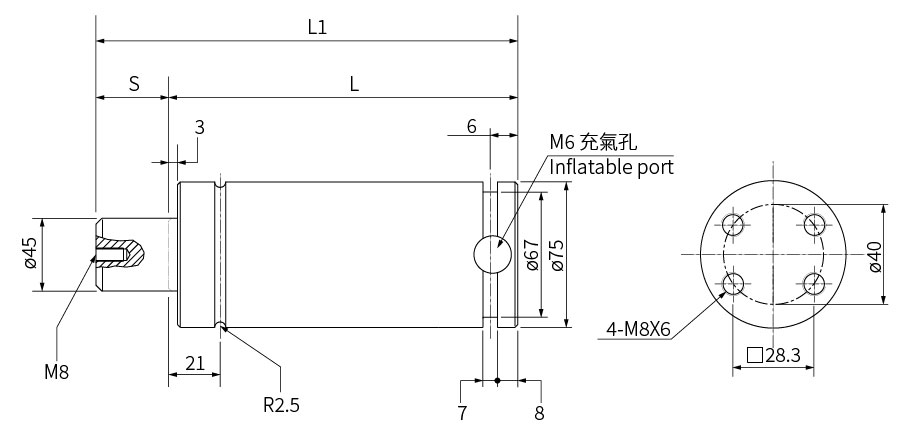

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
CW-2400X13 20~150 0~80 1.6 13 71 58 1.41
CW-2400X16 20~150 0~80 1.6 16 77 61 1.46
CW-2400X19 20~150 0~80 1.6 19 83 64 1.51
CW-2400X25 20~150 0~80 1.6 25 95 70 1.62
CW-2400X32 20~150 0~80 1.6 32 109 77 1.74
CW-2400X38 20~150 0~80 1.6 38 121 83 1.84
CW-2400X50 20~150 0~80 1.6 50 145 95 2.05
CW-2400X63 20~150 0~80 1.6 63 171 108 2.27
CW-2400X75 20~150 0~80 1.6 75 195 120 2.47
CW-2400X80 20~150 0~80 1.6 80 205 125 2.56
CW-2400X100 20~150 0~80 1.6 100 245 145 2.9
CW-2400X125 20~150 0~80 1.6 125 295 170 3.33
