Round Wire Spring

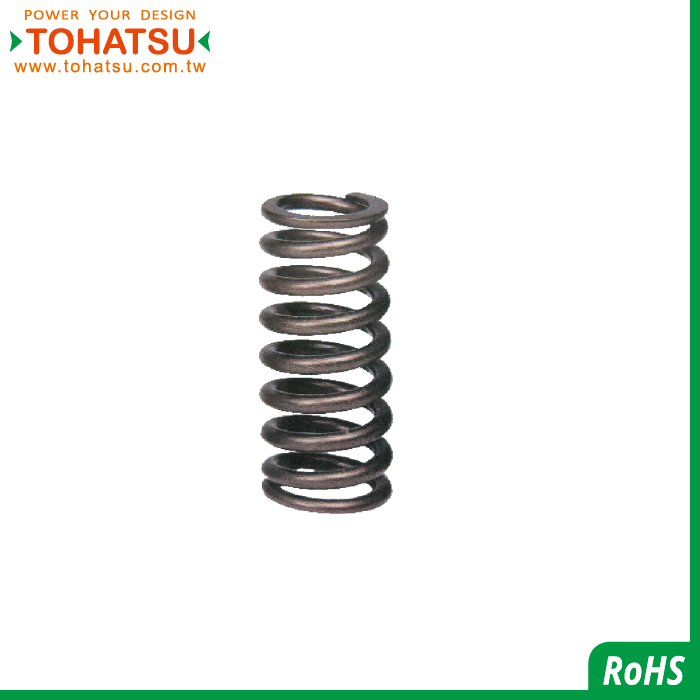

Round Wire Spring (Material: SWOSC-V, Compression 32%)
LR
Round wire springs, also known as coil springs, are a type of compression springs and compression springs. They are the most common type of springs. The materials are piano steel wire (SWP) and stainless steel wire (SUS304), which have different degrees of heat resistance and load. The ejection force is smaller and the compression is larger. Usually used in designs with high ejection amount (height) such as ejector pins and sliders
This product accepts customization, unlimited quantity, please fill in the spring customization form
Specification
圓線彈簧客製化表單(Round Wire Spring Customized Form):請點擊
| 產品資訊\Product Information | ||||||||
|
材質
Materials
|
顏色
color
|
使用溫度(ºC)
Operating temperature (ºC)
|
圓線彈簧公差表
Round Wire Spring Tolerance Table
|
|||||
|
外徑
Outside diameter
|
內徑
inside diameter
|
荷重(%)
Load
|
直角度(º)
Right Angle
|
自由長
Free length
|
||||
| SWOSC-V |
本色
True Color
|
100 |
+0/-0.5
|
+0.7/-0.4 | ±10 | ±2 | ≦50 | ≧55 |
| ±0.5 | ±1% | |||||||
| 規格表\Specification Table |
|
品號
Product No.
|
外徑
Outside diameter
|
內徑
inside diameter
|
線徑
Wire Diameter
|
自由長
Free length
|
定數(N/mm)
Spring constant
|
|---|---|---|---|---|---|
| LR03-010 | 3 | 2 | 0.5 | 10 | 2.79 |
| LR03-015 | 3 | 2 | 0.5 | 15 | 1.86 |
| LR03-020 | 3 | 2 | 0.5 | 20 | 1.4 |
| LR03-025 | 3 | 2 | 0.5 | 25 | 1.12 |
| LR04-010 | 4 | 2.6 | 0.7 | 10 | 4.92 |
| LR04-015 | 4 | 2.6 | 0.7 | 15 | 3.28 |
| LR04-020 | 4 | 2.6 | 0.7 | 20 | 2.46 |
| LR04-025 | 4 | 2.6 | 0.7 | 25 | 1.97 |
| LR04-030 | 4 | 2.6 | 0.7 | 30 | 1.64 |
| LR06-015 | 6 | 4 | 1 | 15 | 7.36 |
| LR06-020 | 6 | 4 | 1 | 20 | 5.52 |
| LR06-025 | 6 | 4 | 1 | 25 | 4.42 |
| LR06-030 | 6 | 4 | 1 | 30 | 3.68 |
| LR06-035 | 6 | 4 | 1 | 35 | 3.15 |
| LR08-015 | 8 | 5.4 | 1.3 | 15 | 13.08 |
| LR08-020 | 8 | 5.4 | 1.3 | 20 | 9.81 |
| LR08-025 | 8 | 5.4 | 1.3 | 25 | 7.85 |
| LR08-030 | 8 | 5.4 | 1.3 | 30 | 6.54 |
| LR08-035 | 8 | 5.4 | 1.3 | 35 | 5.61 |
| LR08-040 | 8 | 5.4 | 1.3 | 40 | 4.91 |
| LR10-025 | 10 | 6.5 | 1.75 | 25 | 12.27 |
| LR10-030 | 10 | 6.5 | 1.75 | 30 | 10.22 |
| LR10-035 | 10 | 6.5 | 1.75 | 35 | 8.76 |
| LR10-040 | 10 | 6.5 | 1.75 | 40 | 7.67 |
| LR10-045 | 10 | 6.5 | 1.75 | 45 | 6.81 |
| LR10-050 | 10 | 6.5 | 1.75 | 50 | 6.13 |
| LR12-025 | 12 | 8 | 2 | 25 | 17.65 |
| LR12-030 | 12 | 8 | 2 | 30 | 14.71 |
| LR12-035 | 12 | 8 | 2 | 35 | 12.61 |
| LR12-040 | 12 | 8 | 2 | 40 | 11.03 |
| LR12-045 | 12 | 8 | 2 | 45 | 9.81 |
| LR12-050 | 12 | 8 | 2 | 50 | 8.83 |
| LR12-055 | 12 | 8 | 2 | 55 | 8.02 |
| LR12-060 | 12 | 8 | 2 | 60 | 7.35 |
| LR14-025 | 14 | 9.3 | 2.35 | 25 | 24.03 |
| LR14-030 | 14 | 9.3 | 2.35 | 30 | 20.03 |
| LR14-035 | 14 | 9.3 | 2.35 | 35 | 17.17 |
| LR14-040 | 14 | 9.3 | 2.35 | 40 | 15.02 |
| LR14-045 | 14 | 9.3 | 2.35 | 45 | 13.35 |
| LR14-050 | 14 | 9.3 | 2.35 | 50 | 12.02 |
| LR14-055 | 14 | 9.3 | 2.35 | 55 | 10.92 |
| LR14-060 | 14 | 9.3 | 2.35 | 60 | 10.01 |
| LR14-065 | 14 | 9.3 | 2.35 | 65 | 9.24 |
| LR14-070 | 14 | 9.3 | 2.35 | 70 | 8.58 |
| LR16-025 | 16 | 10.7 | 2.65 | 25 | 31.38 |
| LR16-030 | 16 | 10.7 | 2.65 | 30 | 26.15 |
| LR16-035 | 16 | 10.7 | 2.65 | 35 | 22.42 |
| LR16-040 | 16 | 10.7 | 2.65 | 40 | 19.61 |
| LR16-045 | 16 | 10.7 | 2.65 | 45 | 17.44 |
| LR16-050 | 16 | 10.7 | 2.65 | 50 | 15.69 |
| LR16-055 | 16 | 10.7 | 2.65 | 55 | 14.27 |
| LR16-060 | 16 | 10.7 | 2.65 | 60 | 13.08 |
| LR16-065 | 16 | 10.7 | 2.65 | 65 | 12.07 |
| LR16-070 | 16 | 10.7 | 2.65 | 70 | 11.21 |
| LR16-075 | 16 | 10.7 | 2.65 | 75 | 10.46 |
| LR16-080 | 16 | 10.7 | 2.65 | 80 | 9.81 |
| LR18-025 | 18 | 12 | 3 | 25 | 39.72 |
| LR18-030 | 18 | 12 | 3 | 30 | 33.1 |
| LR18-035 | 18 | 12 | 3 | 35 | 28.37 |
| LR18-040 | 18 | 12 | 3 | 40 | 24.82 |
| LR18-045 | 18 | 12 | 3 | 45 | 22.06 |
| LR18-050 | 18 | 12 | 3 | 50 | 19.86 |
| LR18-055 | 18 | 12 | 3 | 55 | 18.05 |
| LR18-060 | 18 | 12 | 3 | 60 | 16.55 |
| LR18-065 | 18 | 12 | 3 | 65 | 15.28 |
| LR18-070 | 18 | 12 | 3 | 70 | 14.18 |
| LR18-075 | 18 | 12 | 3 | 75 | 13.24 |
| LR18-080 | 18 | 12 | 3 | 80 | 12.41 |
| LR18-090 | 18 | 12 | 3 | 90 | 11.03 |
| LR20-025 | 20 | 13.5 | 3.25 | 25 | 49.03 |
| LR20-030 | 20 | 13.5 | 3.25 | 30 | 40.86 |
| LR20-035 | 20 | 13.5 | 3.25 | 35 | 35.02 |
| LR20-040 | 20 | 13.5 | 3.25 | 40 | 30.65 |
| LR20-045 | 20 | 13.5 | 3.25 | 45 | 27.24 |
| LR20-050 | 20 | 13.5 | 3.25 | 50 | 24.52 |
| LR20-055 | 20 | 13.5 | 3.25 | 55 | 22.29 |
| LR20-060 | 20 | 13.5 | 3.25 | 60 | 20.43 |
| LR20-065 | 20 | 13.5 | 3.25 | 65 | 18.86 |
| LR20-070 | 20 | 13.5 | 3.25 | 70 | 17.51 |
| LR20-075 | 20 | 13.5 | 3.25 | 75 | 16.34 |
| LR20-080 | 20 | 13.5 | 3.25 | 80 | 15.32 |
| LR20-090 | 20 | 13.5 | 3.25 | 90 | 13.62 |
| LR20-100 | 20 | 13.5 | 3.25 | 100 | 12.26 |
| LR22-025 | 22 | 14.7 | 3.65 | 25 | 59.33 |
| LR22-030 | 22 | 14.7 | 3.65 | 30 | 49.44 |
| LR22-035 | 22 | 14.7 | 3.65 | 35 | 42.38 |
| LR22-040 | 22 | 14.7 | 3.65 | 40 | 37.08 |
| LR22-045 | 22 | 14.7 | 3.65 | 45 | 32.96 |
| LR22-050 | 22 | 14.7 | 3.65 | 50 | 29.67 |
| LR22-055 | 22 | 14.7 | 3.65 | 55 | 26.97 |
| LR22-060 | 22 | 14.7 | 3.65 | 60 | 24.72 |
| LR22-065 | 22 | 14.7 | 3.65 | 65 | 22.82 |
| LR22-070 | 22 | 14.7 | 3.65 | 70 | 21.19 |
| LR22-075 | 22 | 14.7 | 3.65 | 75 | 19.78 |
| LR22-080 | 22 | 14.7 | 3.65 | 80 | 18.54 |
| LR22-090 | 22 | 14.7 | 3.65 | 90 | 16.48 |
| LR22-100 | 22 | 14.7 | 3.65 | 100 | 14.83 |
| LR25-025 | 25 | 17 | 4 | 25 | 76.67 |
| LR25-030 | 25 | 17 | 4 | 30 | 63.89 |
| LR25-035 | 25 | 17 | 4 | 35 | 54.76 |
| LR25-040 | 25 | 17 | 4 | 40 | 47.92 |
| LR25-045 | 25 | 17 | 4 | 45 | 42.59 |
| LR25-050 | 25 | 17 | 4 | 50 | 38.33 |
| LR25-055 | 25 | 17 | 4 | 55 | 34.85 |
| LR25-060 | 25 | 17 | 4 | 60 | 31.94 |
| LR25-065 | 25 | 17 | 4 | 65 | 29.49 |
| LR25-070 | 25 | 17 | 4 | 70 | 27.38 |
| LR25-075 | 25 | 17 | 4 | 75 | 25.56 |
| LR25-080 | 25 | 17 | 4 | 80 | 23.96 |
| LR25-090 | 25 | 17 | 4 | 90 | 21.3 |
| LR25-100 | 25 | 17 | 4 | 100 | 19.17 |
