Advantage
1.High productivity

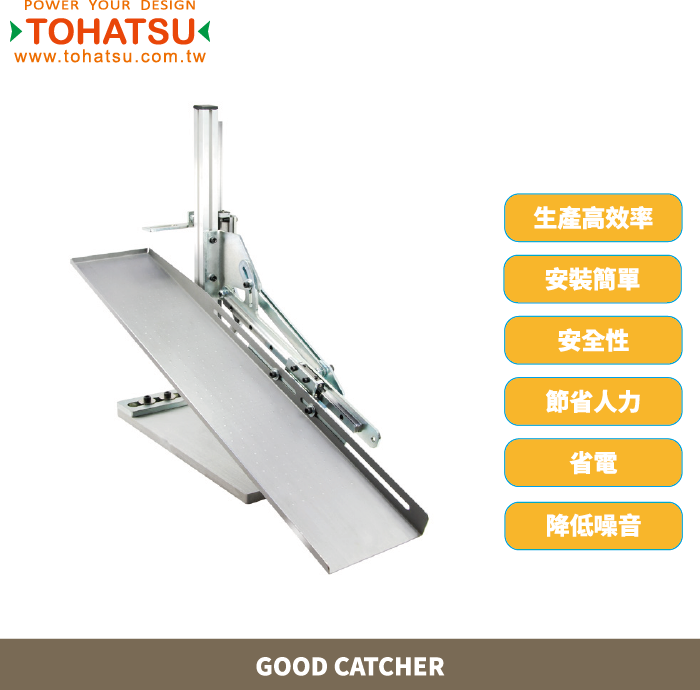

GOOD CATCHER is able to shorten the processing time especially for the small amount of various production.
2.Easy installation
Thanks to the intuitive design, the installation could be done in few minutes. Without complicated structure, GOOD CATCHER has low maintenance requirement.
3.Safety Improvement
GOOD CATCHER could prevent the operators from the injury caused by pressing. The work safety is guaranteed.
4.Labor Saving
With GOOD CATCHER assist, no labors are needed to unload the parts while pressing. The manpower could be saved with no doubt.
5.Power Saving
GOOD CATCHER is driven by the kinetic energy from press machine. Electricity is totally not required.
6.Noise Reduction
GOOD CATCHER replaces the air compressor for the blowing. It offers a better working environment with less noise.
影片參考及詢價:請點擊
-
Production Revolution
|
1.Stable Catch Top Dead Point：
Parts fall & Tray catches
|
2.Smooth Slide Midway：
Tray is driven to move parts
|
3.Precise delivery Bottom Dead Point：
Parts are delivered to the container.
|
 |
 |
 |
-
Before & After
1.Quality issue and Dies-Broken due to air blowing |
 |
1.Reduce the defects and Dies-Broken |
 |

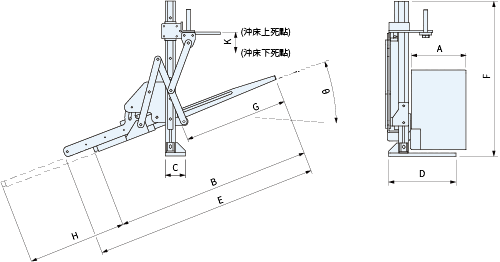

Specifications and dimensions
|
品號
Product No.
|
A 托盤(Tray) |
B 托盤(Tray) |
C | D | E | F | G |
H
托盤移動 (Tray Movement)
|
| ACT-5-300-80 | 150 | 750 | 60 | 200 | 800 | 500 | 320 | 300 |
| ACT-5-300-100 | ||||||||
| ACT-5-300-120 | ||||||||
| ACT-5-300-150 | ||||||||
| ACT-5-300-160 | ||||||||
| ACT-5-300-180 | ||||||||
| ACT-5-300-200 |
| Type |
K
沖床行程 (Punch stroke)
|
TS
沖床噸數 (Punch Tons)
|
沖床型式
(Punch type)
|
閉模高度
(Mould closed height)
|
SPM
每分鐘沖數 (strokes per minute)
|
θ
最大傾斜角 (Maximum inclination angle)
|
沖壓件重量(kg)
(Stamping weight)
|
| ACT-5 | 80 | 80 |
傳統沖床
(traditional punch)
氣壓沖床 (Pneumatic punch)
|
≦500 | ＜50 | 60 | <0.7 |
| 100 | 80 | ||||||
| 150 | 80 | ||||||
| 80 | 110 | ||||||
| 100 | 110 | ||||||
| 180 | 110 | ||||||
| 120 | 160 | ＜40 | |||||
| 200 | 160 | ||||||
| 120 | 200 | ||||||
| 160 | 260 |
