Fully-Threaded Bolts

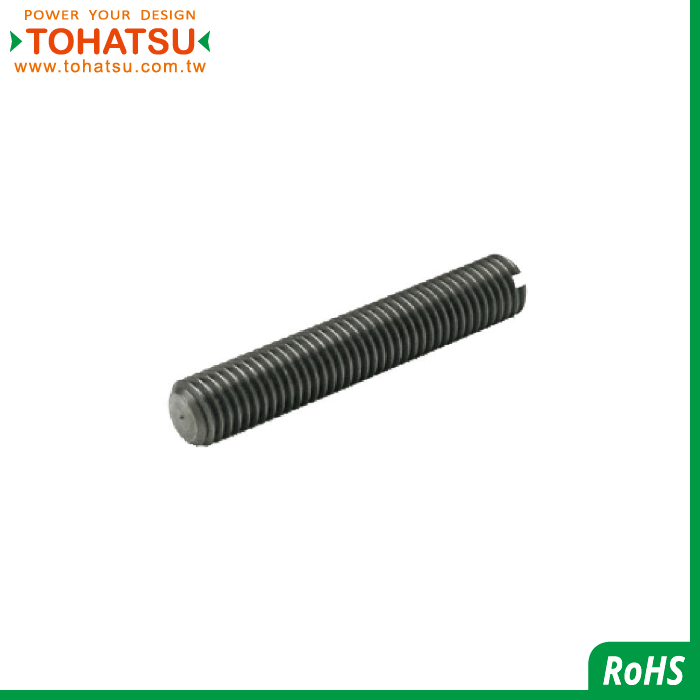

Fully-Threaded Bolts With slotted hole (Material: Steel)
SGR551.1

Rods, also known as studs, can extend the entire length of the rod. Can be used to attach or displace the platform.

Specification

品號
Product No.
材質+處理
Material + Surface Treatment
螺紋規格
Thread Specifications
螺桿長
Screw length
SGR551.1-0010 鋼+染黑 M6X1 20
SGR551.1-0012 鋼+染黑 M6X1 25
SGR551.1-0014 鋼+染黑 M6X1 30
SGR551.1-0016 鋼+染黑 M6X1 35
SGR551.1-0018 鋼+染黑 M6X1 40
SGR551.1-0020 鋼+染黑 M6X1 45
SGR551.1-0022 鋼+染黑 M6X1 50
SGR551.1-0024 鋼+染黑 M6X1 55
SGR551.1-0026 鋼+染黑 M6X1 60
SGR551.1-0028 鋼+染黑 M6X1 70
SGR551.1-0030 鋼+染黑 M8X1.25 25
SGR551.1-0032 鋼+染黑 M8X1.25 30
SGR551.1-0034 鋼+染黑 M8X1.25 35
SGR551.1-0036 鋼+染黑 M8X1.25 40
SGR551.1-0038 鋼+染黑 M8X1.25 45
SGR551.1-0040 鋼+染黑 M8X1.25 50
SGR551.1-0042 鋼+染黑 M8X1.25 55
SGR551.1-0044 鋼+染黑 M8X1.25 60
SGR551.1-0046 鋼+染黑 M8X1.25 70
SGR551.1-0048 鋼+染黑 M8X1.25 80
SGR551.1-0050 鋼+染黑 M10X1.5 25
SGR551.1-0052 鋼+染黑 M10X1.5 30
SGR551.1-0054 鋼+染黑 M10X1.5 35
SGR551.1-0056 鋼+染黑 M10X1.5 40
SGR551.1-0058 鋼+染黑 M10X1.5 45
SGR551.1-0060 鋼+染黑 M10X1.5 50
SGR551.1-0062 鋼+染黑 M10X1.5 55
SGR551.1-0064 鋼+染黑 M10X1.5 60
SGR551.1-0066 鋼+染黑 M10X1.5 70
SGR551.1-0068 鋼+染黑 M10X1.5 80
SGR551.1-0070 鋼+染黑 M12X1.75 30
SGR551.1-0072 鋼+染黑 M12X1.75 35
SGR551.1-0074 鋼+染黑 M12X1.75 40
SGR551.1-0076 鋼+染黑 M12X1.75 45
SGR551.1-0078 鋼+染黑 M12X1.75 50
SGR551.1-0080 鋼+染黑 M12X1.75 55
SGR551.1-0082 鋼+染黑 M12X1.75 60
SGR551.1-0084 鋼+染黑 M12X1.75 70
SGR551.1-0086 鋼+染黑 M12X1.75 80
SGR551.1-0088 鋼+染黑 M12X1.75 100
SGR551.1-0090 鋼+染黑 M16X2 30
SGR551.1-0092 鋼+染黑 M16X2 35
SGR551.1-0094 鋼+染黑 M16X2 40
SGR551.1-0096 鋼+染黑 M16X2 45
SGR551.1-0098 鋼+染黑 M16X2 50
SGR551.1-0100 鋼+染黑 M16X2 55
SGR551.1-0102 鋼+染黑 M16X2 60
SGR551.1-0104 鋼+染黑 M16X2 70
SGR551.1-0106 鋼+染黑 M16X2 80
SGR551.1-0108 鋼+染黑 M16X2 100
SGR551.1-0110 鋼+染黑 M20X2.5 40
SGR551.1-0112 鋼+染黑 M20X2.5 50
SGR551.1-0114 鋼+染黑 M20X2.5 60
SGR551.1-0116 鋼+染黑 M20X2.5 70
SGR551.1-0118 鋼+染黑 M20X2.5 80
SGR551.1-0120 鋼+染黑 M20X2.5 90
SGR551.1-0122 鋼+染黑 M20X2.5 100
