Vehicle modified shock absorber spring

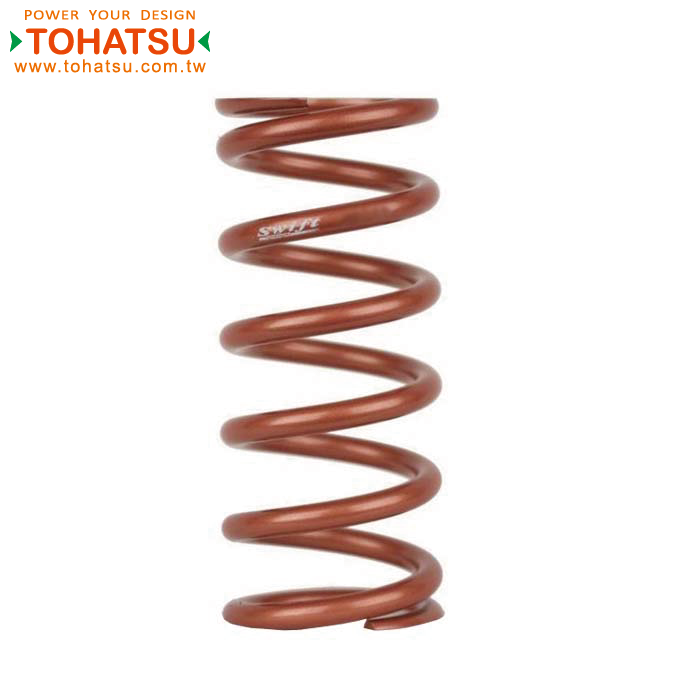

Racing Spring (Brown)
Z65

1. Spring material
Using special high-strength steel wire H5S/TW (tensile force = 2000N/mm2). In addition to having excellent fatigue resistance and fatigue resistance, significant weight reduction is also achieved.

2. Spring characteristics
Use in high stress areas is achieved by raw machining. Flexibility and toughness can be obtained.

3. Significant weight reduction improves athletic performance
By reducing the weight of the spring, the return speed (recoverability) is increased by about 10% compared to the past. Achieve road following, faster body stability and smooth steering when cornering.

4. Ensure stable spring constant and large stroke
Improve spring constant accuracy in application areas with our unique technology. It provides a comfortable ride and lightens the tires.
Measurement results: within 30% to 70% of maximum allowable travel → spring constant tolerance within ± 3%

When using Swift spring
Since quick springs do not have allowable travel until close contact between the wires, check the shock travel and allowable travel of quick springs before choosing a free length. Also, even within the allowable travel range, you can experience the difference between a traditional product and a Swift spring if you leave room for travel and use the free length one size longer.

Note: If the main spring is used in close contact (full compression), it will not only damage the original spring performance, but also have the risk of sagging, deformation or breaking, please use it within the load range.

Specification

品號
Product No.
內徑
Inner diameter
自由長
Free length
彈簧定數kgf/mm
Spring constant
最大許容作動長
Maximum allowable action length
最大許容荷重kgf
Maximum allowable load
質量kg
Quality
Z65-102-180 65 102 18 53 954 0.94
Z65-102-200 65 102 20 50 1000 0.98
Z65-102-220 65 102 22 48 1056 1.03
Z65-102-240 65 102 24 48 1152 1.11
Z65-102-260 65 102 26 47 1222 1.17
Z65-102-280 65 102 28 45 1260 1.19
Z65-102-300 65 102 30 45 1350 1.25
Z65-102-320 65 102 32 44 1408 1.28
Z65-102-340 65 102 34 43 1462 1.35
Z65-102-380 65 102 38 43 1634 1.45
Z65-102-420 65 102 42 40 1680 1.57
Z65-102-460 65 102 46 40 1840 1.62
Z65-102-500 65 102 50 37 1850 1.62
Z65-127-080 65 127 8 70 560 0.7
Z65-127-100 65 127 10 72 720 0.77
Z65-127-120 65 127 12 68 816 0.84
Z65-127-140 65 127 14 67 938 0.95
Z65-127-160 65 127 16 64 1024 1.01
Z65-127-180 65 127 18 63 1134 1.11
Z65-127-200 65 127 20 63 1260 1.23
Z65-127-220 65 127 22 62 1364 1.31
Z65-127-240 65 127 24 60 1440 1.36
Z65-127-260 65 127 26 58 1508 1.42
Z65-127-280 65 127 28 56 1568 1.48
Z65-127-300 65 127 30 55 1650 1.5
Z65-127-320 65 127 32 53 1696 1.52
Z65-127-340 65 127 34 52 1768 1.6
Z65-127-380 65 127 38 50 1900 1.94
Z65-127-420 65 127 42 45 1890 1.81
Z65-127-460 65 127 46 45 2070 1.96
Z65-127-500 65 127 50 43 2150 2.11
Z65-152-040 65 152 4 103 412 0.64
Z65-152-050 65 152 5 95 475 0.71
Z65-152-060 65 152 6 93 558 0.7
Z65-152-070 65 152 7 89 623 0.89
Z65-152-080 65 152 8 84 672 0.82
Z65-152-090 65 152 9 79 711 0.83
Z65-152-100 65 152 10 74 740 0.83
Z65-152-110 65 152 11 72 792 0.88
Z65-152-120 65 152 12 71 852 0.93
Z65-152-130 65 152 13 70 910 0.99
Z65-152-140 65 152 14 71 994 1.09
Z65-152-150 65 152 15 69 1035 1.12
Z65-152-160 65 152 16 69 1104 1.19
Z65-152-180 65 152 18 64 1152 1.18
Z65-152-200 65 152 20 62 1240 1.21
Z65-152-220 65 152 22 61 1342 1.3
Z65-152-240 65 152 24 59 1416 1.35
Z65-152-260 65 152 26 57 1482 1.47
Z65-152-280 65 152 28 56 1568 1.58
Z65-152-300 65 152 30 56 1680 1.83
Z65-152-320 65 152 32 54 1728 1.86
Z65-152-340 65 152 34 55 1870 2.06
Z65-178-040 65 178 4 120 480 0.74
Z65-178-050 65 178 5 110 550 0.81
Z65-178-060 65 178 6 106 636 0.89
Z65-178-070 65 178 7 93 651 0.91
Z65-178-080 65 178 8 93 744 0.98
Z65-178-090 65 178 9 89 801 1.02
Z65-178-100 65 178 10 86 860 1.06
Z65-178-110 65 178 11 83 913 1.12
Z65-178-120 65 178 12 83 996 1.22
Z65-178-130 65 178 13 80 1040 1.25
Z65-178-140 65 178 14 80 1120 1.32
Z65-178-150 65 178 15 76 1140 1.34
Z65-178-160 65 178 16 76 1216 1.43
Z65-178-180 65 178 18 73 1314 1.5
Z65-178-200 65 178 20 70 1400 1.54
Z65-178-220 65 178 22 68 1496 1.58
Z65-178-240 65 178 24 68 1632 1.74
Z65-178-260 65 178 26 67 1742 1.94
Z65-178-280 65 178 28 66 1848 2.13
Z65-203-040 65 203 4 132 528 0.87
Z65-203-050 65 203 5 126 630 1.03
Z65-203-060 65 203 6 118 708 1.12
Z65-203-070 65 203 7 115 805 1.23
Z65-203-080 65 203 8 107 856 1.26
Z65-203-090 65 203 9 102 918 1.3
Z65-203-100 65 203 10 100 1000 1.41
Z65-203-110 65 203 11 92 1012 1.41
Z65-203-120 65 203 12 92 1104 1.48
Z65-203-130 65 203 13 89 1157 1.5
Z65-203-140 65 203 14 87 1218 1.58
Z65-203-160 65 203 16 87 1392 1.82
Z65-203-180 65 203 18 82 1476 1.84
Z65-203-200 65 203 20 79 1580 1.87
Z65-203-220 65 203 22 78 1716 2.2
Z65-203-240 65 203 24 77 1848 2.26
Z65-228-040 65 228 4 138 552 0.96
Z65-228-050 65 228 5 127 635 1.03
Z65-228-060 65 228 6 124 744 1.22
Z65-228-070 65 228 7 115 805 1.23
Z65-228-080 65 228 8 113 904 1.37
Z65-228-090 65 228 9 112 1008 1.53
Z65-228-100 65 228 10 104 1040 1.52
Z65-228-120 65 228 12 102 1224 1.78
Z65-228-140 65 228 14 94 1316 1.82
Z65-228-160 65 228 16 92 1472 2.01
Z65-254-030 65 254 3 160 480 0.93
Z65-254-040 65 254 4 157 628 1.23
Z65-254-050 65 254 5 150 750 1.42
Z65-254-060 65 254 6 144 864 1.59
Z65-254-070 65 254 7 132 924 1.59
Z65-254-080 65 254 8 125 1000 1.68
Z65-254-090 65 254 9 124 1116 1.84
Z65-254-100 65 254 10 116 1160 1.84
Z65-254-120 65 254 12 111 1332 2.06
Z65-254-140 65 254 14 100 1400 2.02
D65-300-050 65 300 5 171 855 1.62
