Products

Plastic screw

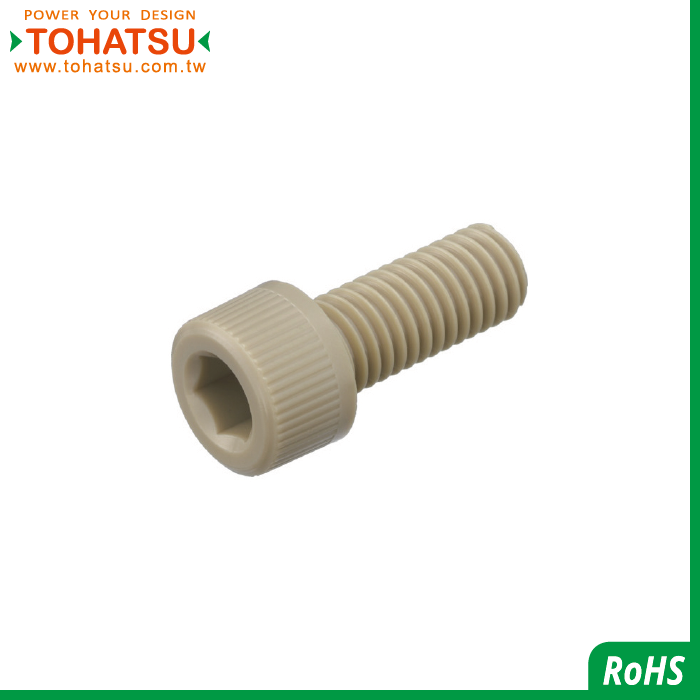

Hexagon socket head plastic screw (Material: PEEK)
BPEEK-CBM

Characteristics of socket head cap screws
1. It is not easy to slip teeth.
2. It can be countersunk in use, that is, the whole nut is sunk into the workpiece, which can keep the surface of the workpiece smooth and beautiful.
3. More assembly occasions, especially narrow occasions, so it is very convenient to assemble and maintain, and it is also convenient to debug.
4. The tools we usually use are adjustable wrenches, screwdrivers and open-end wrenches, etc., and special wrenches must be used to remove the socket head cap screws. Therefore, it is not easy for ordinary people to disassemble, which is also a benefit.

Engineering plastic screws
Features such as insulation, non-magnetic, corrosion resistance, never rust Strength, impact resistance comparable to metal
1. Medical equipment industry (insulation, non-magnetic, environmental protection, anti-interference, make medical equipment safer to use)
2. Wind power industry (isolation and insulation of chassis circuit PCB board)
3. Aerospace industry (insulation and anti-interference on electronic equipment)
4. Office equipment industry (never rusted, beautiful and practical)
5. Petrochemical industry (high temperature resistance, chemical resistance, corrosion resistance, prolong the service life of equipment)
6. Electronics industry (insulation, anti-interference, light weight)
7. Communication industry (insulation, non-magnetic, safety)
8. Shipbuilding industry (acid resistance, alkali resistance, corrosion resistance, prolong service life)

Specification

塑膠螺絲材質特性表/Plastic material characteristics table
  PC PPS RENY PEEK PVC PI PP PTFE PFA PVDF 陶瓷/CERAMIC PA POM
輕量性
吸水性
耐煮沸水性
耐低溫
強韌性
抗蠕變性
抗老化
難燃性
抗電性
耐磨耗
高強度
耐藥性
耐熱性
品號
Product No.
型號
Model number
材質+處理
Material + Surface Treatment
螺紋規格
Thread Specifications
螺桿長
Screw length
牙長
Effective thread length
RU-208-1684 BPEEK-CBM3X6 PEEK M3X0.5 6 全牙
RU-208-1685 BPEEK-CBM3X8 PEEK M3X0.5 8 全牙
RU-208-1678 BPEEK-CBM3X10 PEEK M3X0.5 10 全牙
RU-208-1680 BPEEK-CBM3X12 PEEK M3X0.5 12 全牙
RU-208-1681 BPEEK-CBM3X15 PEEK M3X0.5 15 全牙
RU-208-1682 BPEEK-CBM3X20 PEEK M3X0.5 20 全牙
RU-208-1683 BPEEK-CBM3X25 PEEK M3X0.5 25 全牙
RU-208-1693 BPEEK-CBM4X6 PEEK M4X0.7 6 全牙
RU-208-1694 BPEEK-CBM4X8 PEEK M4X0.7 8 全牙
RU-208-1686 BPEEK-CBM4X10 PEEK M4X0.7 10 全牙
RU-208-1688 BPEEK-CBM4X12 PEEK M4X0.7 12 全牙
RU-208-1689 BPEEK-CBM4X15 PEEK M4X0.7 15 全牙
RU-208-1690 BPEEK-CBM4X20 PEEK M4X0.7 20 全牙
RU-208-1691 BPEEK-CBM4X25 PEEK M4X0.7 25 全牙
RU-208-1692 BPEEK-CBM4X30 PEEK M4X0.7 30 全牙
RU-208-1702 BPEEK-CBM5X6 PEEK M5X0.8 6 全牙
RU-208-1703 BPEEK-CBM5X8 PEEK M5X0.8 8 全牙
RU-208-1696 BPEEK-CBM5X10 PEEK M5X0.8 10 全牙
RU-208-1697 BPEEK-CBM5X12 PEEK M5X0.8 12 全牙
RU-208-1698 BPEEK-CBM5X15 PEEK M5X0.8 15 全牙
RU-208-1699 BPEEK-CBM5X20 PEEK M5X0.8 20 全牙
RU-208-1700 BPEEK-CBM5X25 PEEK M5X0.8 25 全牙
RU-208-1701 BPEEK-CBM5X30 PEEK M5X0.8 30 全牙
RU-208-1704 BPEEK-CBM6X10 PEEK M6X1 10 全牙
RU-208-1705 BPEEK-CBM6X12 PEEK M6X1 12 全牙
RU-208-1706 BPEEK-CBM6X15 PEEK M6X1 15 全牙
RU-208-1707 BPEEK-CBM6X20 PEEK M6X1 20 全牙
RU-208-1708 BPEEK-CBM6X25 PEEK M6X1 25 全牙
RU-208-1710 BPEEK-CBM6X30 PEEK M6X1 30 全牙
