Products

Flat Washers

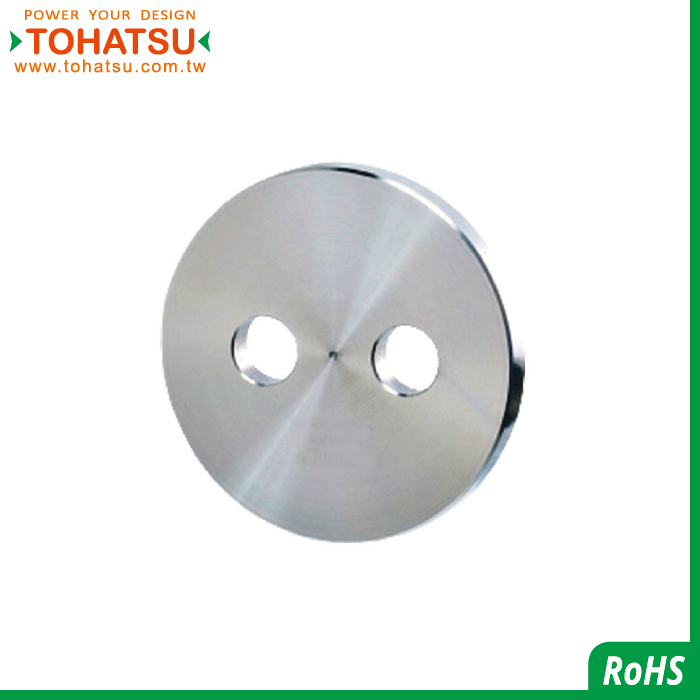

Bearing washer (Material: S45C / SUS304)
EPB

Washers, also known as washers, are parts that are usually used to pad between the connector and the nut.
The main purpose is as a spacer to protect the surface of the connected parts from being scratched by the nut, to disperse the pressure of the nut on the connected parts, and to reduce the detachment caused by vibration.
Common materials: steel, stainless steel, copper, aluminum, iron, plastic, titanium
Main application industries: industry, mold, equipment...etc
Washers can be divided into three types
1. Flat washer
Function: Prevent the surface damage of the connector, increase the contact area and disperse the pressure.
2. Spring washer
Function: used to flexibly prevent loosening and vibration.
3. Anti-loose washers
Function: To prevent the loosening of the connector and prevent the rotation of the screw.

A gasket is a mechanical seal between two objects, usually used to prevent pressure, corrosion, and pipeline leakage between the two objects.
Since the machined surface cannot be perfect, the irregularities can be filled with spacers.
Main use: sealing of pipe flanges, valves, pumps, pressure vessels, etc. some professional equipment
The main application industries are petrochemical, refining, electric power, metallurgy, manufacturing and other industries

This product is made according to DIN6340

Specification

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
材質+處理
Material + Treatment
D
d
P
t
軸徑範圍
Shaft diameter range
軸承座型號
Bearing Type
EPB2504 S45C+染黑 25 4.5 10 3 16~19 UC203、UC204
EPB2804 S45C+染黑 28 4.5 10 3 16~19 UC203、UC204
EPB3004 S45C+染黑 30 4.5 12 4 20~22 UC205
EPB3204 S45C+染黑 32 4.5 12 4 20~22 UC205
EPB3504 S45C+染黑 35 4.5 12 5 23~25 UC206
EPB3806 S45C+染黑 38 6.6 18 5 26~30 UC206
EPB4006 S45C+染黑 40 6.6 18 5 26~30 UC206
EPB4506 S45C+染黑 45 6.6 18 5 31~35 UC207
EPB5008 S45C+染黑 50 9 20 5 36~40 UC208
EPB5508 S45C+染黑 55 9 20 6 41~45 UC209
EPB6010 S45C+染黑 60 11 27 6 46~50 UC210
EPB6510 S45C+染黑 65 11 27 6 46~50 UC211
EPB2504S SUS304 25 4.5 10 3 16~19 UC203、UC204
EPB2804S SUS304 28 4.5 10 3 16~19 UC203、UC204
EPB3004S SUS304 30 4.5 12 4 20~22 UC205
EPB3204S SUS304 32 4.5 12 4 20~22 UC205
EPB3504S SUS304 35 4.5 12 5 23~25 UC206
EPB3806S SUS304 38 6.6 18 5 26~30 UC206
EPB4006S SUS304 40 6.6 18 5 26~30 UC206
EPB4506S SUS304 45 6.6 18 5 31~35 UC207
EPB5008S SUS304 50 9 20 5 36~40 UC208
