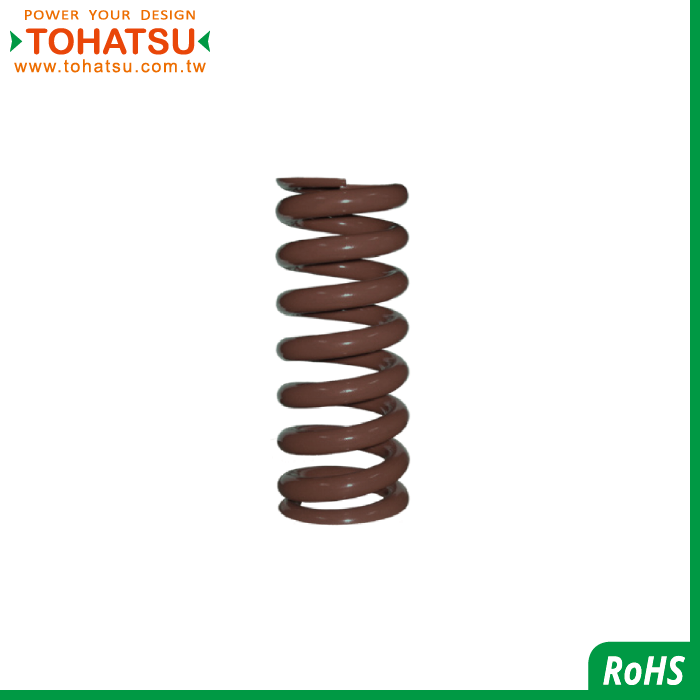

MEGA COLL(Round Wire Spring)
Round wire spring (MEGA COLL (super high load) compression 20%)
MCV

MEGA COLL strong round wire spring specially developed for special machinery and equipment
MEGA COLL is an ultra-heavy load spring, small in size, space-saving, easy to install, and improves efficiency

Load calculation method
Load (N) = Spring constant (N/mm) × compression (mm)

Specification

品號
Product No.
材質
Materials
外徑
Outer diameter
內徑
Inner diameter
線徑
Wire Diameter
自由長
Free length
定數(N/mm)
Spring constant
參考荷重(N)
Reference load
MCV-72-090 SWOSC-V 72 38.5 16.75 90 1090 19620
MCV-72-100 SWOSC-V 72 38.5 16.75 100 980.7 19614
MCV-72-125 SWOSC-V 72 38.5 16.75 125 784.5 19612.5
MCV-72-150 SWOSC-V 72 38.5 16.75 150 654.1 19623
MCV-72-175 SWOSC-V 72 38.5 16.75 175 560 19600
MCV-72-200 SWOSC-V 72 38.5 16.75 200 490.3 19612
MCV-72-250 SWOSC-V 72 38.5 16.75 250 392.3 19615
MCV-72-300 SWOSC-V 72 38.5 16.75 300 326.6 19596
