High Precision Washers

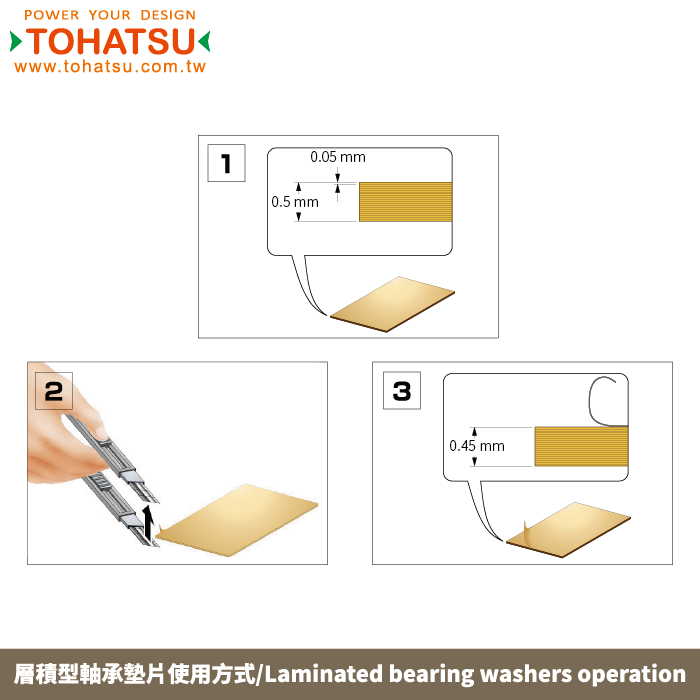

Laminated bearing spacer (customized size)
FRLS FRLB FRLA

Precision washers are mainly used to adjust the height of the motor and the bearing seat, and to adjust the clearance between the inner and outer rings of the bearing and the shaft end.
The main types are washers/shims plus laminated precision washers/shims (aerospace compliant) for easily changing plate thickness, and base washers for motor mounts and pillow blocks.
Washers/washers that can be used both when tightening screws/bolts and securing spring seats, as well as end plates to prevent gears and bearings from falling off or mechanical parts often used in automation.

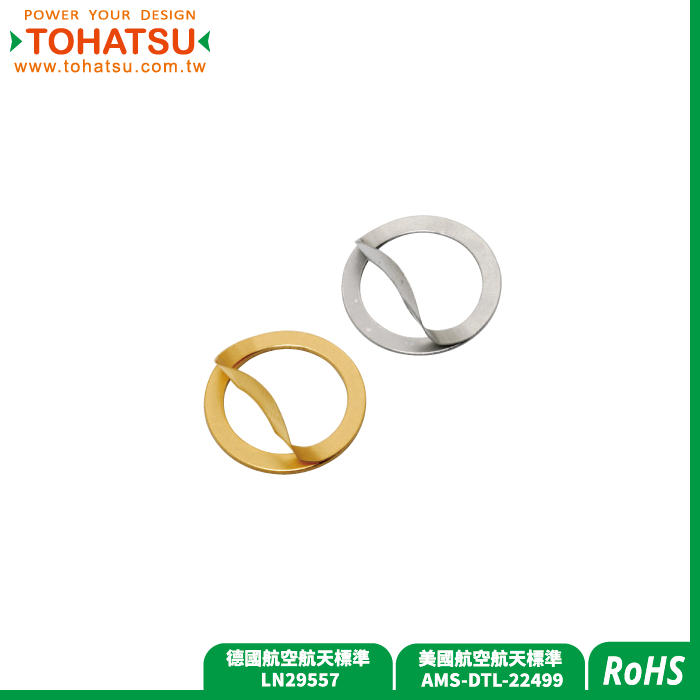

Precision washers/gaskets are available in various materials such as iron, hardened steel, stainless steel, brass (brass), copper, aluminum, etc.

Features
1. Provide a variety of gaskets with precise plate thickness tolerances
2. Various specifications and customized size services

application

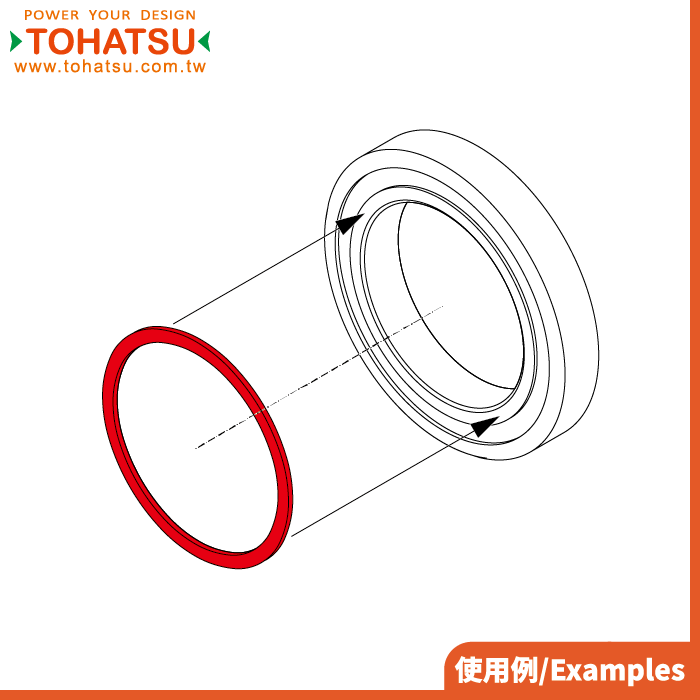

Bearing inner and outer wheels, molds, reducers, various mechanical bases

meets the
American Aerospace Standard AMS-DTL-22499
Complies with German Aerospace Standard LN29557 (except aluminium)

Specification

品號組成/Product number composition
TYPE -

內徑/inside diameter

-

外徑/Outside diameter

-

厚度/Thickness

FRLS 5 10 0.5
尺寸圖/Dimensional drawing
製作條件/Production conditions
厚度/Thickness=0.5 厚度/Thickness=1
K ≧ 2 K ≧ 3
材質選擇/Material selection
Type 材質
FRLS SUS304
FRLB 黃銅(Brass)
FRLA 鋁(Aluminium)
厚度公差表/Thickness tolerance table
0.5 0.1
+0.1/-0 +0.1/-0



外觀範圍/Appearance range
指定尺寸/Specify size : 0.1
內徑/inside diameter 外徑/Outside diameter
3~(D-2xK) 7~100
外觀尺寸公差/Appearance Dimension Tolerance
內徑範圍●外徑範圍
inside diameter range and outer diameter range
內徑公差
Inside diameter tolerance
外徑公差
Outer diameter tolerance
3~50 +0.5/-0 +0/-0.5
51~200 +0.7/-0 +0/-0.7
