Die spring

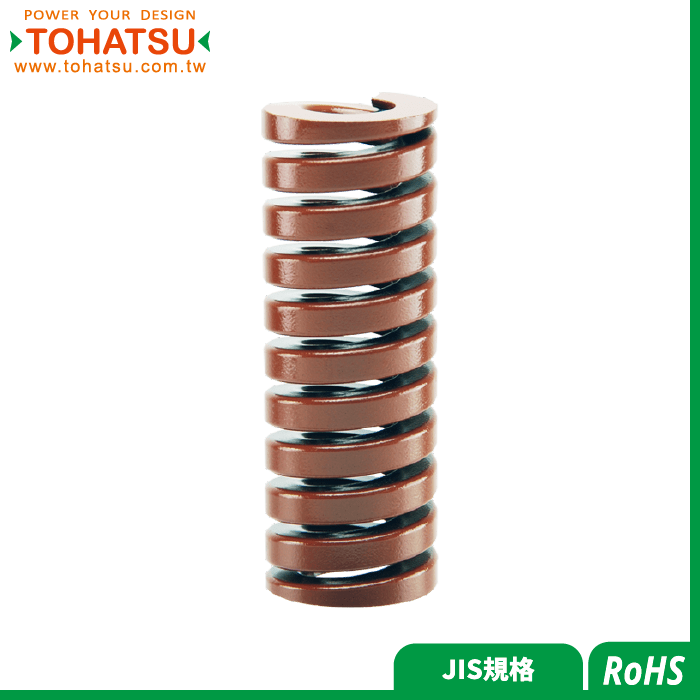

Die spring (JIS standard. Compression 20%)
TB

Die spring (flat wire spring) is suitable for occasions with high load and very limited space, mainly used in stamping dies, various die-casting dies, injection dies and mechanical equipment with precise structure

How to use the mold spring
1. First calculate the maximum working stroke required by the spring.
2. When assembling the spring, it must be preloaded to make it have internal pressure, otherwise the life of the spring will be reduced. Generally, the preload is 3~5% of the total length.
3. The spring must have bolts and outer guide bushes.
4. When the punch is re-ground, the spring will increase the compression at this time. Please grind the gasket at the same time to keep the original compression.

Points for attention in the use of springs
1. The specifications of each spring are different, do not easily replace each other when using
2. The guide length of the spring refers to the length of the central axis of the spring and the depth of the installation hole. If the guide length is insufficient, the spring will bend or tilt under the force, which will lead to the early failure of the spring. When the spring stroke is guaranteed, the guide length is greater than 1/2 of the free length
4. The upper and lower mounting surfaces of the spring must be parallel to each other. Do not cut the spring or process the connector so that it cannot be flush with the end surface.
5. The old and new springs cannot be mixed together, which will cause the spring to bear uneven load.
6. Prevent iron filings, scraps and other debris from being mixed in the spring

Load calculation method
Load (N) = Spring constant (N/mm) × compression (mm)

Specification

產品資訊\Product Information
材質
Materials
顏色(電著塗裝)
Color (Electric painting)
最大壓縮量(%)
Maximum Compression (%)
使用標準次數(萬)
Standard times of use (X10,000)
荷重(N)
Load (N)
使用溫度(ºC)
Operating temperature (ºC)
MIN MAX
SWOSC-V
咖啡色
Brown
16 100 147.1 970.9 -30~150
18
50
166.7 1098.3
20 30 186.3 1216
尺寸圖\Dimensions
外觀公差\Appearance Tolerances
外徑(D)
內徑(d)
自由長(L)
荷重(N)
Load (N)
旋向
Winding
>60mm <70mm >33mm <38.5mm >50mm <55mm
+0/-0.7 +0/-1 +0.7/+0.1 -0/+1 ±0.5 ±1% ±10%
Right hand screw
規格表\Specification Table
品號
Product No.
外徑
Outer diameter
內徑
Inner diameter
自由長
Free length
定數(N/mm)
Spring constant
TB08-010 8 4 10 166.11
TB08-015 8 4 15 110.74
TB08-020 8 4 20 83.06
TB08-025 8 4 25 66.44
TB08-030 8 4 30 55.37
TB08-035 8 4 35 47.46
TB08-040 8 4 40 41.53
TB08-045 8 4 45 36.91
TB08-050 8 4 50 33.22
TB08-055 8 4 55 30.2
TB08-060 8 4 60 27.69
TB08-065 8 4 65 25.56
TB08-070 8 4 70 23.73
TB08-075 8 4 75 22.15
TB08-080 8 4 80 20.76
TB10-020 10 5 20 111.67
TB10-025 10 5 25 89.33
TB10-030 10 5 30 74.44
TB10-035 10 5 35 63.81
TB10-040 10 5 40 55.83
TB10-045 10 5 45 49.63
TB10-050 10 5 50 44.67
TB10-055 10 5 55 40.61
TB10-060 10 5 60 37.22
TB10-065 10 5 65 34.36
TB10-070 10 5 70 31.9
TB10-075 10 5 75 29.78
TB10-080 10 5 80 27.92
TB10-090 10 5 90 24.81
TB12-020 12 6 20 141.67
TB12-025 12 6 25 113.33
TB12-030 12 6 30 94.44
TB12-035 12 6 35 80.95
TB12-040 12 6 40 70.83
TB12-045 12 6 45 62.96
TB12-050 12 6 50 56.67
TB12-055 12 6 55 51.52
TB12-060 12 6 60 47.22
TB12-065 12 6 65 43.59
TB12-070 12 6 70 40.48
TB12-075 12 6 75 37.78
TB12-080 12 6 80 35.42
TB12-090 12 6 90 31.48
TB14-025 14 7 25 148.22
TB14-030 14 7 30 123.52
TB14-035 14 7 35 105.87
TB14-040 14 7 40 92.64
TB14-045 14 7 45 82.35
TB14-050 14 7 50 74.11
TB14-055 14 7 55 67.37
TB14-060 14 7 60 61.76
TB14-065 14 7 65 57.01
TB14-070 14 7 70 52.94
TB14-075 14 7 75 49.41
TB14-080 14 7 80 46.32
TB14-090 14 7 90 41.17
TB14-100 14 7 100 37.06
TB16-025 16 8 25 196.22
TB16-030 16 8 30 163.52
TB16-035 16 8 35 140.16
TB16-040 16 8 40 122.64
TB16-045 16 8 45 109.01
TB16-050 16 8 50 98.11
TB16-055 16 8 55 89.19
TB16-060 16 8 60 81.76
TB16-065 16 8 65 75.47
TB16-070 16 8 70 70.08
TB16-075 16 8 75 65.41
TB16-080 16 8 80 61.32
TB16-090 16 8 90 54.51
TB16-100 16 8 100 49.06
TB16-125 16 8 125 39.24
TB18-025 18 9 25 246.22
TB18-030 18 9 30 205.19
TB18-035 18 9 35 175.87
TB18-040 18 9 40 153.89
TB18-045 18 9 45 136.79
TB18-050 18 9 50 123.11
TB18-055 18 9 55 111.92
TB18-060 18 9 60 102.59
TB18-065 18 9 65 94.7
TB18-070 18 9 70 87.94
TB18-075 18 9 75 82.07
TB18-080 18 9 80 76.94
TB18-090 18 9 90 68.4
TB18-100 18 9 100 61.56
TB18-125 18 9 125 49.24
TB20-025 20 10 25 313.78
TB20-030 20 10 30 261.48
TB20-035 20 10 35 224.13
TB20-040 20 10 40 196.11
TB20-045 20 10 45 174.32
TB20-050 20 10 50 156.89
TB20-055 20 10 55 142.63
TB20-060 20 10 60 130.74
TB20-065 20 10 65 120.68
TB20-070 20 10 70 112.06
TB20-075 20 10 75 104.59
TB20-080 20 10 80 98.06
TB20-090 20 10 90 87.16
TB20-100 20 10 100 78.44
TB20-125 20 10 125 62.76
TB20-150 20 10 150 52.3
TB22-025 22 11 25 383.56
TB22-030 22 11 30 319.63
TB22-035 22 11 35 273.97
TB22-040 22 11 40 239.72
TB22-045 22 11 45 213.09
TB22-050 22 11 50 191.78
TB22-055 22 11 55 174.34
TB22-060 22 11 60 159.81
TB22-065 22 11 65 147.52
TB22-070 22 11 70 136.98
TB22-075 22 11 75 127.85
TB22-080 22 11 80 119.86
TB22-090 22 11 90 106.54
TB22-100 22 11 100 95.89
TB22-125 22 11 125 76.71
TB22-150 22 11 150 63.93
TB25-025 25 12.5 25 482.22
TB25-030 25 12.5 30 401.85
TB25-035 25 12.5 35 344.44
TB25-040 25 12.5 40 301.39
TB25-045 25 12.5 45 267.9
TB25-050 25 12.5 50 241.11
TB25-055 25 12.5 55 219.19
TB25-060 25 12.5 60 200.93
TB25-065 25 12.5 65 185.47
TB25-070 25 12.5 70 172.22
TB25-075 25 12.5 75 160.74
TB25-080 25 12.5 80 150.69
TB25-090 25 12.5 90 133.95
TB25-100 25 12.5 100 120.56
TB25-125 25 12.5 125 96.44
TB25-150 25 12.5 150 80.37
TB25-175 25 12.5 175 68.89
TB25-200 25 12.5 200 60.28
TB27-025 27 13.5 25 568.89
TB27-030 27 13.5 30 474.07
TB27-035 27 13.5 35 406.35
TB27-040 27 13.5 40 355.56
TB27-045 27 13.5 45 316.05
TB27-050 27 13.5 50 284.44
TB27-055 27 13.5 55 258.59
TB27-060 27 13.5 60 237.04
TB27-065 27 13.5 65 218.8
TB27-070 27 13.5 70 203.17
TB27-075 27 13.5 75 189.63
TB27-080 27 13.5 80 177.78
TB27-090 27 13.5 90 158.02
TB27-100 27 13.5 100 142.22
TB27-125 27 13.5 125 113.78
TB27-150 27 13.5 150 94.81
TB27-175 27 13.5 175 81.27
TB27-200 27 13.5 200 71.11
TB30-025 30 15 25 706.67
TB30-030 30 15 30 588.89
TB30-035 30 15 35 504.76
TB30-040 30 15 40 441.67
TB30-045 30 15 45 392.59
TB30-050 30 15 50 353.33
TB30-055 30 15 55 321.21
TB30-060 30 15 60 294.44
TB30-065 30 15 65 271.79
TB30-070 30 15 70 252.38
TB30-075 30 15 75 235.56
TB30-080 30 15 80 220.83
TB30-090 30 15 90 196.3
TB30-100 30 15 100 176.67
TB30-125 30 15 125 141.33
TB30-150 30 15 150 117.78
TB30-175 30 15 175 100.95
TB30-200 30 15 200 88.33
TB35-040 35 17.5 40 600
TB35-045 35 17.5 45 533.33
TB35-050 35 17.5 50 480
TB35-055 35 17.5 55 436.36
TB35-060 35 17.5 60 400
TB35-065 35 17.5 65 369.23
TB35-070 35 17.5 70 342.86
TB35-075 35 17.5 75 320
TB35-080 35 17.5 80 300
TB35-090 35 17.5 90 266.67
TB35-100 35 17.5 100 240
TB35-125 35 17.5 125 192
TB35-150 35 17.5 150 160
TB35-175 35 17.5 175 137.14
TB35-200 35 17.5 200 120
TB40-040 40 20 40 784.72
TB40-045 40 20 45 697.53
TB40-050 40 20 50 627.78
TB40-055 40 20 55 570.71
TB40-060 40 20 60 523.15
TB40-065 40 20 65 482.91
TB40-070 40 20 70 448.41
TB40-075 40 20 75 418.52
TB40-080 40 20 80 392.36
TB40-090 40 20 90 348.77
TB40-100 40 20 100 313.89
TB40-125 40 20 125 251.11
TB40-150 40 20 150 209.26
TB40-175 40 20 175 179.37
TB40-200 40 20 200 156.94
TB40-225 40 20 225 139.51
TB40-250 40 20 250 125.56
TB40-275 40 20 275 114.14
TB40-300 40 20 300 104.63
TB50-050 50 25 50 981.11
TB50-055 50 25 55 891.92
TB50-060 50 25 60 817.59
TB50-065 50 25 65 754.7
TB50-070 50 25 70 700.79
TB50-075 50 25 75 654.07
TB50-080 50 25 80 613.19
TB50-090 50 25 90 545.06
TB50-100 50 25 100 490.56
TB50-125 50 25 125 392.44
TB50-150 50 25 150 327.04
TB50-175 50 25 175 280.32
TB50-200 50 25 200 245.28
TB50-225 50 25 225 218.02
TB50-250 50 25 250 196.22
TB50-275 50 25 275 178.38
TB50-300 50 25 300 163.52
TB50-350 50 25 350 140.16
TB60-060 60 30 60 1176.85
TB60-070 60 30 70 1008.73
TB60-080 60 30 80 882.64
TB60-090 60 30 90 784.57
TB60-100 60 30 100 706.11
TB60-125 60 30 125 564.89
TB60-150 60 30 150 470.74
TB60-175 60 30 175 403.49
TB60-200 60 30 200 353.06
TB60-225 60 30 225 313.83
TB60-250 60 30 250 282.44
TB60-275 60 30 275 256.77
TB60-300 60 30 300 235.37
TB60-350 60 30 350 201.75
TB70-070 70 38.5 70 1285.71
TB70-080 70 38.5 80 1125
TB70-090 70 38.5 90 1000
TB70-100 70 38.5 100 900
TB70-125 70 38.5 125 720
TB70-150 70 38.5 150 600
TB70-175 70 38.5 175 514.29
TB70-200 70 38.5 200 450
TB70-225 70 38.5 225 400
TB70-250 70 38.5 250 360
TB70-275 70 38.5 275 327.27
TB70-300 70 38.5 300 300
TB70-350 70 38.5 350 257.14
