MEGA COLL(Round Wire Spring)

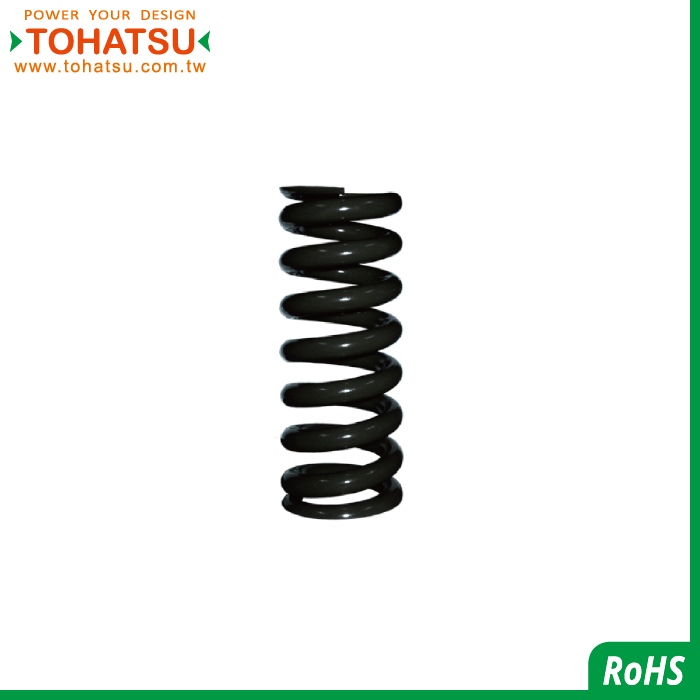

Round Wire Spring (MEGA COLL (Super High Load) Compression 30%)
MCZ3

MEGA COLL strong round wire spring specially developed for special machinery and equipment
MEGA COLL is an ultra-heavy load spring, small in size, space-saving, easy to install, and improves efficiency

Load calculation method
Load (N) = Spring constant (N/mm) × compression (mm)

Specification

品號
Product No.
材質
Materials
外徑
Outer diameter
內徑
Inner diameter
線徑
Wire Diameter
自由長
Free length
定數(N/mm)
Spring constant
參考荷重(N)
Reference load
MCZ3-97-150 SWOSC-V 97 56.5 20.25 150 654.1 29434.5
MCZ3-97-175 SWOSC-V 97 56.5 20.25 175 560 29400
MCZ3-97-200 SWOSC-V 97 56.5 20.25 200 490.3 29418
MCZ3-97-250 SWOSC-V 97 56.5 20.25 250 392.3 29422.5
MCZ3-97-300 SWOSC-V 97 56.5 20.25 300 326.6 29394
