Captive Washer Screws

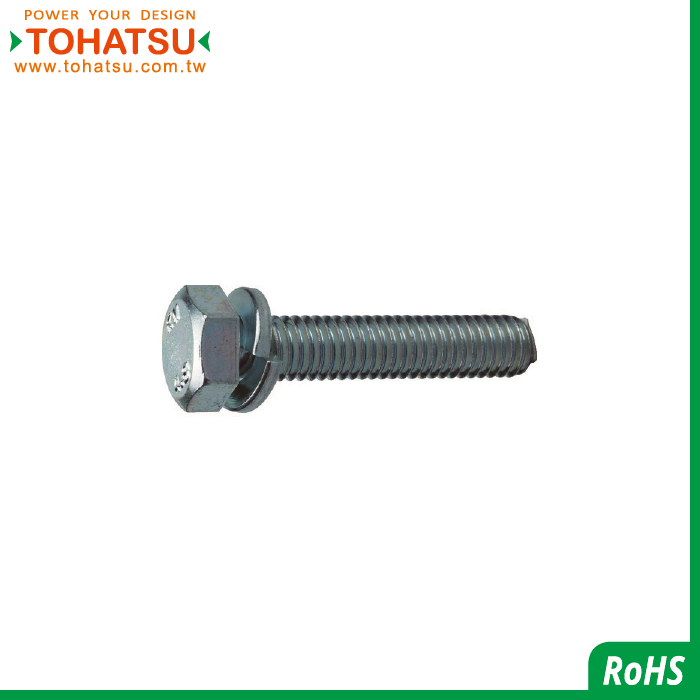

Combination screws (external hexagon bolts)
Y103
Combination screws are all equipped with corresponding washers. The advantage is that it saves time, makes the production line easy to operate, and improves work efficiency. It can be used in bridge engineering, high-rise civil buildings, tower and mast structures, and hoisting machinery.
Specification
線上詢價(Online inquiry):請點擊
| 品號 Product No. |
型號 Model number |
材質+處理 Material + Surface Treatment |
螺紋規格 Thread Specifications |
螺桿長 Screw length |
牙長 Effective thread length |
| RU-115-7312 | Y103-0508 | 鋼+鍍層 | M5X0.8 | 8 | 全牙 |
| RU-115-7313 | Y103-0510 | 鋼+鍍層 | M5X0.8 | 10 | 全牙 |
| RU-115-7314 | Y103-0512 | 鋼+鍍層 | M5X0.8 | 12 | 全牙 |
| RU-115-7315 | Y103-0520 | 鋼+鍍層 | M5X0.8 | 15 | 全牙 |
| RU-115-7316 | Y103-0608 | 鋼+鍍層 | M6X1 | 8 | 全牙 |
| RU-115-7317 | Y103-0610 | 鋼+鍍層 | M6X1 | 10 | 全牙 |
| RU-115-7318 | Y103-0612 | 鋼+鍍層 | M6X1 | 12 | 全牙 |
| RU-115-7319 | Y103-0614 | 鋼+鍍層 | M6X1 | 14 | 全牙 |
| RU-115-7320 | Y103-0615 | 鋼+鍍層 | M6X1 | 15 | 全牙 |
| RU-115-7321 | Y103-0616 | 鋼+鍍層 | M6X1 | 16 | 全牙 |
| RU-115-7322 | Y103-0620 | 鋼+鍍層 | M6X1 | 20 | 全牙 |
| RU-115-7323 | Y103-0622 | 鋼+鍍層 | M6X1 | 22 | 全牙 |
| RU-115-7324 | Y103-0625 | 鋼+鍍層 | M6X1 | 25 | 全牙 |
| RU-115-7325 | Y103-0630 | 鋼+鍍層 | M6X1 | 30 | 全牙 |
| RU-115-7326 | Y103-0635 | 鋼+鍍層 | M6X1 | 35 | 全牙 |
| RU-115-7327 | Y103-0650 | 鋼+鍍層 | M6X1 | 50 | 全牙 |
| RU-115-7328 | Y103-0812 | 鋼+鍍層 | M8X1.25 | 12 | 全牙 |
| RU-115-7330 | Y103-0814 | 鋼+鍍層 | M8X1.25 | 14 | 全牙 |
| RU-115-7331 | Y103-0815 | 鋼+鍍層 | M8X1.25 | 15 | 全牙 |
| RU-115-7332 | Y103-0816 | 鋼+鍍層 | M8X1.25 | 16 | 全牙 |
| RU-115-7333 | Y103-0818 | 鋼+鍍層 | M8X1.25 | 18 | 全牙 |
| RU-115-7334 | Y103-0820 | 鋼+鍍層 | M8X1.25 | 20 | 全牙 |
| RU-115-7335 | Y103-0825 | 鋼+鍍層 | M8X1.25 | 25 | 全牙 |
| RU-115-7336 | Y103-0830 | 鋼+鍍層 | M8X1.25 | 30 | 全牙 |
| RU-115-7338 | Y103-0840 | 鋼+鍍層 | M8X1.25 | 40 | 全牙 |
| RU-115-7339 | Y103-0850 | 鋼+鍍層 | M8X1.25 | 50 | 全牙 |
| RU-115-7340 | Y103-1014 | 鋼+鍍層 | M10X1.5 | 14 | 全牙 |
| RU-115-7341 | Y103-1016 | 鋼+鍍層 | M10X1.5 | 16 | 全牙 |
| RU-115-7342 | Y103-1018 | 鋼+鍍層 | M10X1.5 | 18 | 全牙 |
| RU-115-7343 | Y103-1020 | 鋼+鍍層 | M10X1.5 | 20 | 全牙 |
| RU-115-7344 | Y103-1022 | 鋼+鍍層 | M10X1.5 | 22 | 全牙 |
| RU-115-7346 | Y103-1025 | 鋼+鍍層 | M10X1.5 | 25 | 全牙 |
| RU-115-7347 | Y103-1030 | 鋼+鍍層 | M10X1.5 | 30 | 全牙 |
| RU-115-7348 | Y103-1035 | 鋼+鍍層 | M10X1.5 | 35 | 全牙 |
| RU-115-7349 | Y103-1040 | 鋼+鍍層 | M10X1.5 | 40 | 全牙 |
| RU-115-7350 | Y103-1045 | 鋼+鍍層 | M10X1.5 | 45 | 全牙 |
| RU-115-7351 | Y103-1050 | 鋼+鍍層 | M10X1.5 | 50 | 全牙 |
| RU-115-7352 | Y103-1060 | 鋼+鍍層 | M10X1.5 | 60 | 全牙 |
| RU-115-7354 | Y103-1220 | 鋼+鍍層 | M12X1.75 | 20 | 全牙 |
| RU-115-7355 | Y103-1225 | 鋼+鍍層 | M12X1.75 | 25 | 全牙 |
| RU-115-7356 | Y103-1230 | 鋼+鍍層 | M12X1.75 | 30 | 全牙 |
| RU-115-7357 | Y103-1235 | 鋼+鍍層 | M12X1.75 | 35 | 全牙 |
| RU-115-7358 | Y103-1250 | 鋼+鍍層 | M12X1.75 | 50 | 全牙 |
