Products

Nitrogen Aas Spring

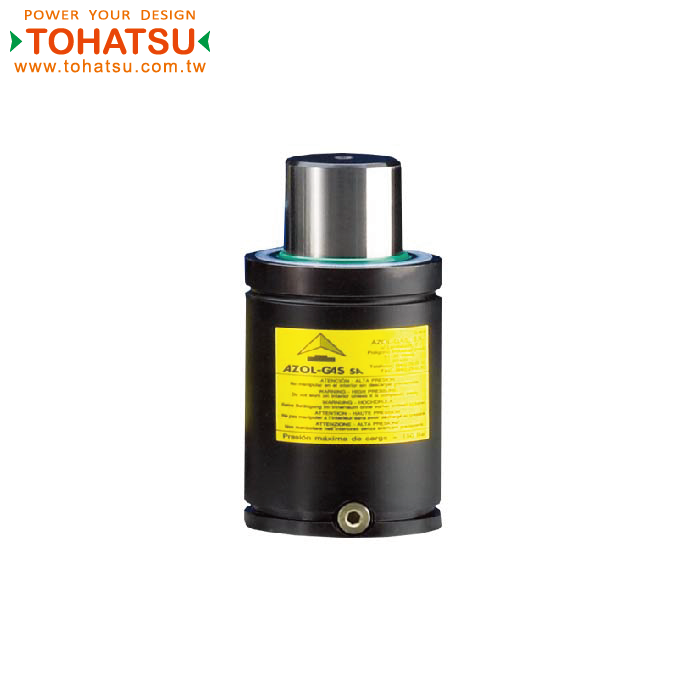

Gas spring (compact height type (initial load 1500kgf))
CW

Nitrogen gas spring for mold is a new type of elastic component with high pressure nitrogen as working medium.
It is small in size, large in elasticity, long in stroke, stable in operation, precise in manufacturing, long in service life, flat in elastic curve, does not require preloading, simplifies mold design and manufacture, facilitates mold installation and adjustment, extends mold life, and ensures product quality. stability

Precautions for using nitrogen gas springs
1. Prohibit the use of other gases
2. The maximum stroke must be 90% of the total stroke
3. Do not exceed the maximum speed during use
4. It is forbidden to exceed the set pressure range
5. It is forbidden to exceed the set temperature range

Compact height type: the overall height is the smallest, the force is unchanged, suitable for use in molds with narrow space height

Specification

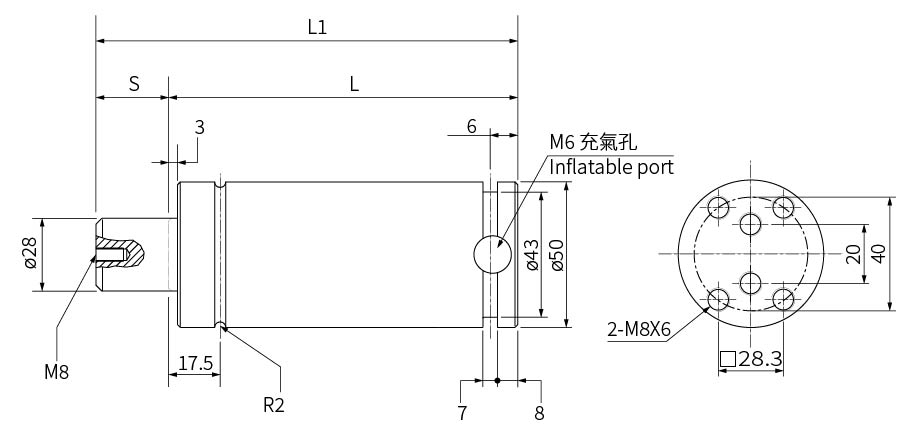

尺寸圖\Dimensions
規格表\Specification Table
品號
Product No.
壓力範圍(bar)
Pressure Range
溫度範圍(℃)
Temperature Range
最大速度(m/s)
Maximum speed
S
L
L1
重量(kg)
Weight
CW-1500X13 20~150 0~80 1.6 13 70 57 0.99
CW-1500X16 20~150 0~80 1.6 16 76 60 1.03
CW-1500X19 20~150 0~80 1.6 19 82 63 1.07
CW-1500X25 20~150 0~80 1.6 25 94 69 1.15
CW-1500X32 20~150 0~80 1.6 32 108 76 1.24
CW-1500X38 20~150 0~80 1.6 38 120 82 1.31
CW-1500X50 20~150 0~80 1.6 50 144 94 1.47
CW-1500X63 20~150 0~80 1.6 63 170 107 1.63
CW-1500X75 20~150 0~80 1.6 75 194 119 1.79
CW-1500X80 20~150 0~80 1.6 80 204 124 1.85
CW-1500X100 20~150 0~80 1.6 100 244 144 2.11
CW-1500X125 20~150 0~80 1.6 125 294 169 2.43
