Products

dowel pin

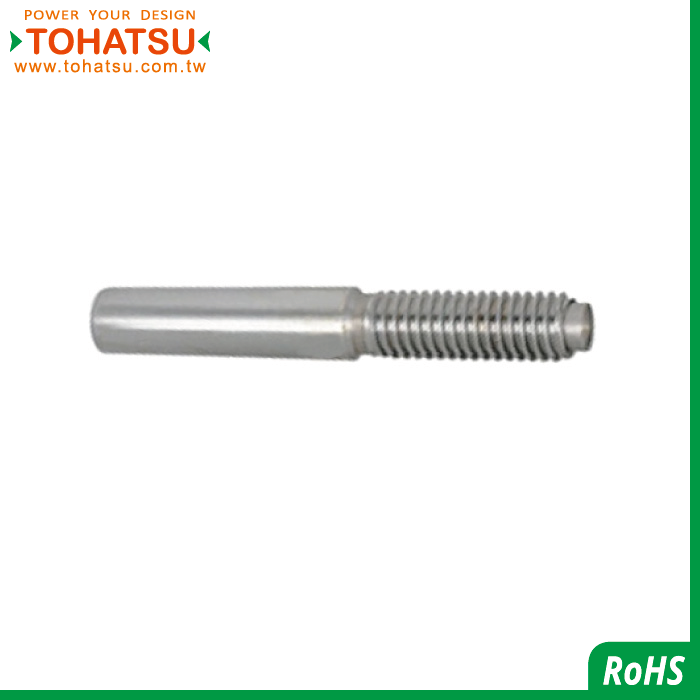

taper pin(Material: SUJ2)(Taper: 1/50)
OTP

The dowel pin, also known as the positioning pin, is mainly used between the screws fastened between the two parts to ensure the accuracy of the position.
The basic form is cylindrical pin (straight pin) and tapered pin (oblique pin), the difference is as follows
Cylindrical pins (direct sales): 1. Can be pre-processed. 2. Precise positioning. 3. Shear resistance.
It is fixed in the reamed hole with a slight interference, which can bear a small load. In order to ensure the positioning accuracy and the tightness of the connection, it is not suitable for frequent disassembly.
Mainly used for positioning, also used as coupling pin and safety pin.
Tapered pin (oblique pin): 1. Usually matched. 2. Disassemble frequently. 3. Quick positioning.
It has a taper of 1:50, good self-locking, high positioning accuracy, easy installation, and has little impact on positioning accuracy after repeated assembly and disassembly.
Mainly used for positioning, can also be used as a coupling pin, the pin hole needs to be hinged.

Specification

品號
Product No.
材質+處理
Material + Treatment
公稱直徑
nominal diameter
長度
length
螺紋
thread
螺牙長
thread length
OTP-S45C-Q-4-25 S45C 4 25 M4X0.7 11.5
OTP-S45C-Q-4-30 S45C 4 30 M4X0.7 11.5
OTP-S45C-Q-4-35 S45C 4 35 M4X0.7 11.5
OTP-S45C-Q-4-40 S45C 4 40 M4X0.7 11.5
OTP-S45C-Q-4-45 S45C 4 45 M4X0.7 11.5
OTP-S45C-Q-4-50 S45C 4 50 M4X0.7 11.5
OTP-S45C-Q-4-55 S45C 4 55 M4X0.7 11.5
OTP-S45C-Q-4-60 S45C 4 60 M4X0.7 11.5
OTP-S45C-Q-4-65 S45C 4 65 M4X0.7 11.5
OTP-S45C-Q-4-70 S45C 4 70 M4X0.7 11.5
OTP-S45C-Q-4-75 S45C 4 75 M4X0.7 11.5
OTP-S45C-Q-4-80 S45C 4 80 M4X0.7 11.5
OTP-S45C-Q-4-85 S45C 4 85 M4X0.7 11.5
OTP-S45C-Q-5-30 S45C 5 30 M5X0.8 11.5
OTP-S45C-Q-5-35 S45C 5 35 M5X0.8 11.5
OTP-S45C-Q-5-40 S45C 5 40 M5X0.8 11.5
OTP-S45C-Q-5-45 S45C 5 45 M5X0.8 11.5
OTP-S45C-Q-5-50 S45C 5 50 M5X0.8 11.5
OTP-S45C-Q-5-55 S45C 5 55 M5X0.8 11.5
OTP-S45C-Q-5-60 S45C 5 60 M5X0.8 11.5
OTP-S45C-Q-5-65 S45C 5 65 M5X0.8 11.5
OTP-S45C-Q-5-70 S45C 5 70 M5X0.8 11.5
OTP-S45C-Q-5-75 S45C 5 75 M5X0.8 11.5
OTP-S45C-Q-5-80 S45C 5 80 M5X0.8 11.5
OTP-S45C-Q-5-85 S45C 5 85 M5X0.8 11.5
OTP-S45C-Q-5-90 S45C 5 90 M5X0.8 11.5
OTP-S45C-Q-5-95 S45C 5 95 M5X0.8 11.5
OTP-S45C-Q-5-100 S45C 5 100 M5X0.8 11.5
OTP-S45C-Q-6-30 S45C 6 30 M6X1 15
OTP-S45C-Q-6-35 S45C 6 35 M6X1 15
OTP-S45C-Q-6-40 S45C 6 40 M6X1 15
OTP-S45C-Q-6-45 S45C 6 45 M6X1 15
OTP-S45C-Q-6-50 S45C 6 50 M6X1 15
OTP-S45C-Q-6-55 S45C 6 55 M6X1 15
OTP-S45C-Q-6-60 S45C 6 60 M6X1 15
OTP-S45C-Q-6-65 S45C 6 65 M6X1 15
OTP-S45C-Q-6-70 S45C 6 70 M6X1 15
OTP-S45C-Q-6-75 S45C 6 75 M6X1 15
OTP-S45C-Q-6-80 S45C 6 80 M6X1 15
OTP-S45C-Q-6-85 S45C 6 85 M6X1 15
OTP-S45C-Q-6-90 S45C 6 90 M6X1 15
OTP-S45C-Q-6-95 S45C 6 95 M6X1 15
OTP-S45C-Q-6-100 S45C 6 100 M6X1 15
OTP-S45C-Q-6-105 S45C 6 105 M6X1 15
OTP-S45C-Q-6-110 S45C 6 110 M6X1 15
OTP-S45C-Q-6-115 S45C 6 115 M6X1 15
OTP-S45C-Q-6-120 S45C 6 120 M6X1 15
OTP-S45C-Q-8-35 S45C 8 35 M8X1.25 15
OTP-S45C-Q-8-40 S45C 8 40 M8X1.25 15
OTP-S45C-Q-8-45 S45C 8 45 M8X1.25 15
OTP-S45C-Q-8-50 S45C 8 50 M8X1.25 15
OTP-S45C-Q-8-55 S45C 8 55 M8X1.25 15
OTP-S45C-Q-8-60 S45C 8 60 M8X1.25 15
OTP-S45C-Q-8-65 S45C 8 65 M8X1.25 15
OTP-S45C-Q-8-70 S45C 8 70 M8X1.25 15
OTP-S45C-Q-8-75 S45C 8 75 M8X1.25 15
OTP-S45C-Q-8-80 S45C 8 80 M8X1.25 15
OTP-S45C-Q-8-85 S45C 8 85 M8X1.25 15
OTP-S45C-Q-8-90 S45C 8 90 M8X1.25 15
OTP-S45C-Q-8-95 S45C 8 95 M8X1.25 15
OTP-S45C-Q-8-100 S45C 8 100 M8X1.25 15
OTP-S45C-Q-8-105 S45C 8 105 M8X1.25 15
OTP-S45C-Q-8-110 S45C 8 110 M8X1.25 15
OTP-S45C-Q-8-115 S45C 8 115 M8X1.25 15
OTP-S45C-Q-8-120 S45C 8 120 M8X1.25 15
OTP-S45C-Q-8-125 S45C 8 125 M8X1.25 15
OTP-S45C-Q-8-130 S45C 8 130 M8X1.25 15
OTP-S45C-Q-8-140 S45C 8 140 M8X1.25 15
OTP-S45C-Q-10-50 S45C 10 50 M10X1.5 20
OTP-S45C-Q-10-55 S45C 10 55 M10X1.5 20
OTP-S45C-Q-10-60 S45C 10 60 M10X1.5 20
OTP-S45C-Q-10-65 S45C 10 65 M10X1.5 20
OTP-S45C-Q-10-70 S45C 10 70 M10X1.5 20
OTP-S45C-Q-10-75 S45C 10 75 M10X1.5 20
OTP-S45C-Q-10-80 S45C 10 80 M10X1.5 20
OTP-S45C-Q-10-85 S45C 10 85 M10X1.5 20
OTP-S45C-Q-10-90 S45C 10 90 M10X1.5 20
OTP-S45C-Q-10-95 S45C 10 95 M10X1.5 20
OTP-S45C-Q-10-100 S45C 10 100 M10X1.5 20
OTP-S45C-Q-10-105 S45C 10 105 M10X1.5 20
OTP-S45C-Q-10-110 S45C 10 110 M10X1.5 20
OTP-S45C-Q-10-115 S45C 10 115 M10X1.5 20
OTP-S45C-Q-10-120 S45C 10 120 M10X1.5 20
OTP-S45C-Q-10-125 S45C 10 125 M10X1.5 20
OTP-S45C-Q-10-130 S45C 10 130 M10X1.5 20
OTP-S45C-Q-10-140 S45C 10 140 M10X1.5 20
OTP-S45C-Q-10-150 S45C 10 150 M10X1.5 20
OTP-S45C-Q-12-50 S45C 12 50 M12X1.75 22
OTP-S45C-Q-12-55 S45C 12 55 M12X1.75 22
OTP-S45C-Q-12-60 S45C 12 60 M12X1.75 22
OTP-S45C-Q-12-65 S45C 12 65 M12X1.75 22
OTP-S45C-Q-12-70 S45C 12 70 M12X1.75 22
OTP-S45C-Q-12-75 S45C 12 75 M12X1.75 22
OTP-S45C-Q-12-80 S45C 12 80 M12X1.75 22
OTP-S45C-Q-12-85 S45C 12 85 M12X1.75 22
OTP-S45C-Q-12-90 S45C 12 90 M12X1.75 22
OTP-S45C-Q-12-95 S45C 12 95 M12X1.75 22
OTP-S45C-Q-12-100 S45C 12 100 M12X1.75 22
OTP-S45C-Q-12-105 S45C 12 105 M12X1.75 22
OTP-S45C-Q-12-110 S45C 12 110 M12X1.75 22
OTP-S45C-Q-12-115 S45C 12 115 M12X1.75 22
OTP-S45C-Q-12-120 S45C 12 120 M12X1.75 22
OTP-S45C-Q-12-125 S45C 12 125 M12X1.75 22
OTP-S45C-Q-12-130 S45C 12 130 M12X1.75 22
OTP-S45C-Q-12-140 S45C 12 140 M12X1.75 22
OTP-S45C-Q-12-150 S45C 12 150 M12X1.75 22
OTP-S45C-Q-13-50 S45C 13 50 M12X1.75 22
OTP-S45C-Q-13-55 S45C 13 55 M12X1.75 22
OTP-S45C-Q-13-60 S45C 13 60 M12X1.75 22
OTP-S45C-Q-13-65 S45C 13 65 M12X1.75 22
OTP-S45C-Q-13-70 S45C 13 70 M12X1.75 22
OTP-S45C-Q-13-75 S45C 13 75 M12X1.75 22
OTP-S45C-Q-13-80 S45C 13 80 M12X1.75 22
OTP-S45C-Q-13-85 S45C 13 85 M12X1.75 22
OTP-S45C-Q-13-90 S45C 13 90 M12X1.75 22
OTP-S45C-Q-13-95 S45C 13 95 M12X1.75 22
OTP-S45C-Q-13-100 S45C 13 100 M12X1.75 22
OTP-S45C-Q-13-105 S45C 13 105 M12X1.75 22
OTP-S45C-Q-13-110 S45C 13 110 M12X1.75 22
OTP-S45C-Q-13-115 S45C 13 115 M12X1.75 22
OTP-S45C-Q-13-120 S45C 13 120 M12X1.75 22
OTP-S45C-Q-13-125 S45C 13 125 M12X1.75 22
OTP-S45C-Q-13-130 S45C 13 130 M12X1.75 22
OTP-S45C-Q-13-140 S45C 13 140 M12X1.75 22
OTP-S45C-Q-13-150 S45C 13 150 M12X1.75 22
OTP-S45C-Q-13-160 S45C 13 160 M12X1.75 22
OTP-S45C-Q-16-50 S45C 16 50 M16X2 26
OTP-S45C-Q-16-60 S45C 16 60 M16X2 26
OTP-S45C-Q-16-65 S45C 16 65 M16X2 26
OTP-S45C-Q-16-70 S45C 16 70 M16X2 26
OTP-S45C-Q-16-75 S45C 16 75 M16X2 26
OTP-S45C-Q-16-80 S45C 16 80 M16X2 26
OTP-S45C-Q-16-85 S45C 16 85 M16X2 26
OTP-S45C-Q-16-90 S45C 16 90 M16X2 26
OTP-S45C-Q-16-95 S45C 16 95 M16X2 26
OTP-S45C-Q-16-100 S45C 16 100 M16X2 26
OTP-S45C-Q-16-105 S45C 16 105 M16X2 26
OTP-S45C-Q-16-110 S45C 16 110 M16X2 26
OTP-S45C-Q-16-115 S45C 16 115 M16X2 26
OTP-S45C-Q-16-120 S45C 16 120 M16X2 26
OTP-S45C-Q-16-125 S45C 16 125 M16X2 26
OTP-S45C-Q-16-130 S45C 16 130 M16X2 26
OTP-S45C-Q-16-140 S45C 16 140 M16X2 26
OTP-S45C-Q-16-150 S45C 16 150 M16X2 26
OTP-S45C-Q-16-160 S45C 16 160 M16X2 26
OTP-SUS303-5-35 SUS303 5 35 M5X0.8 11.5
OTP-SUS303-5-40 SUS303 5 40 M5X0.8 11.5
OTP-SUS303-5-45 SUS303 5 45 M5X0.8 11.5
OTP-SUS303-5-50 SUS303 5 50 M5X0.8 11.5
OTP-SUS303-6-40 SUS303 6 40 M6X1 15
OTP-SUS303-6-45 SUS303 6 45 M6X1 15
OTP-SUS303-6-50 SUS303 6 50 M6X1 15
OTP-SUS303-6-55 SUS303 6 55 M6X1 15
OTP-SUS303-6-60 SUS303 6 60 M6X1 15
OTP-SUS303-6-65 SUS303 6 65 M6X1 15
OTP-SUS303-6-70 SUS303 6 70 M6X1 15
OTP-SUS303-8-50 SUS303 8 50 M8X1.25 15
OTP-SUS303-8-55 SUS303 8 55 M8X1.25 15
OTP-SUS303-8-60 SUS303 8 60 M8X1.25 15
OTP-SUS303-8-65 SUS303 8 65 M8X1.25 15
OTP-SUS303-8-70 SUS303 8 70 M8X1.25 15
OTP-SUS303-8-75 SUS303 8 75 M8X1.25 15
OTP-SUS303-8-80 SUS303 8 80 M8X1.25 15
OTP-SUS303-10-60 SUS303 10 60 M10X1.5 20
OTP-SUS303-10-65 SUS303 10 65 M10X1.5 20
OTP-SUS303-10-70 SUS303 10 70 M10X1.5 20
OTP-SUS303-10-75 SUS303 10 75 M10X1.5 20
OTP-SUS303-10-80 SUS303 10 80 M10X1.5 20
OTP-SUS303-10-85 SUS303 10 85 M10X1.5 20
OTP-SUS303-10-90 SUS303 10 90 M10X1.5 20
OTP-SUS303-10-95 SUS303 10 95 M10X1.5 20
OTP-SUS303-10-100 SUS303 10 100 M10X1.5 20
OTP-SUS303-12-70 SUS303 12 70 M12X1.75 22
OTP-SUS303-12-80 SUS303 12 80 M12X1.75 22
OTP-SUS303-12-90 SUS303 12 90 M12X1.75 22
OTP-SUS303-12-100 SUS303 12 100 M12X1.75 22
OTP-SUS303-13-70 SUS303 12 70 M12X1.75 22
OTP-SUS303-13-80 SUS303 12 80 M12X1.75 22
OTP-SUS303-13-90 SUS303 12 90 M12X1.75 22
OTP-SUS303-13-100 SUS303 12 100 M12X1.75 22
