Bliss Yih is a professional manufacturer of flexible conduit connectors. Our flexible conduit connectors are also UL/cULus listed, and offer best performance with our flexible conduits such as UL listed A2066 and CSA listed A2167. We offer various flexible conduit connectors, such as straight conduit connectors, 45 degree conduit connectors and 90 degree conduit connectors. Also, we are capable of producing conduit connectors with different thread types. Type B2161 is with PG thread. For the thread types, please see Appendix 5: Thread Data.
Features:
* Malleable iron, ductile cast iron or steel, zinc plated.
* For liquid-tight flexible metal conduit.
* PG thread
* Finished with O-ring and insulating liner
* No locknut attached (optional).
* 45 angle type N2161 and 90 angle type L2161 are available.
* According to NEC 350.6, LFMC and associated fittings shall be
listed. Applicable to to hazardous (classified) location Class 1
Division 2; Class 2 Division 1, 2; Class 3 Division 1, 2. UL liquid
tight flexible metal conduit: A2066, R2066, S2066.
* IP67.
* RoHS & REACH compliant.

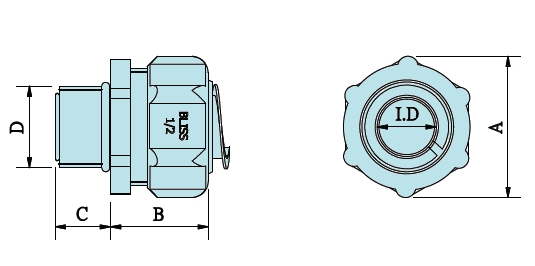

| Catalog Number | Trade Size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Thread | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|
| B21610309** | 3/8" | 11.5 | 29.0 | 22.5 | 8.5 | 15.2 | PG9 | 50 |
| B21610311 | 3/8" | 11.5 | 29.0 | 22.5 | 10.5 | 18.6 | PG11 | 50 |
| B21610313 | 3/8" | 11.5 | 29.0 | 22.5 | 10.5 | 20.4 | PG13.5 | 50 |
| B21610316 | 3/8" | 11.5 | 29.0 | 22.5 | 10.5 | 22.5 | PG16 | 50 |
| B21610413 | 1/2" | 14.5 | 34.5 | 22.5 | 14.5 | 20.4 | PG13.5 | 50 |
| B21610621 | 3/4" | 19.5 | 41.5 | 28.0 | 16.0 | 28.3 | PG21 | 50 |
| B21611029 | 1" | 25.0 | 46.0 | 31.5 | 19.5 | 37.0 | PG29 | 50 |
| B21611236 | 1-1/4" | 33.5 | 55.5 | 34.0 | 20.5 | 47.0 | PG36 | 25 |
| B21611442 | 1-1/2" | 38.5 | 63.2 | 36.5 | 24.5 | 54.0 | PG42 | 20 |
| B21612048 | 2" | 49.5 | 76.0 | 44.5 | 27.0 | 59.3 | PG48 | 10 |
** No insulating liner
Certificate:
- UL/cULus certification - file no. E136208
Applicable Standards:
1. UL 514B
2. CSA Standard: C22.2 No.18.3
3. ANSI/NEMA FB1
4. NMX-J-017-ANCE
5. ANSI/NFPA 70 NEC Article 350
