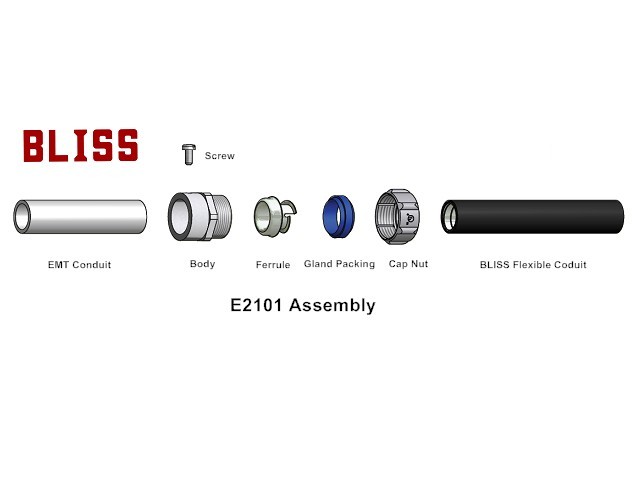

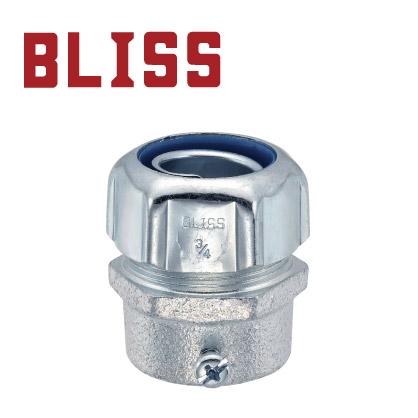

Flexible Conduit Connector type E2101 is threadless and can be used to connect EMT conduits as well as electrical flexible conduits.
Flexible conduit connectors developed by Bliss Yih are manufactured under strict standards to delivery durable, accurate fitting.
Features:
* Malleable iron or ductile cast iron, zinc plated.
* Die cast zinc E2102 is available.
* For connecting EMT with flexible conduit.
* Threadless, furnished with screw.
* 2-1/2" ~ 4" same as P2101. P2101 is connecting RSC/PVC
conduit with flexible conduit.
* IP67
* RoHS & REACH compliant.
* UL listed connectors B2101, L2101, N2101, B2141, L2141,
N2141, B2161, L2161, N2161, B2182 (die cast zinc) are
available.
* Applicable for liquid-tight flexible conduits type like:
A2066 Flexible Conduit - Liquid Tight Flexible Steel Conduit (UL
Listed)
A2067 Flexible Conduit - Liquid Tight Flexible Steel Conduit (EF
Type)
A2017 Flexible Conduit - Liquid Tight Flexible Steel Conduit (BS
Type)
A2116 EMI/RFI Shielding Conduit - Liquid-tight EMI Shielding
Flexible Steel Conduit
A7207 Flexible Conduit - Liquid Tight EMI Shielding Flexible Steel
Conduit
A7217 Flexible Conduit - Liquid Tight EMI Shielding Flexible Steel
Conduit
A2167 Flexible Conduit - Liquid Tight Flexible Steel Conduit (CSA
Listed)-RoHS

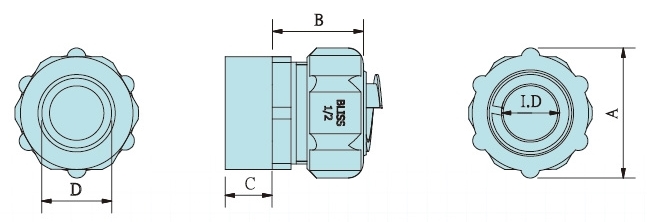

| Catalog number | Trade size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
EMT CNS 2606-C4060 JIS C8305 |
Packing (pcs) |
|---|---|---|---|---|---|---|---|---|
| E21010400 | 1/2" | 14.5 | 34.5 | 22.5 | 12.5 | 19.6 | E19 | 50 |
| E21010600 | 3/4" | 19.5 | 41.5 | 28.0 | 14.0 | 25.9 | E25 | 50 |
| E21011000 | 1" | 25.0 | 46.0 | 31.5 | 17.5 | 32.3 | E31 | 25 |
| E21011200 | 1-1/4" | 33.5 | 55.5 | 34.0 | 18.0 | 38.6 | E39 | 25 |
| E21011400 | 1-1/2" | 38.5 | 63.2 | 36.5 | 21.5 | 51.3 | E51 | 20 |
| E21012000 | 2" | 49.5 | 76.0 | 44.5 | 24.0 | 64.0 | E63 | 10 |
* 2-1/2"~4": same as P2101
