EMI/RFI Shielding Conduits
Liquid-tight EMI Shielding Flexible Steel Conduit
A7217

Bliss EMI Flexible Shielding Conduit can effectively eliminate the emission of electromagnetic waves from cables that may harm the human body, or influence the accuracy of high-tech instruments.

Established in 1978, Bliss Yih Enterprise Co., Ltd. always dedicate ourselves in offering high quality Flexible shielding conduit and connectors and developing new product series. Flexible shielding conduit developed by Bliss Yih is manufactured under strict standards so as to deliver highly durable and reliable quality.


Features:

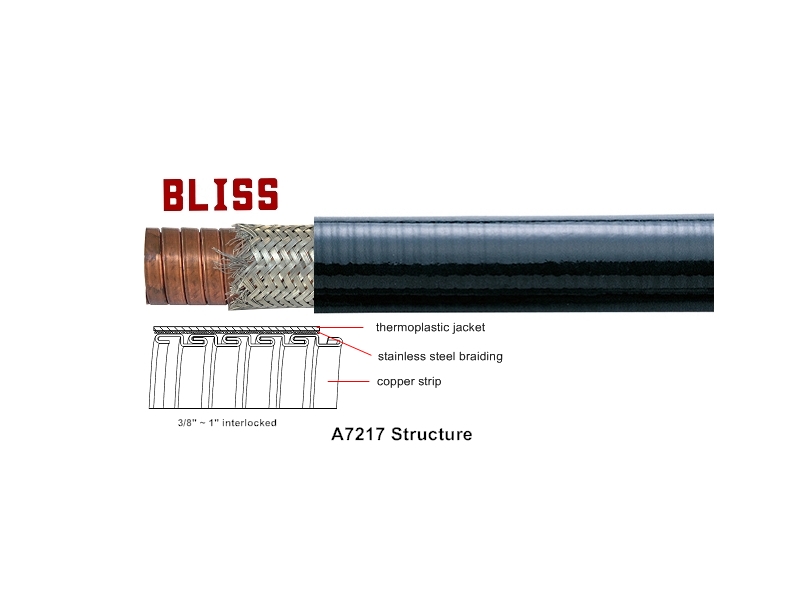

* Copper strip interlocked core + tinned copper braiding over 90%
+ RoHS and UL 360 compliant PVC jacket.
* Liquid-tight, oil-resistant, flame retardant, and sunlight
resistant.
* Temperature range: -20°C ~ +70°C.
* Standard color: Black.
* IP67
* RoHS & REACH compliant

Specification

A7217

Catalog number Trade size
(inch)
Inner diameter min.
(mm)
Inner diameter max.
(mm)
Outside diameter min.
(mm)
Outside diameter max.
(mm)
Min bending radius
(mm)
Packing length
(m)
A72170300 3/8" 12.29 12.80 17.50 18.00 50.50 30
A72170400 1/2" 15.80 16.31 20.80 21.30 82.50 30
A72170600 3/4" 20.83 21.34 26.20 26.70 108.00 30
A72171000 1" 26.44 27.08 32.80 33.40 165.00 20
