Liquid Tight Connectors
Female Combination Coupling - PF Thread
C2102
Features:
* Die cast zinc (zinc alloy), zinc plated.
* Female threaded.
* For connecting male threaded rigid steel conduit (RSC) with
flexible conduit.
* IP67.
* RoHS & REACH compliant
* Male threaded connectors B2102, L2102, B2142 are available.

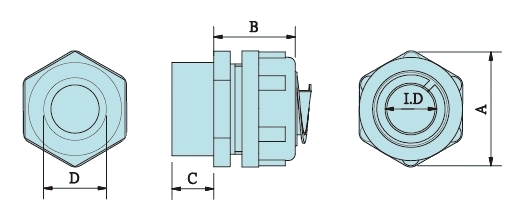

Specification
| Catalog number | Trade size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
Thread | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|
| C21020400 | 1/2" | 14.5 | 35.0 | 22.0 | 10.5 | 18.6 | PF 1/2 | 50 |
| C21020600 | 3/4" | 19.5 | 42.0 | 27.0 | 14.0 | 24.1 | PF 3/4 | 50 |
| C21021000 | 1" | 25.0 | 48.5 | 31.0 | 15.5 | 30.3 | PF 1 | 25 |
| C21021200 | 1-1/4" | 33.5 | 59.0 | 34.5 | 18.0 | 39.0 | PF 1-1/4 | 25 |
| C21021400 | 1-1/2" | 38.5 | 68.0 | 36.5 | 21.5 | 44.8 | PF 1-1/2 | 20 |
| C21022000 | 2" | 49.5 | 82.5 | 43.0 | 24.0 | 56.7 | PF 2 | 10 |
| C21022400 | 2-1/2" | 60.0 | 93,5 | 36.0 | 24.0 | 72.2 | PF 2-1/2 | 1 |
| C21023000 | 3" | 75.0 | 110.0 | 36.0 | 24.0 | 84.9 | PF 3 | 1 |
| C21024000 | 4" | 97.0 | 137.0 | 36.0 | 24.0 | 110.1 | PF 4 | 1 |
