Products

Wire Harness Series for Automobile
PE Flexible Conduit
E2017

Light weight, portable, easy assembly, improved efficiency, reduced costs.

Features:
* Material: Polyethylene (PE)
* Light, flexible, fast installation.
* Temperature range -30°C ~ +80°C

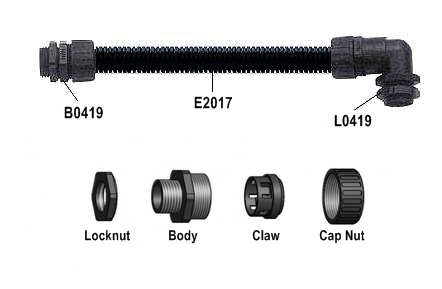

* Best performance with fittng B0419/L0419
* B419 Nylon Straight Connector - PF Thread
* L0419 Nylon 90° Connector - PF Thread
* IP65

Specification

E2017

Catalog number Trade size
(inch)
Inner diameter
(mm)
Outside diameter
(mm)
Packing length
(m)
E20170300 3/8"" 13.8 17.8 100
E20170400 1/2" 17.2 22.0 100
E20170600 3/4" 21.2 26.0 100
E20171000 1" 28.7 34.0 50
E20171200 1-1/4" 36.0 42.0 50
E20171400 1-1/2" 40.0 48.0 50
E20172000 2" 52.0 60.0 50
