Liquid Tight Connectors
Liquid Tight Straight Connector - PF Thread
B2102

Features:
* Die cast zinc (zinc alloy), zinc plated.
* Straight
* PF thread

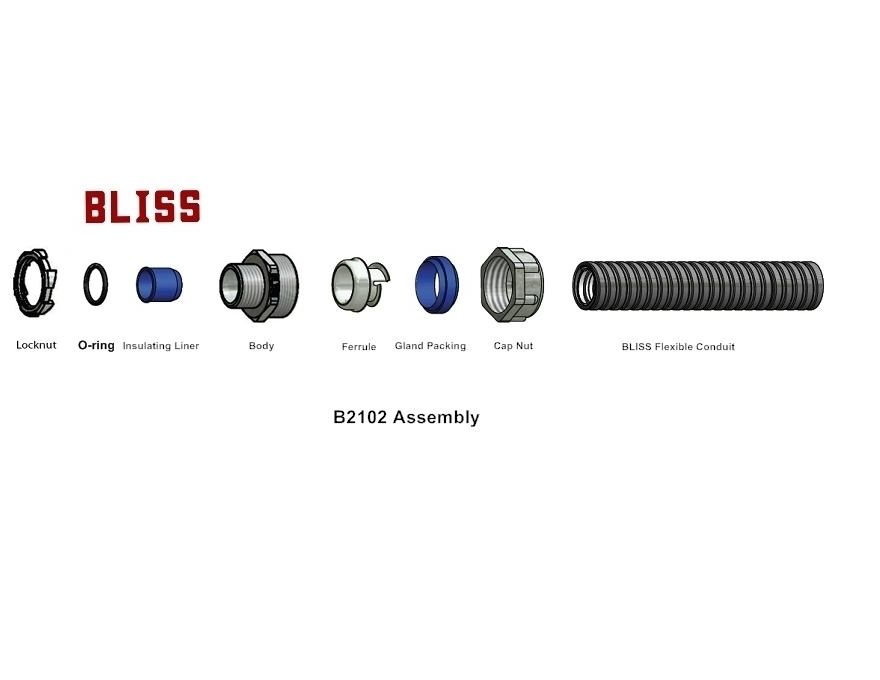

* Furnished with locknut, O-ring and insulating liner.
* 90 angle type L2102 is available.
* For liquid-tight flexible metal conduit such as A2017, A2067, etc.
* IP67.
* RoHS & REACH compliant

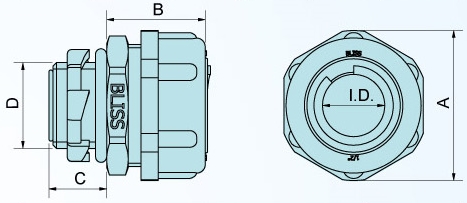

Specification

B2102

Catalog number Nominal size I.D.
(mm) 		 A
(mm) 		 B
(mm) 		 C
(mm) 		 D
(mm) 		 Thread Packing (pcs)
B21020300 3/8" 11.5 29.0 22.0 12.0 21.0 PF 1/2 100
B21020400 1/2" 14.5 35.0 22.0 12.0 21.0 PF 1/2 100
B21020600 3/4" 19.5 42.0 27.0 16.0 26.4 PF 3/4 50
B21021000 1" 25.0 48.5 31.0 18.0 33.3 PF 1 50
B21021200 1-1/4" 33.5 59.0 34.5 20.5 41.9 PF 1-1/4 25
B21021400 1-1/2" 38.5 68.0 36.5 24.5 47.8 PF 1-1/2 20
B21022000 2" 49.5 82.5 43.0 27.0 59.6 PF 2 10
B21022400 2-1/2" 60.0 93.5 36.0 27.0 75.2 PF 2-1/2 1
B21023000 3" 75.0 110.0 36.0 27.0   87.9 PF 3 1
B21024000 4"  97.0 137.0   36.0  27.0 113.0  PF 4 1
