Liquid Tight Connectors

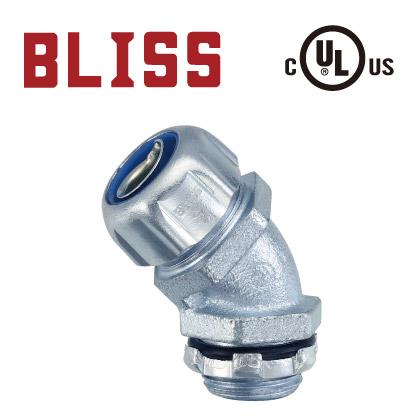

UL/cUL Liquid Tight 45° Conduit Connector - NPT Thread
N2101

Bliss Yih is a professional manufacturer of flexible conduit connectors. Our flexible conduit connectors are also UL/cUL listed, and offer best performance with our flexible conduits such as UL listed A2066 and CSA listed A2167. We offer various flexible conduit connectors, such as straight conduit connectors, 45 degree conduit connectors and 90 degree conduit connectors. Also, we are capable of producing


Features:
* Malleable iron or ductile cast iron, zinc plated.
* For liquid-tight flexible metal conduit.
* NPT thread

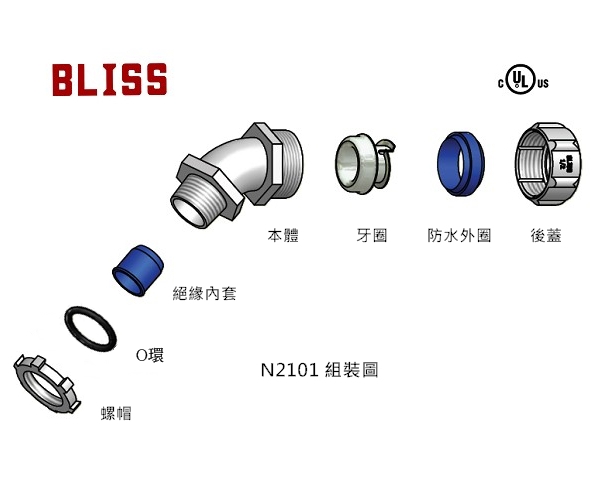

* Furnished with locknut, O-ring and insulating liner.
* Straight type B2101 and 90 degree type L2101 are available.
* According to NEC 350.6, LMFC and associated fittings shall be
listed. Applicable to hazardous (classified) location Class 1 *
Division 2; Class Division 1,2; Class 3 Division 1, 2.
* IP67. UL liquid tight flexible metal conduit type A2066, R2066,
S2066.
* RoHS & REACH compliant.

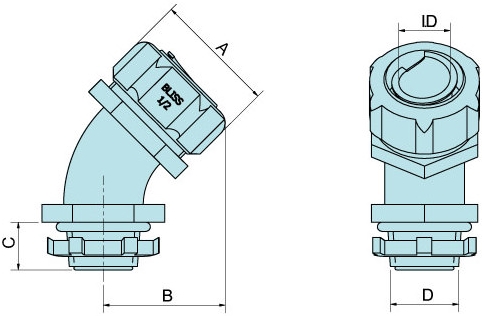

Specification

N2101

Catalog number Trade Size (inch) I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
H
(mm)
D
(mm)
Thread Packing (pcs)
N21010300 3/8 11.0 29.0  31.0  14.5   42.5 21.0 NPT 1/2 50
N21010400 1/2 14.5 33.5 32.0  14.5 44.5 21.0 NPT 1/2 50
N21010600 3/4 19.5 41.5  37.0 16.0  54.0  26.4  NPT 3/4 25
N21011000 1 25.0  46.0 46.5  19.5  60.5  33.3  NPT 1 25
N21011200 1-1/4 33.5  55.5  53.0 20.5 76.5  41.9  NPT 1-1/4 15
N21011400 1-1/2 38.0  63.2  60.0  24.5  80.5 47.8 NPT 1-1/2 10
N21012000 2 49.5 76.0  75.0  27.0  93.0  59.6  NPT 2 5
N21012400 2-1/2 60.0  99.2  105.0 36.5  153.5  72.7  NPT 2-1/2 1
N21013000 3 75.0 118.3 120.0 38.0  180.0 88.6 NPT 3 1
N21014000 4 97.5 145.3  140.0  41.0  229.0  114.0 NPT 4 1
Certificate:
  • UL/cUL certification - file no. E136208
    Applicable Standards:
    ‧UL 514B
    ‧CSA Standard:C22.2 No.18
    ‧ANSI/NEMA FB1
    ‧NMX-J-017-ANCE
    ‧ANSI/NFPA 70 NEC Article 350
