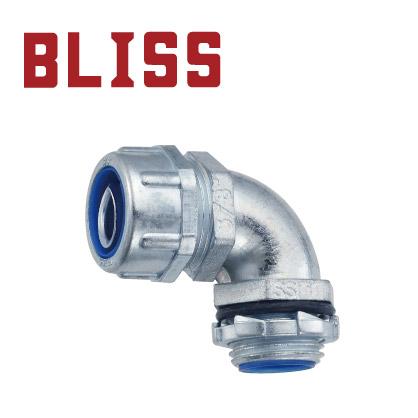

Liquid Tight 90° Connector - PF Thread

Liquid Tight 90° Connector - PF Thread-L2102

Liquid Tight Connectors

Liquid Tight 90° Connector - PF Thread

L2102

Features:
* Die cast zinc (zinc alloy), zinc plated.
* 90° connector
* PF thread

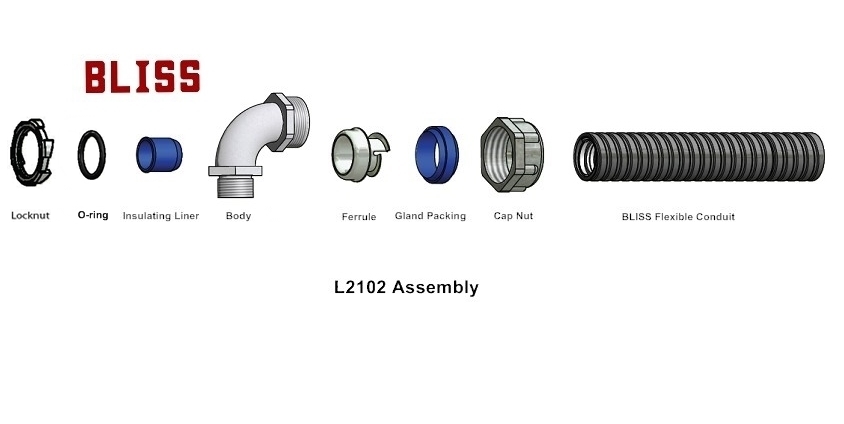

* Furnished with locknut, O-ring and insulating liner.
* Straight type B2102 is available.
* For liquid-tight flexible metal conduit such as A2017, A2067, etc.
* IP67.
* RoHS & REACH compliant.

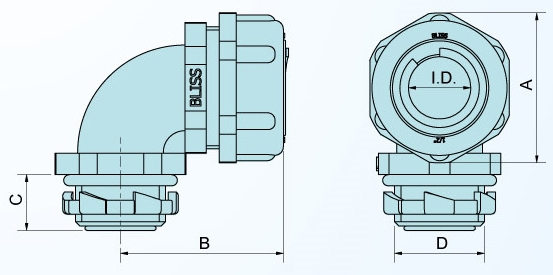

Specification

Catalog number	Trade size (inch)	I.D. (mm)	A (mm)	B (mm)	C (mm)	D (mm)	Thread	Packing (pcs)
L21020300	3/8"	11.5	29.0	39.0	11.5	21.0	PF 1/2	50
L21020400	1/2"	14.5	35.0	39.0	12.5	21.0	PF 1/2	50
L21020600	3/4"	19.5	42.0	45.0	17.5	26.4	PF 3/4	25
L21021000	1"	25.0	48.5	57.0	18.0	33.3	PF 1	25
