Liquid Tight Connectors

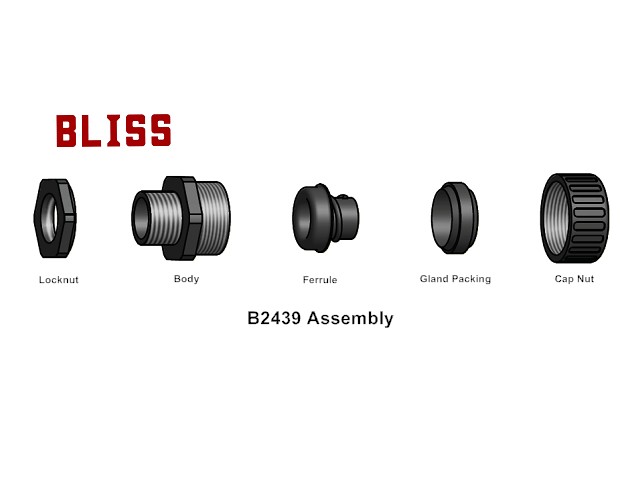

Straight Nylon Connector - PF Thread
B2439
Features:
* Polyamide 6 (PA6) (Nylon 6), meet UL 94 V2.
* PF thread.
* Light
* Weather resistant.
* For corrugated liquidtight flexible metal conduit like type A2017,
A2018.
* Temperature range: -10°C~+120°C.
* IP65.
* Color: black, gray
* RoHS & REACH compliant
* 90 angle type L2439 is available.

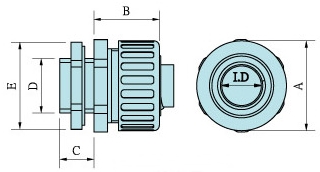

Specification
| Catalog number Black |
Catalog number Grey |
Trade size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Thread | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|
| B24390300 | B25390300 | 3/8" | 10.5 | 28.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 100 |
| B24390400 | B25390400 | 1/2" | 13.5 | 33.0 | 23.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 100 |
| B24390600 | B25390600 | 3/4" | 18.5 | 39.0 | 28.0 | 13.0 | 26.4 | 40.0 | PF 3/4 | 50 |
| B24391001* | B25391001* | 1" | 25.0 | 46.0 | 31.0 | 15.0 | 33.0 | 47.5 | PF 1 | 50 |
| B24391201* | B25391201* | 1-1/4" | 33.5 | 55.5 | 33.0 | 17.0 | 41.9 | 55.5 | PF 1-1/4 | 25 |
