Liquid Tight Connectors
90° Screw-in Connector - PF Thread

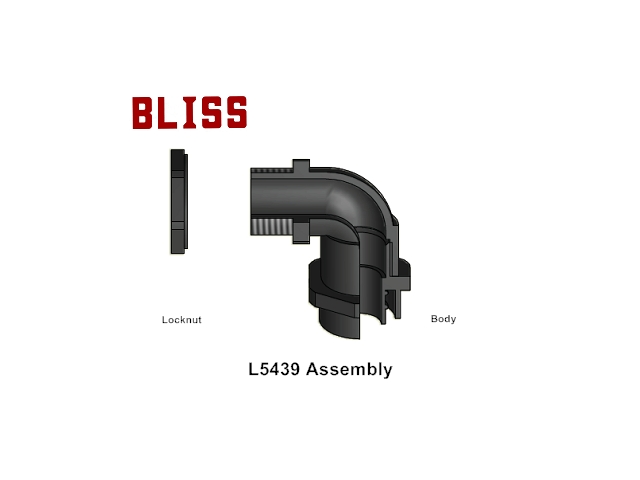

L5439
Features:
* Made by polyamide 6 (PA6) (Nylon 6), meets UL 94 V2.
* Ferrule integrated with body.
* PF thread
* Light, fast-installation.
* Weather resistant.
* For A2012, A2017, A2018 flexible metal conduit.
* Temperature range: -10°C~+120°C.
* IP50.
* RoHS & REACH compliant
* Straight type B5439 is available.

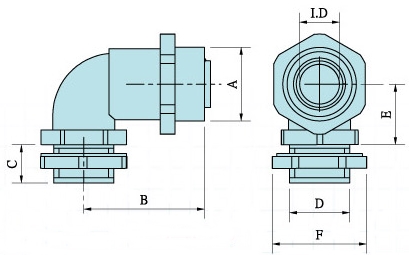

Specification
| Catalog Number | Trade size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
F (mm) |
Thread | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|---|
| L54390300 | 3/8" | 10.5 | 21.5 | 36.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 50 |
| L54390400 | 1/2" | 13.5 | 25.0 | 36.0 | 13.0 | 21.0 | 20.0 | 32.0 | PF 1/2 | 50 |
| L54390600 | 3/4" | 18.5 | 31.0 | 41.5 | 13.0 | 26.4 | 25.0 | 40.0 | PF 3/4 | 25 |
