Products

Liquid Tight Connectors

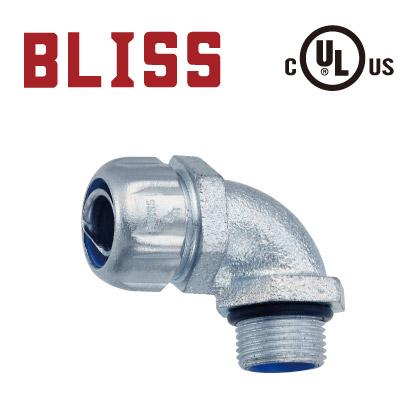

UL/cULus Liquid Tight 90° Connector - Metric Thread
L2141

Bliss Yih is a professional manufacturer of flexible conduit connectors. Our flexible conduit connectors are also UL/cULus listed, and offer best performance with our flexible conduits such as UL listed A2066 and CSA listed A2167. We offer various flexible conduit connectors, such as straight conduit connectors, 45 degree conduit connectors and 90 degree conduit connectors. Also, we are capable of producing conduit connectors with different thread types. Type B2141 is with metric thread. For the thread types, please see Appendix 5: Thread Data.

Features:
* Malleable iron or ductile cast iron, zinc plated.
* For liquid-tight flexible metal conduit.
* Metric thread

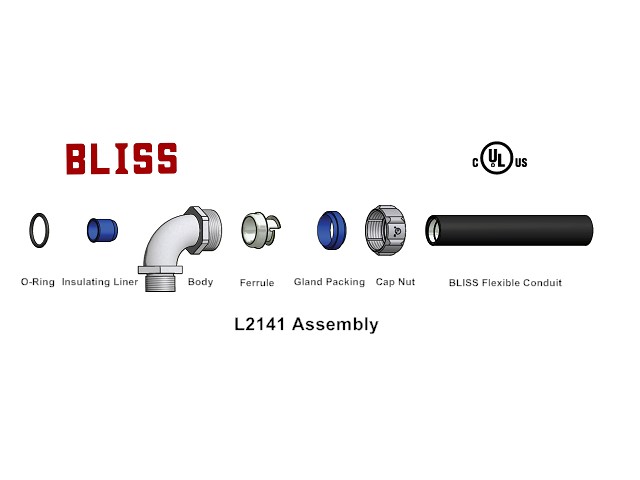

* Furnished with O-ring and insulating liner
* No locknut attached (optional).
* Straight type B2141 and 45 degree type N2141 are available.
* According to NEC 350.6,LFMC and associated fittings shall be
listed. Applicable to hazardous (classified) location CLass 1
Division 2; Class 2 Division 1,2; Class 3 Division 1,2. UL liquid
tight flexible metal conduit type A2066, R2066, S2066.
* IP67.
* RoHS & REACH compliant.

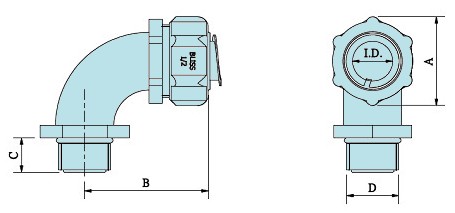

Specification

L2141

Catalog Number  Trade Size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)
Thread Packing (pcs)
L21410316** 3/8" 11.5 29.0 40.0 12.5 16.0 M16 x 1.5 50
L21410320 3/8" 11.5 29.0 40.0 14.5 20.0 M20 x 1.5 50
L21410420 1/2" 14.5 34.5 45.0 14.5 20.0 M20 x 1.5 50
L21410625 3/4" 19.5 41.5 53.0 16.0 25.0 M25 x 1.5 25
L21411032 1" 25.0 46.0 59.0 19.5 32.0 M32 x 1.5 25
L21411240 1-1/4" 33.5 55.5 69.0 20.5 40.0 M40 x 1.5 15
L21411450 1-1/2" 38.5 63.2 77.0 24.5 50.0 M50 x 1.5 10
L21412063 2" 49.5 76.0 95.0 27.0 63.0 M63 x 1.5 10
** No insulating liner

Certificate:
  • UL/cULus certification - file no. E136208
    Applicable Standards:
    1. UL 514B
    2. CSA Standard: C22.2 No.18.3
    3. ANSI/NEMA FB1
    4. NMX-J-017-ANCE
    5. ANSI/NFPA 70 NEC Article 350
