Liquid Tight Connectors
Conduit Fitting - Threadless Combination Coupling

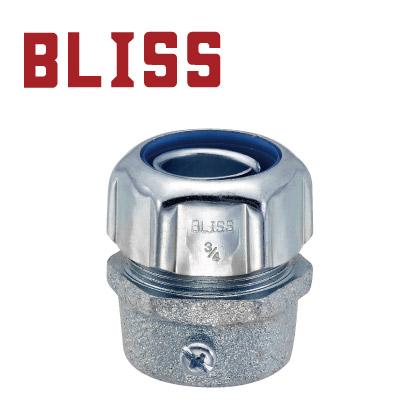

P2101

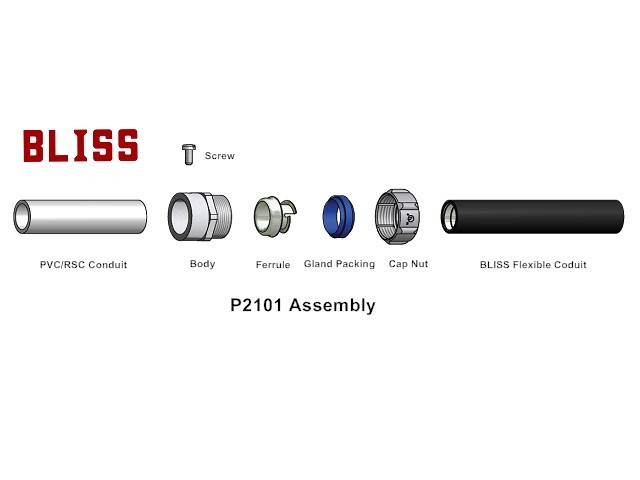

Flexible conduit fitting type P2101 is threadless, and suitable for combining with RSG/PVC conduit and electrical flexible conduit.


Features:
* Malleable iron or ductile cast iron, zinc plated.
* Die cast zinc P2102 is available.
* For connecting RSC/PVC conduit with flexible conduit.
* Threadless, furnished with screw.
* E2101 is for connecting EMT with flexible conduit.
* IP67
* RoHS & REACH compliant.
* UL listed connectors B2101, L2101, N2101, B2141, L2141,
N2141, B2161, L2161, N2161, B2182 (die cast zinc) are
available.
* Applicable for liquid-tight flexible conduits type:
A2066 Flexible Conduit - Liquid Tight Flexible Steel Conduit (UL
Listed)
A2067 Flexible Conduit - Liquid Tight Flexible Steel Conduit (EF
Type)
A2017 Flexible Conduit - Liquid Tight Flexible Steel Conduit (BS
Type)
A2116 EMI/RFI Shielding Conduit - Liquid-tight EMI Shielding
Flexible Steel Conduit
A7207 Flexible Conduit - Liquid Tight EMI Shielding Flexible Steel
Conduit
A7217 Flexible Conduit - Liquid Tight EMI Shielding Flexible Steel
Conduit
A2167 Flexible Conduit - Liquid Tight Flexible Steel Conduit (CSA
Listed)-RoHS

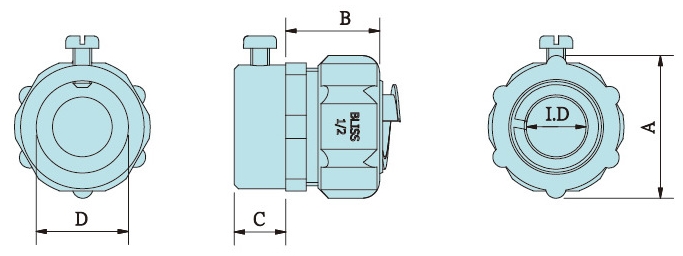

Specification

P2101

Catalog number Trade size
(inch)
I.D.
(mm)
A
(mm)
B
(mm)
C
(mm)
D
(mm)

RSG

CNS 2606-C4060

JIS C8305

PVC

CNS 1302-K3006

Packing (pcs)
P21010400  1/2" 14.5 34.5 22.5 12.5 22.4 G16 16 50
P21010600 3/4" 19.5 41.5 28.0 14.0 27.2 G22 20 50
P21011000 1" 25.0 46.0 31.5 17.5 34.5 G28 28 25
P21011200 1-1/4" 33.5 55.5 34.0 18.0 34.5 G36 35 25
P21011400 1-1/2" 38.5 63.2 36.5 21.5 48.6 G42 41 20
P21012000 2" 49.5 76.0 44.5 24.0 60.8 G54 52 10
P21012400 2-1/2" 60.0 99.2 58.5 33.5 76.8 G70 65 1
P21013000 3" 75.0 118.3 60.5 35.0 90.0 G82 80 1
P21014000 4" 97.0 145.3 58.0 38.0 115.0 G104 100 1
