Liquid Tight Connectors
Screw-in Connector - PF Thread

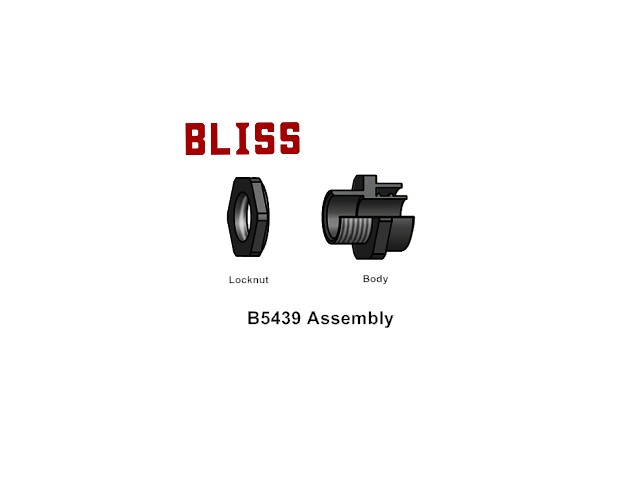

B5439
Features:
* Polyamide 6 (PA6) (Nylon 6), meets UL 94 V2.
* Ferrule integrated with body.
* PF thread.
* Light, fast-installation.
* Weather resistant.
* For type A2012, A2017, A2018.
* Temperature range: -10°C~+120°C.
* IP50.
* RoHS & REACH compliant
* 90 angle type L5439 is available.

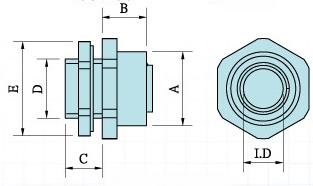

Specification
| Catalog Number | Trade Size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
E (mm) |
Thread | Packing (pcs) |
|---|---|---|---|---|---|---|---|---|---|
| B54390300 | 3/8" | 10.5 | 21.5 | 15.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 100 |
| B54390400 | 1/2" | 13.5 | 25.0 | 15.0 | 13.0 | 21.0 | 32.0 | PF 1/2 | 100 |
| B54390600 | 3/4" | 18.5 | 31.0 | 18.0 | 13.0 | 26.4 | 40.0 | PF 3/4 | 50 |
