Liquid Tight Connectors
Threadless Combination Coupling
E2102
Suitable for the combination of EMT conduit and elextric flexible conduit.
Features:
* Die cast zinc (zinc alloy), zinc plated.
* E2101 is Malleable iron or ductile cast iron.
* Threadless, furnished with screw.

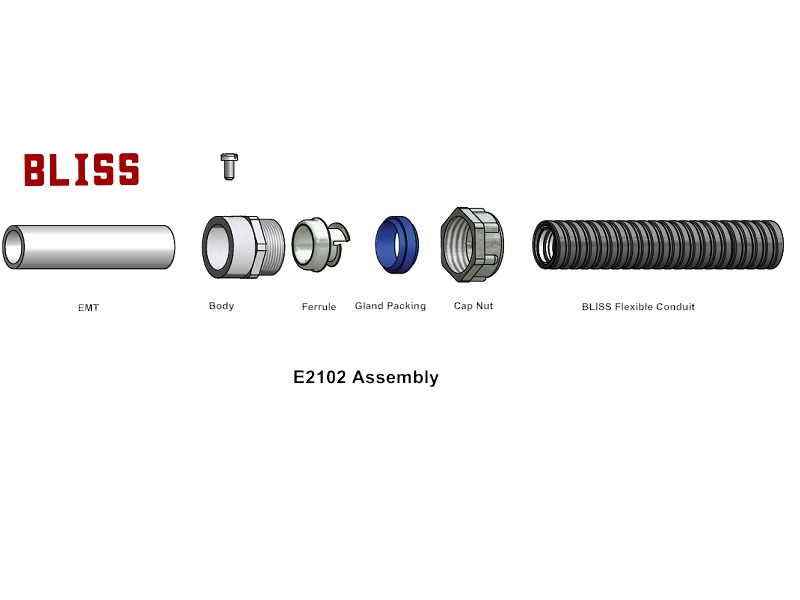

* For connecting EMT with flexible conduit.
* P2102 is for connecting RSC/PVC conduit with flexible conduit.
* IP67.
* RoHS & REACH compliant.
* Other die cast zinc liquid tight connectors: B2102, L2102,
C2102, B2182, B2142 are available.

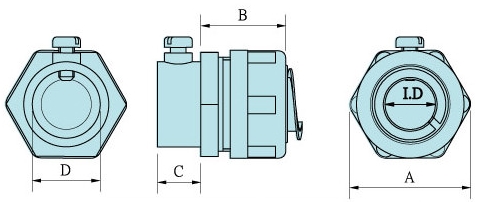

Specification
| Catalog number | Trade size (inch) |
I.D. (mm) |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
EMT CNS 2606-C4060 JIS C8305 |
Packing (pcs) |
|---|---|---|---|---|---|---|---|---|
| E21020400 | 1/2" | 14.5 | 35.0 | 22.0 | 10.5 | 19.6 | E19 | 50 |
| E21020600 | 3/4" | 19.5 | 42.0 | 27.0 | 14.0 | 25.9 | E25 | 50 |
| E21021000 | 1" | 25.0 | 48.5 | 31.0 | 15.5 | 32.3 | E31 | 25 |
| E21021200 | 1-1/4" | 33.5 | 59.0 | 34.5 | 18.0 | 38.6 | E39 | 25 |
| E21021400 | 1-1/2" | 38.5 | 68.0 | 36.5 | 21.5 | 51.3 | E51 | 20 |
| E21022000 | 2" | 49.5 | 82.5 | 43.0 | 24.0 | 64.0 | E63 | 10 |
* 2-1/2"~4": E2102 same as P2102
